DESCRIPTION

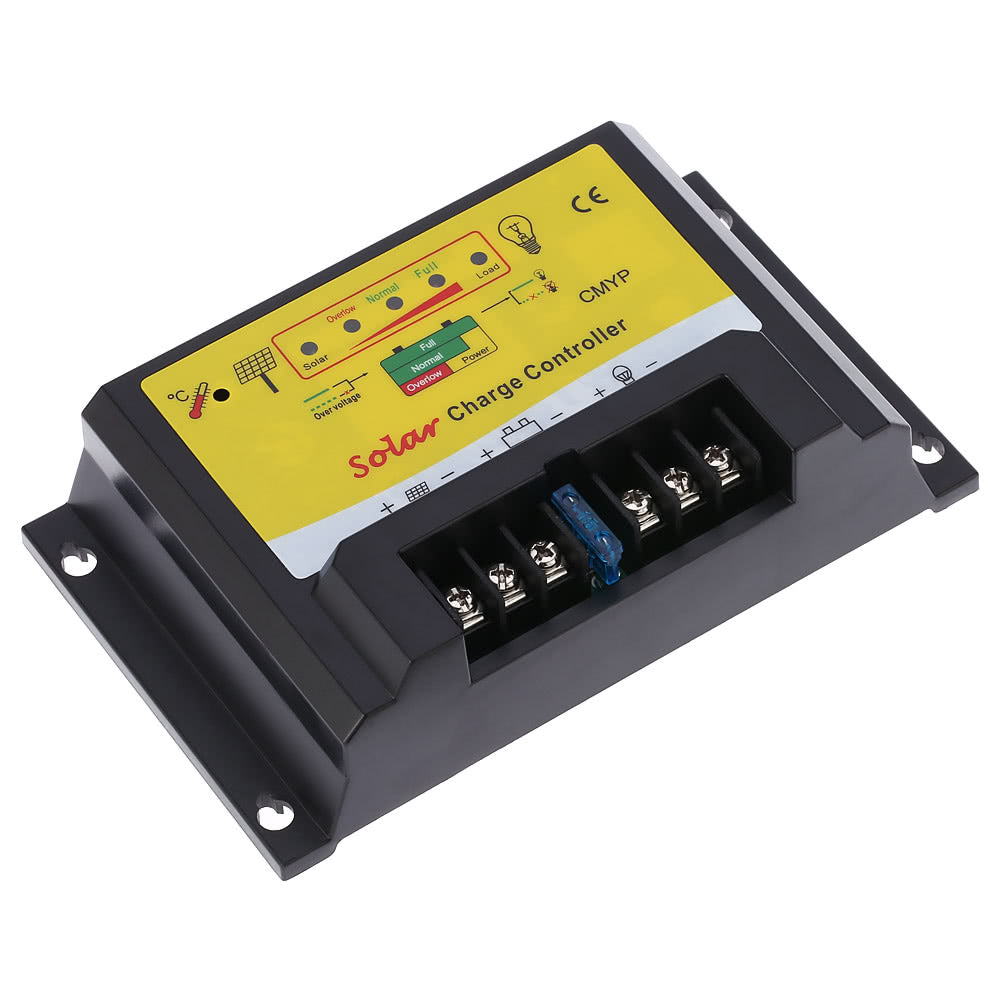

This series of solar charge controller is a kind of intelligent, multi-functional solar charge and discharge controller. It makes the whole solar system work efficiently and safely.
Features:
Use a single-chip microcomputer control to achieve the intelligent, strong adaptability, reliable function.
PWM charge mode can improve system efficiency and prolong the life span of the battery.
12/24V DC (auto work).
With LED indicator to show the current battery state.
Use exposed wiring terminal, which makes the wiring more convenient.
Short-circuit/over-load/under-voltage/over-charge/over-discharge/reverse polarity protection, automatic control and so on.
Accurate temperature compensation function.
Suitable for street and pathway lighting, parking area, bus station, etc.
Specifications:
Color: Black;
Material: Plastic;
Rated Charge/Discharge Current: 10A / 20A(Optional);
Rated Voltage: 12/24V Auto;
Over-load, Short-circuit Protection: 1.5 Times by Rated Current;
Short-circuit Recovery Time: 3s;
Empty Load Consumption: 0.05W;
Charge Circuit Voltage Drop: ≤0.20V;
Discharge Circuit Voltage Drop: ≤0.15V;
Over-voltage Protection: 16V; *2/24V;
Float Charge Voltage: 14.7V; *2/24V;
Discharge Recovery Voltage: 12.2V; *2/24V;
Over-discharge Voltage: 10.5V; *2/24V;
Voltage Accuracy: ±3%;
Control Mode: PWM;
Operation Temperature: -35°C~55°C;
Item Size: 165 * 100 * 40mm / 6.5 * 3.94 * 1.57in(L * W * H);
Item Weight: 226g / 7.97oz;
Package Size: 17 * 11 * 5cm / 6.7 * 4.33 * 1.97in(L * W * H);
Package Weight: 274g / 9.69oz;
Package List:
1 * Solar Charge Controller;
1 * User Manual
