DESCRIPTION
Warmly NOTE:
The ORANGE color board will be converted to a RED color board,
During the period of version replacement, random delivery. (board color does not affect the function).
What is it:

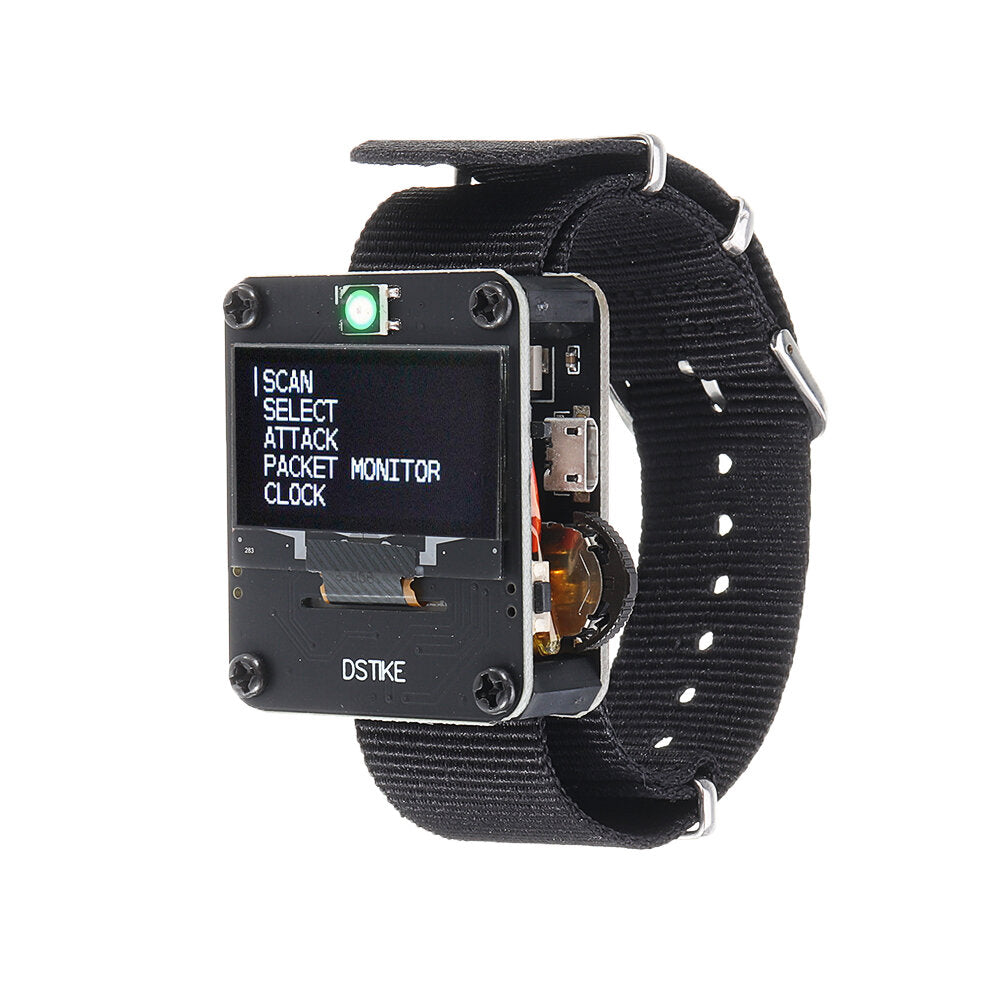

1. Deauther Watch is still an ESP8266 development board, but you can wear it like a smartwatch.
2. This ESP8266 development board comes with a 600mAh battery, OLED display and a 3-way momentary slide switch.
3. It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.
Please note that the ESP8266 does only support 2.4GHz. For more details on the software.
You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.
GPIOs and hardware info:
Display: SH1106 1.3" OLED;
Display SDA: GPIO 5 (D1);
Display SCL/SCK: GPIO 4 (D2);
WS2812b LED: GPIO 15 (D8);
Button Up: GPIO 12;
Button Down: GPIO 13;
Button Select: GPIO 14;
High Light LED: GPIO 16;
Side Button: GPIO0,GPIO2,RST;
Why did you make it:
I designed this development board especially for Spacehuhn's great project: ESP8266 Deauther.
What makes it special:
Only 80mA power usage;
Up to around 7 hours work time;
200 mA charging current;
Indicate charging LED (Red means charging, off means full);
Included 8dB antenna and 2dB antenna;
Power Switch (Strongly recommend turn it off when charging);
Protection: short, overcharging, over discharging, temperature;
Usage:
You can use it with the display and buttons.
You can also connect to "pwned" with the password "deauther" and use the web interface.
If you lost the password you can reset it.
Disclaimer:
Use it only for testing and educational purposes against your own devices! I don't take responsibility for what you do with it.
Please check the legal regulations for your country to make sure you don't violate any laws.
Specs and Docs:
CP2102 Driver Download.
Source Code.
Documentation.
Design Files.
Package Included:
1 x Orange/Black Deauther Wristband /Deauther Watch ESP8266 Development Board.
