DESCRIPTION
Description:

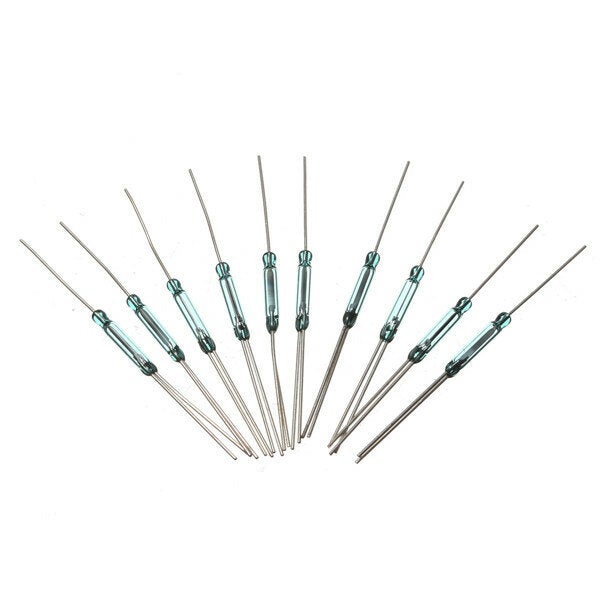

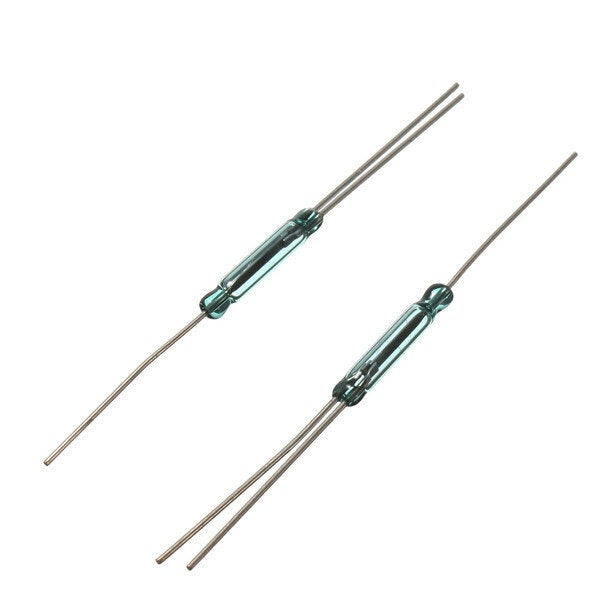

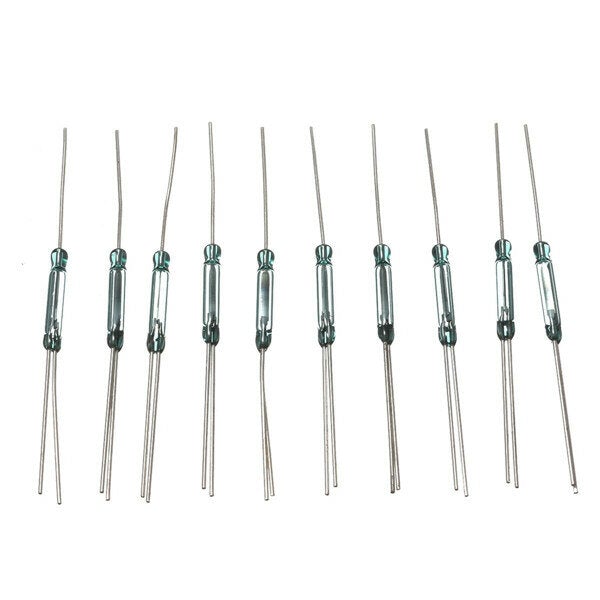

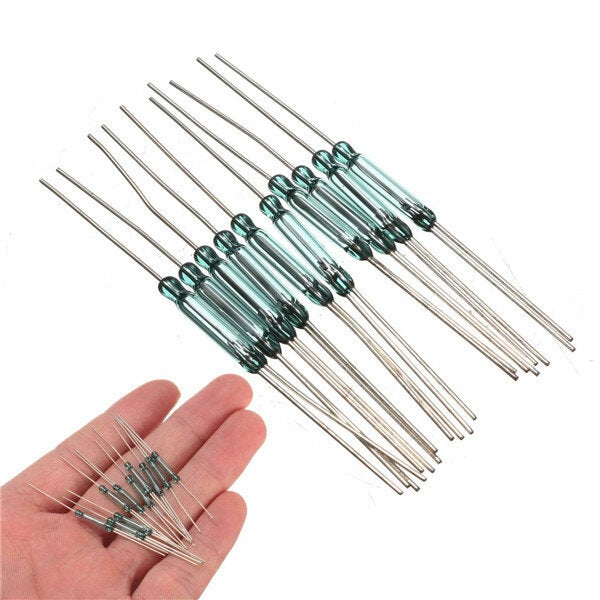

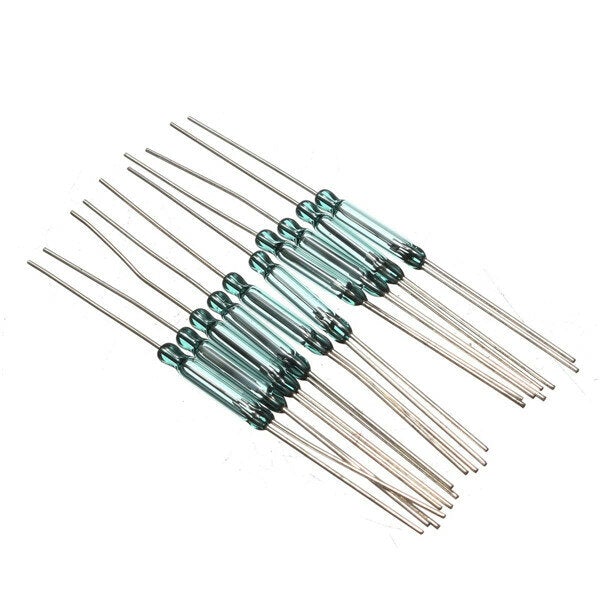

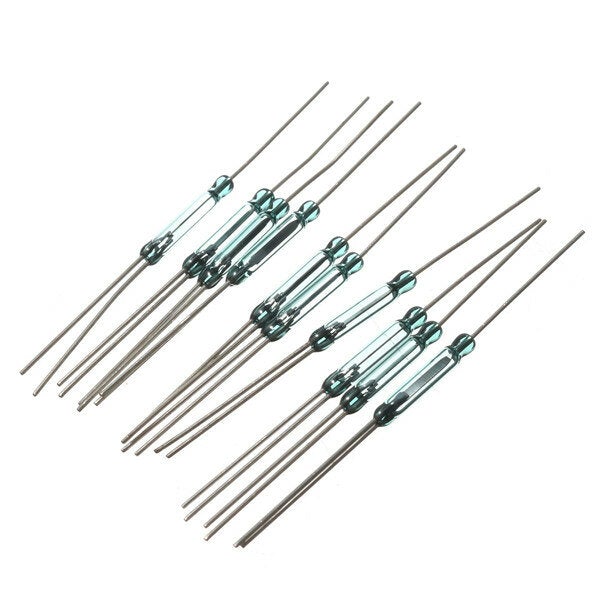

10pcs N/O N/C SPDT Magnetic Switch Reed Switches 2.5x14mm Switch.
Specification:
Switching power(max):5W;
DC switching voltage(max):175V;
AC switching voltage(max):125V;
DC switching current(max):400mA;
AC switching current(max):280mA;
Carry current DC, AC, effective value (max):0.5A;
Breakdown voltage (minimum):200V;
Contact resistance (initial maximum value):140mW;
Contact resistance (initial typical value):120mW;
Contact capacitance (max):0.8pF;
Release time (max):1ms (power on);
Bounce time (max):1.5ms (power on);
Working time (max):1ms (power on);
Working range:10-30AT;
Total length:53mm;
Glass size:14x2.5mm.
Package Included:
10 x Reed Switches
