DESCRIPTION
Description:
Model:1/10;
Speed:15km/h;
Power system ESC : RGT Brushed waterproof 60A;
MOTOR : Brushed RC550 17T;
Servo:15KG waterproof;

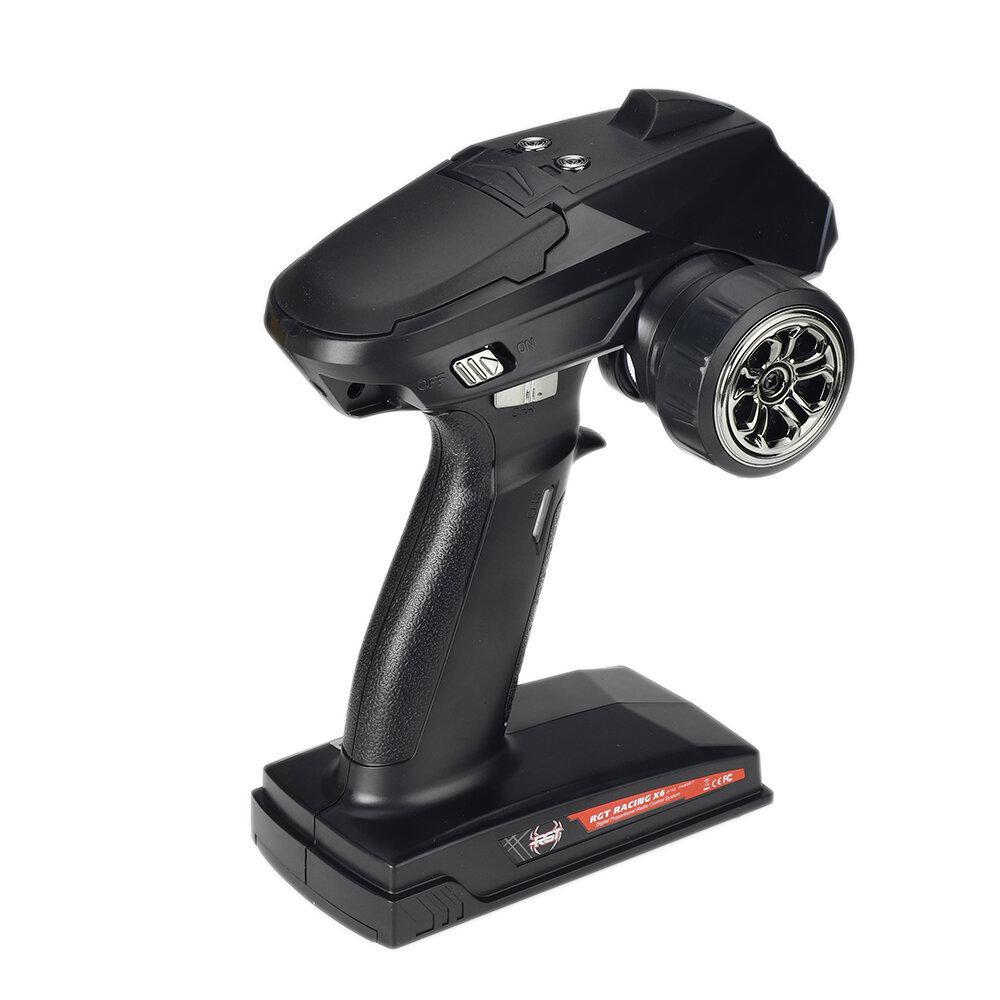

Transmitter Frequency:2.4GHZ 5CH;
Battery: 3XAA battery(not included);
Battery:Lipo 7.2V 2000MAH;
Charge time:4h;
Using time:8-15min;
Control distance:100m;
Function:forward,backward,left,right;
Proportional control:proportional contro;
Size:475X245X255mm;
Weight：2.48KG;
Wheelbase: 285mm;
Gear ratio：56.6:1 —33.3:1;
Feature:

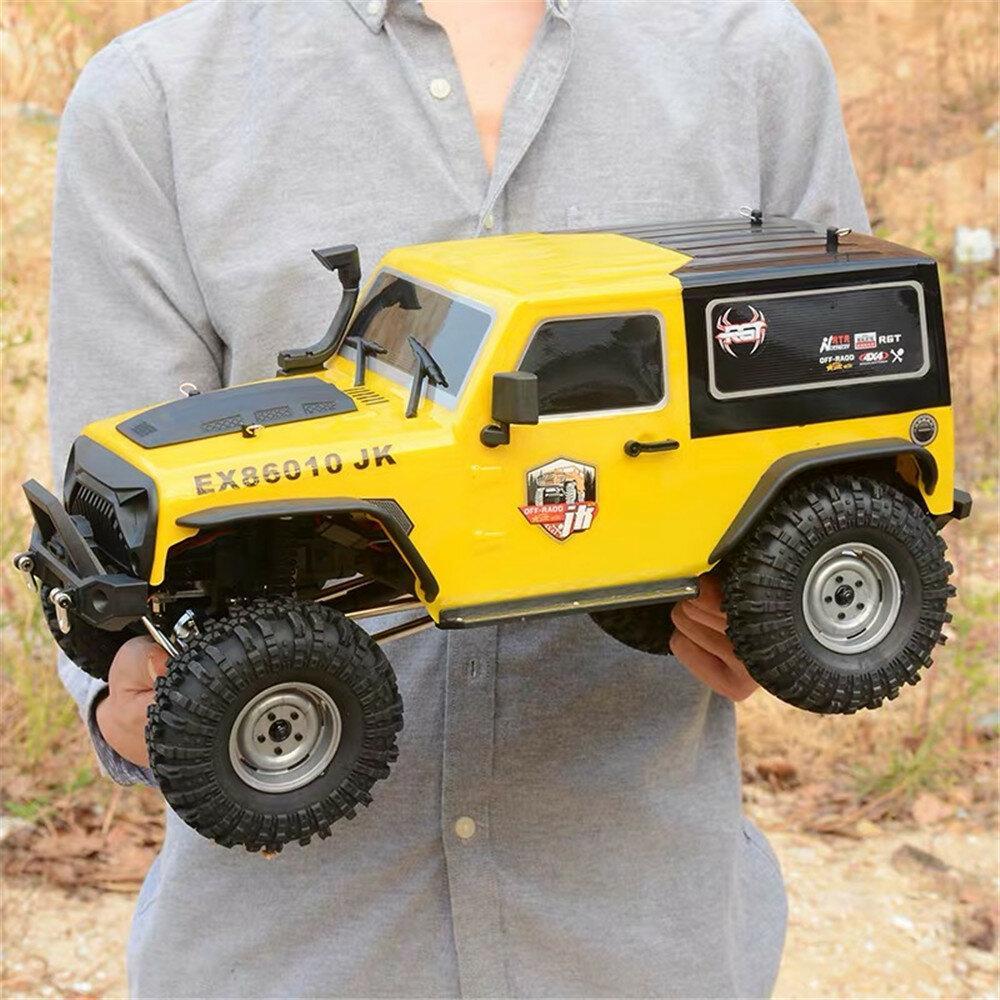

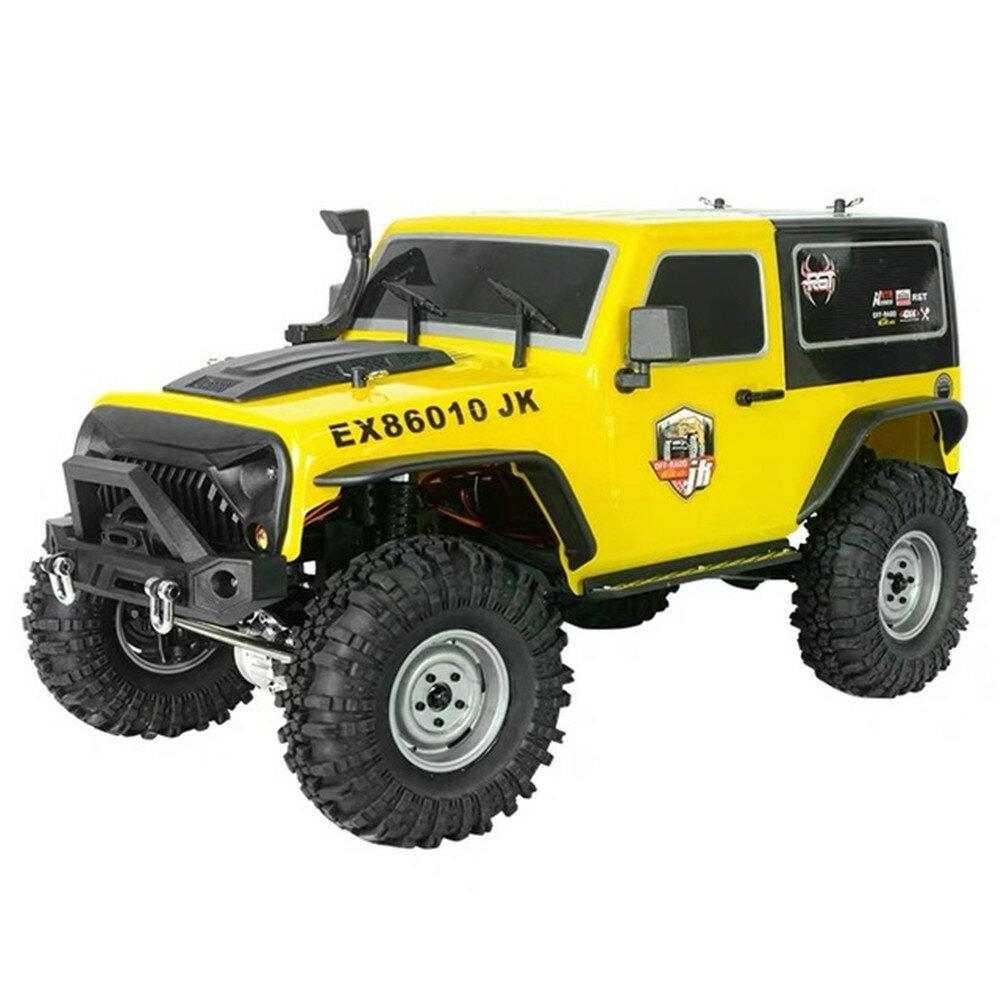

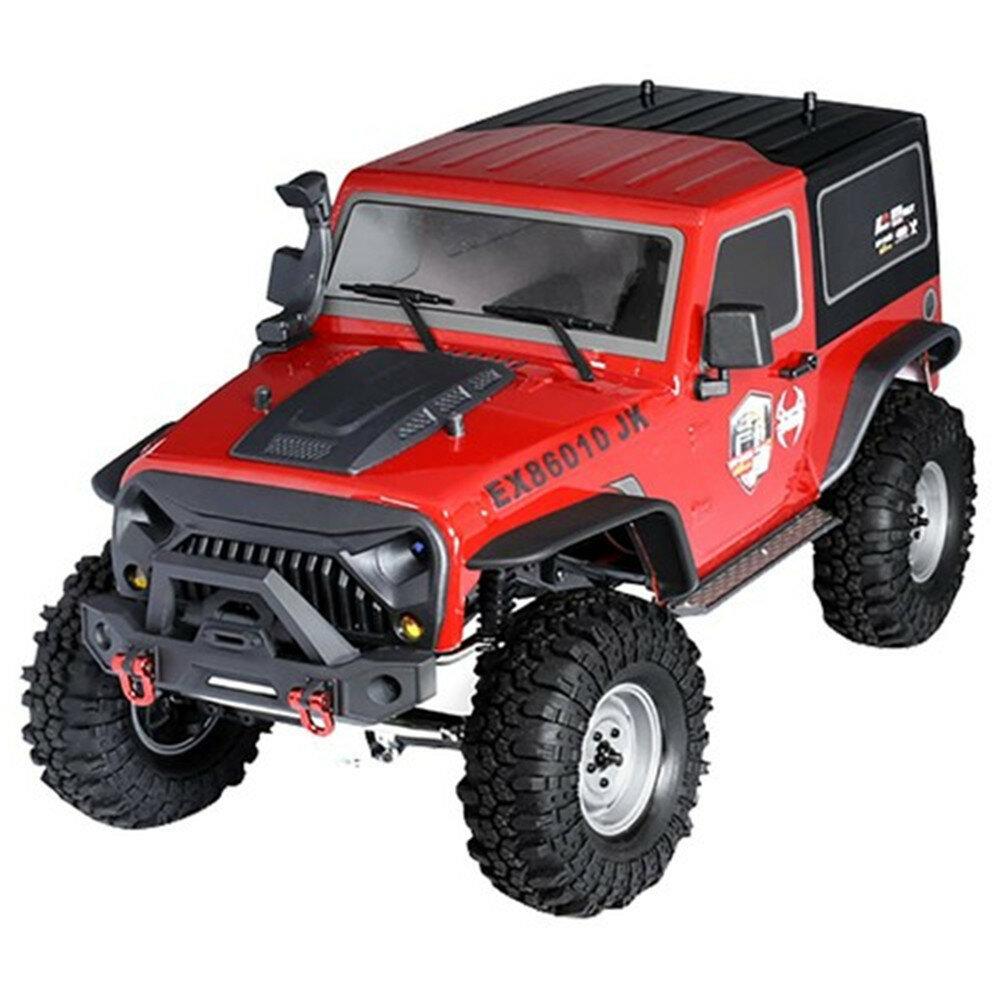

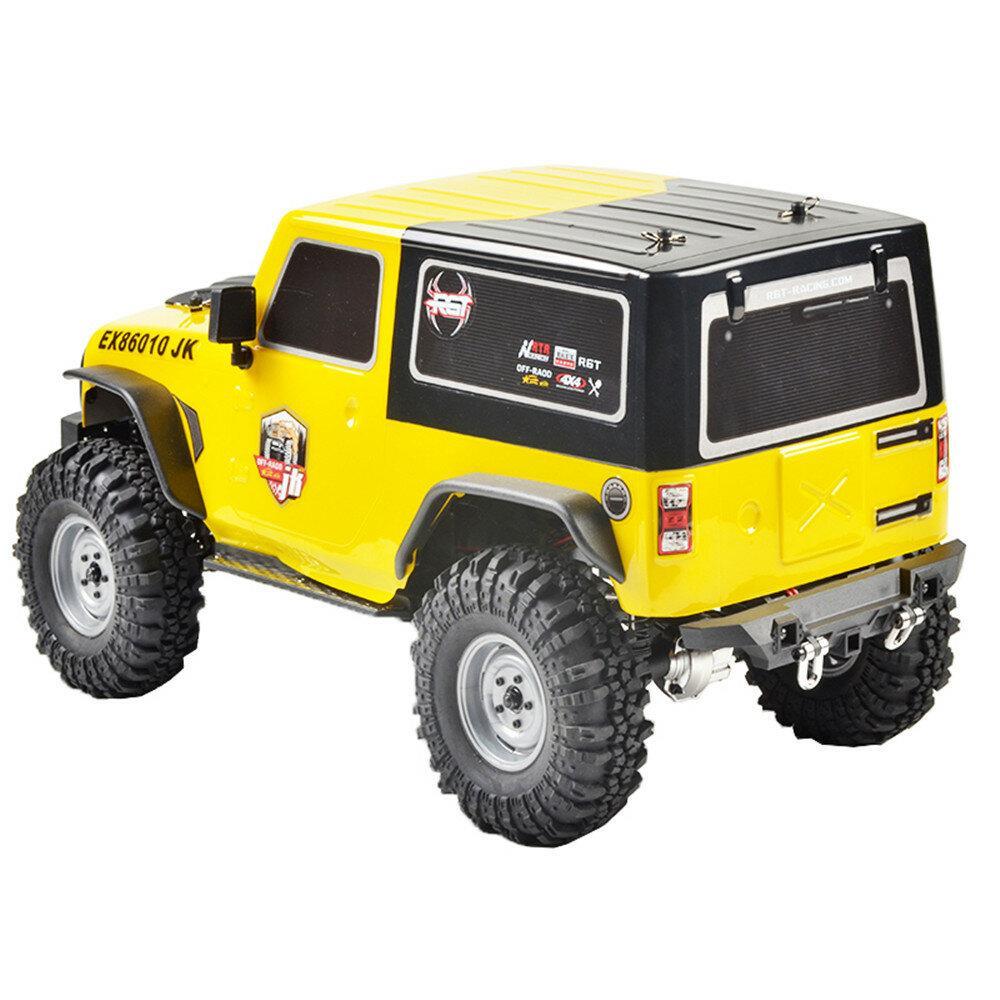

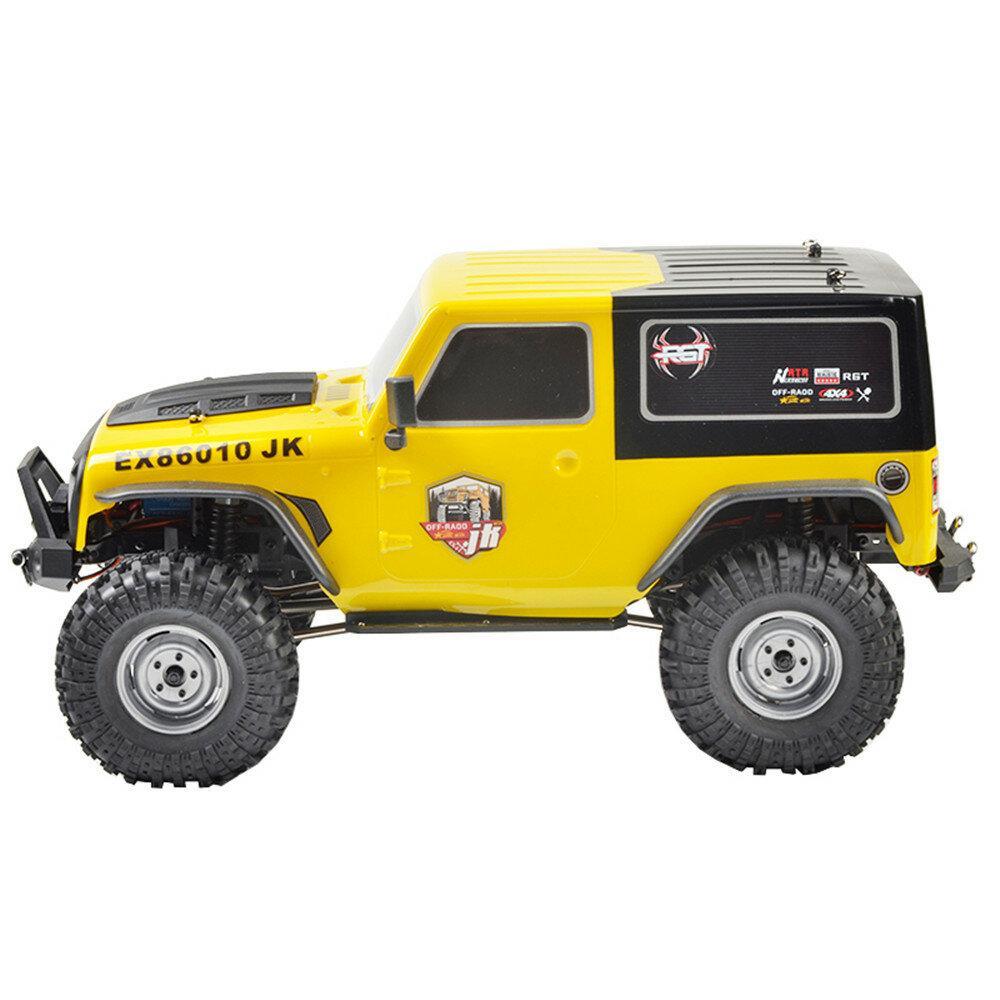

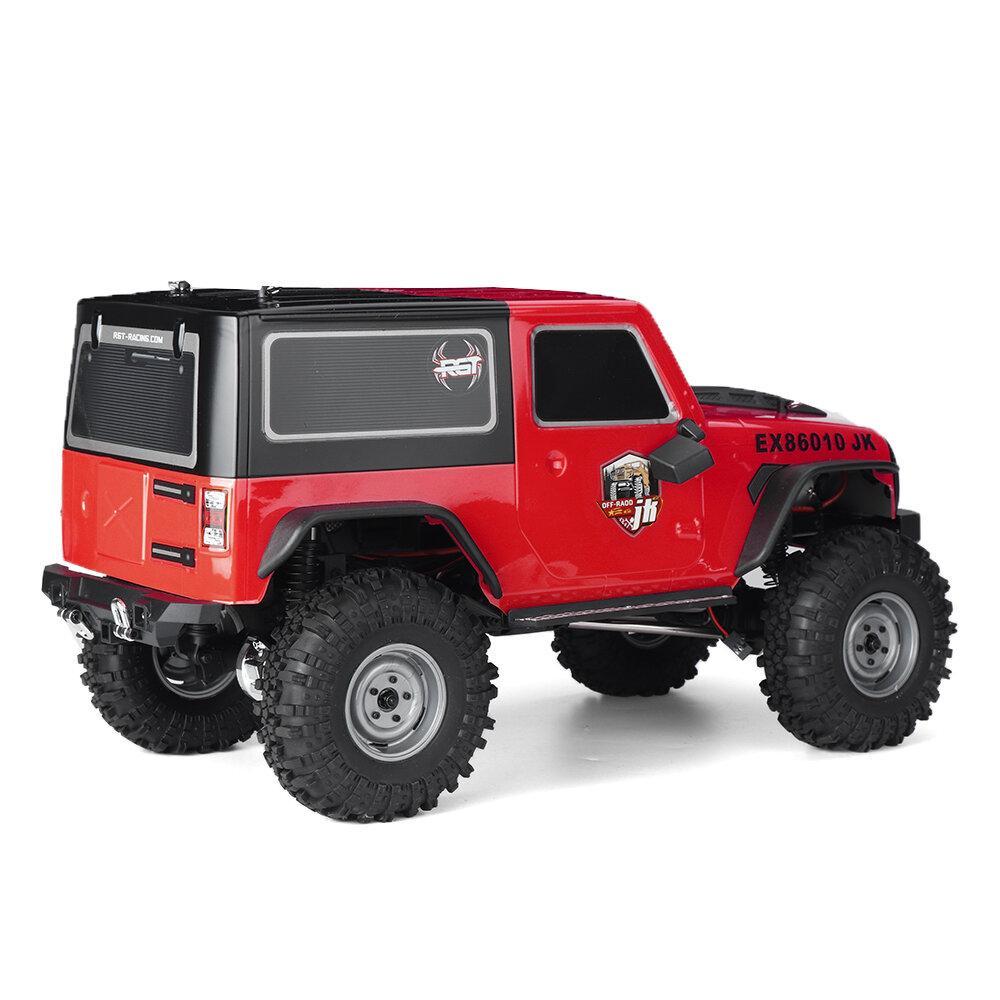

1/10 all-terrain four-wheel drive realistic off-road vehicle, is the vehicle that RGT team intend to launch this time.

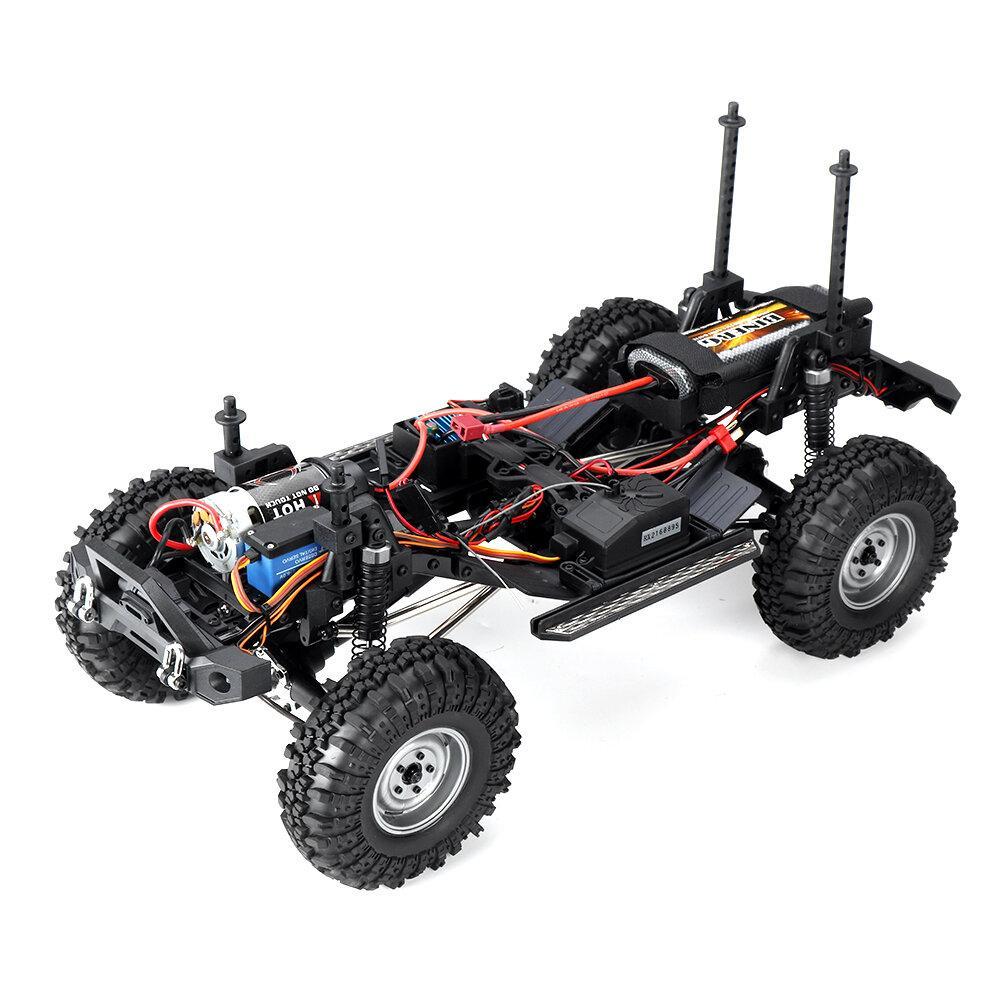

The JK optimize and shorten the wheelbase on the car (EX86110) platform, with the chassis structure basically unchanged. The CJ wheelbase is adjusted to 285mm, and the front bumper adopts metal anti-crash design. The winch mounting hole is reserved, which could realize the non-destructive installation. The whole car employ ball bearings, C-shaped steel beam chassis, and front and rear axle locking spools. The steering arm is designed with a high-position tie rod, which is matched with CVA steering of a high-strength ball cage, and can achieve a super-large steering angle of 41 degrees. Later on, an aluminum alloy upgrade steering arm with a 45-degree steering angle will be introduced by the factory. The JK have the motor front-mounted design, and split transmission and deceleration system. The main gear of the reducer comes with the slipper design, and the gears of the transmission system are all high-strength powder alloy gears, which solve the problem of the gear under the condition of super-strong resistance load.JKis still in RTR version for the players, equipped with 17T RC550 super-strong torque motor, RGT-60A waterproof ESC, 15KG high-torque waterproof servo, and 7.2V 2000MAH NiMH battery. The 4-channel remote controller is specially designed for Crawler, supporting the third channel control the light switch, and the forth channel control the winch retracting.

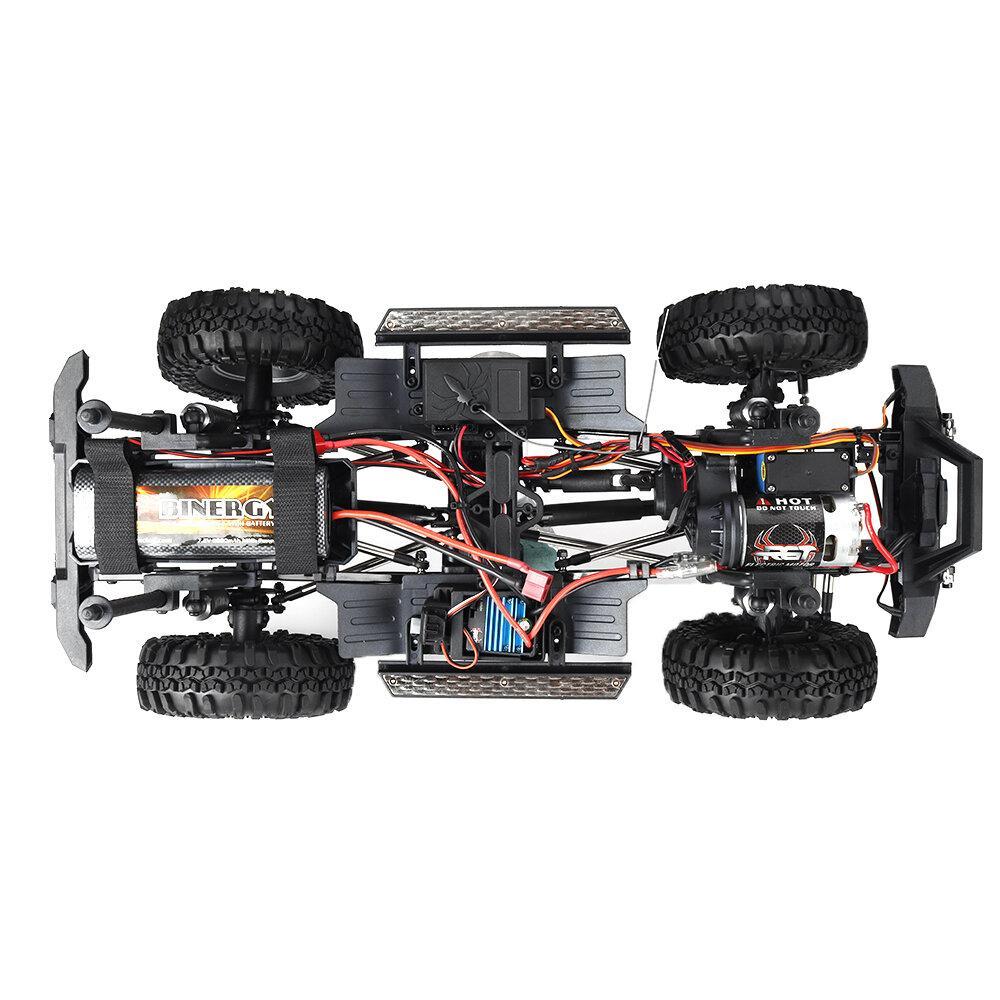

The chassis design is simple and clear, pursuing the rationality and convenience. To provide more practical and convenient for player, the wiring slot on the ESC installation Box and the Receiver Box are very special and easy for the player to add light lines and winch lines in future.
Note:
The spare tire is not included.

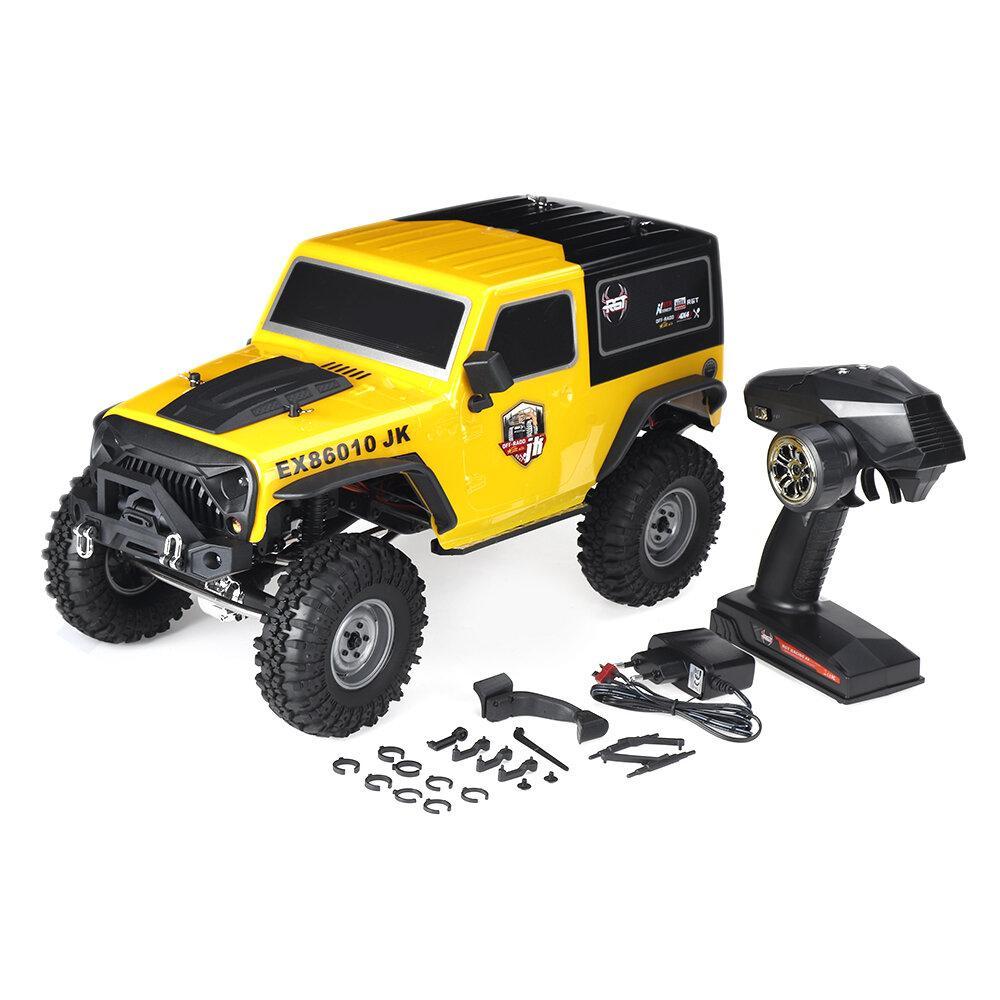

Package Included:
1*RC Car;
1*Controller;
1*Rechargeable battery(built-in);
1*Charger.
