DESCRIPTION
Features:
1. Six-in-one electrical parameter measurement: AC voltage, current, active power, frequency, power factor, electrical energy.
2. Power clear mode: press key to clear, automatically clear.

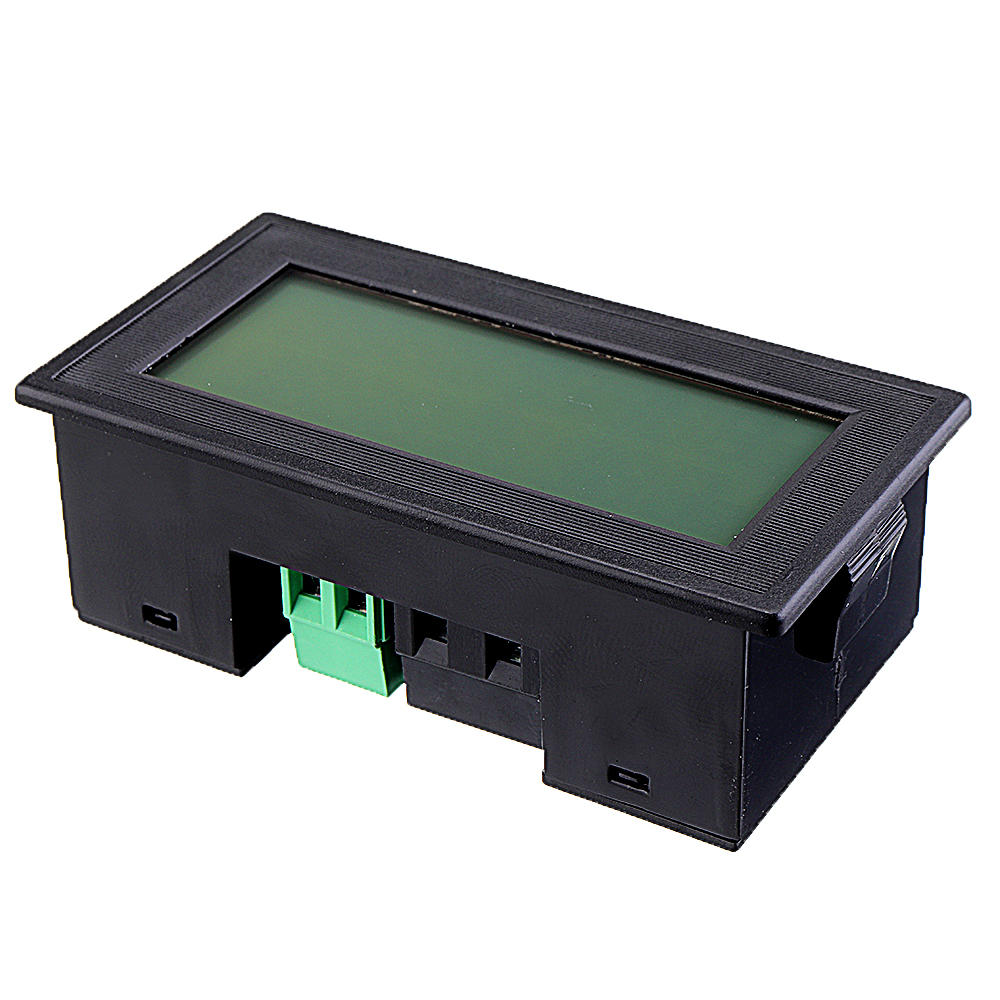

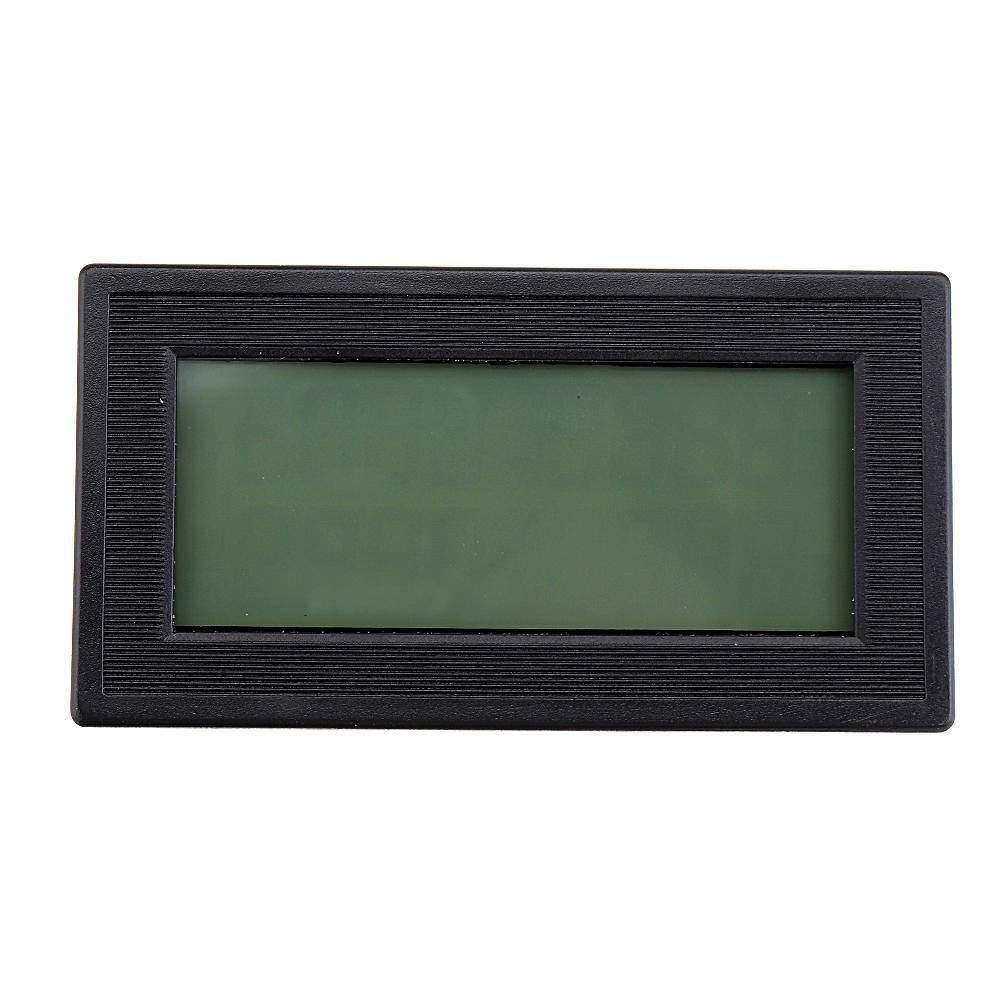

3. Display type: LCD display, blue backlight: one screen multi-display, a total of 7 display modes are available.
4. Blue backlight brightness adjustable: highlight, low light, no light.
5. The button inside the meter can calibrate the voltage, current error and other options.
6. Display value update speed is optional: fast, standard, slow, suitable for different working environments.
7. Display accuracy can be set: 3 digits, 4 digits: different requirements apply.
8. Power-down data saving function.
9. AC voltage, current, power and electric energy are all designed by automatic shift of decimal point.

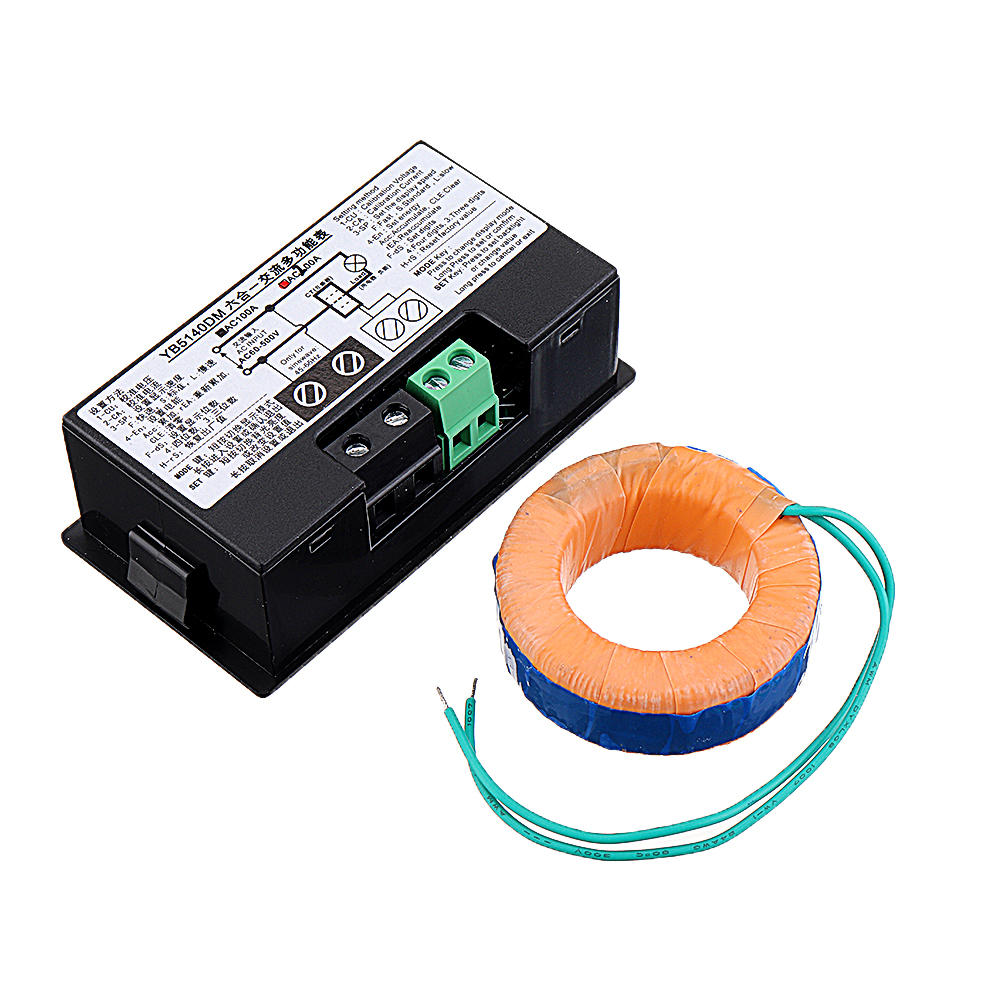

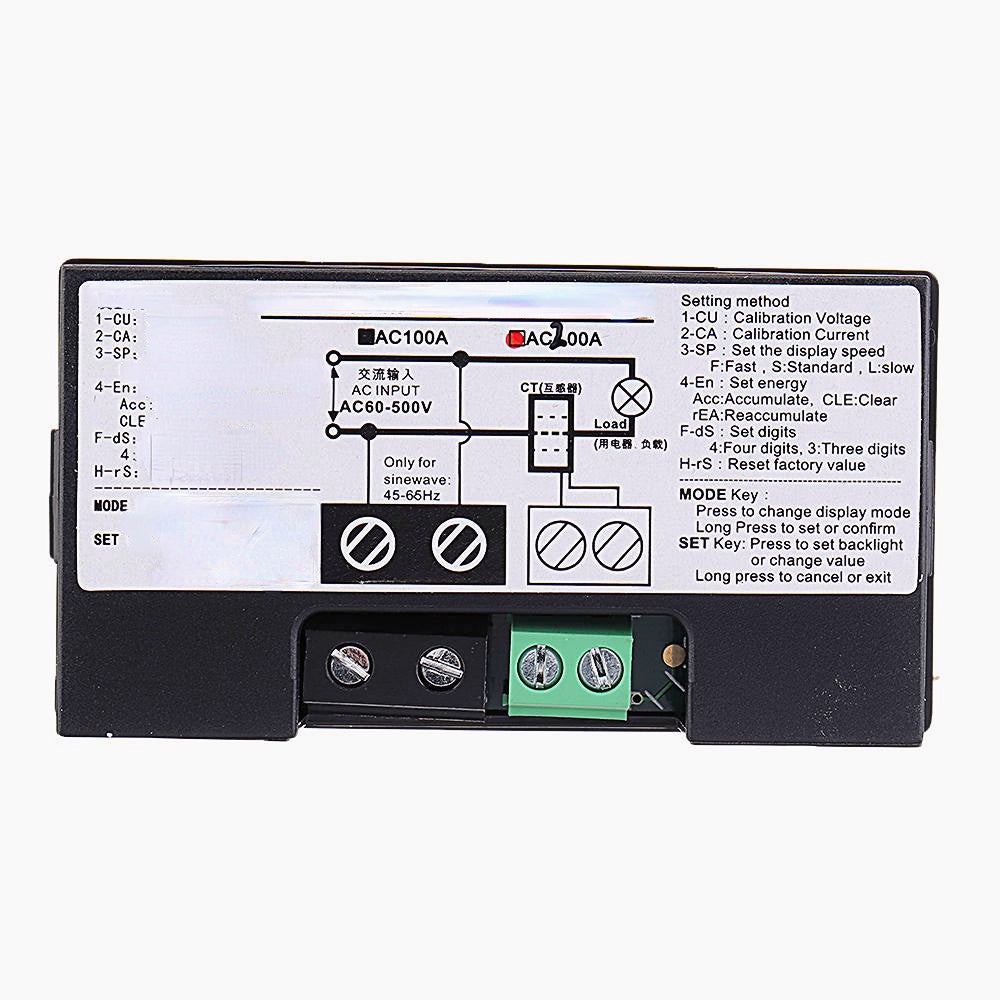

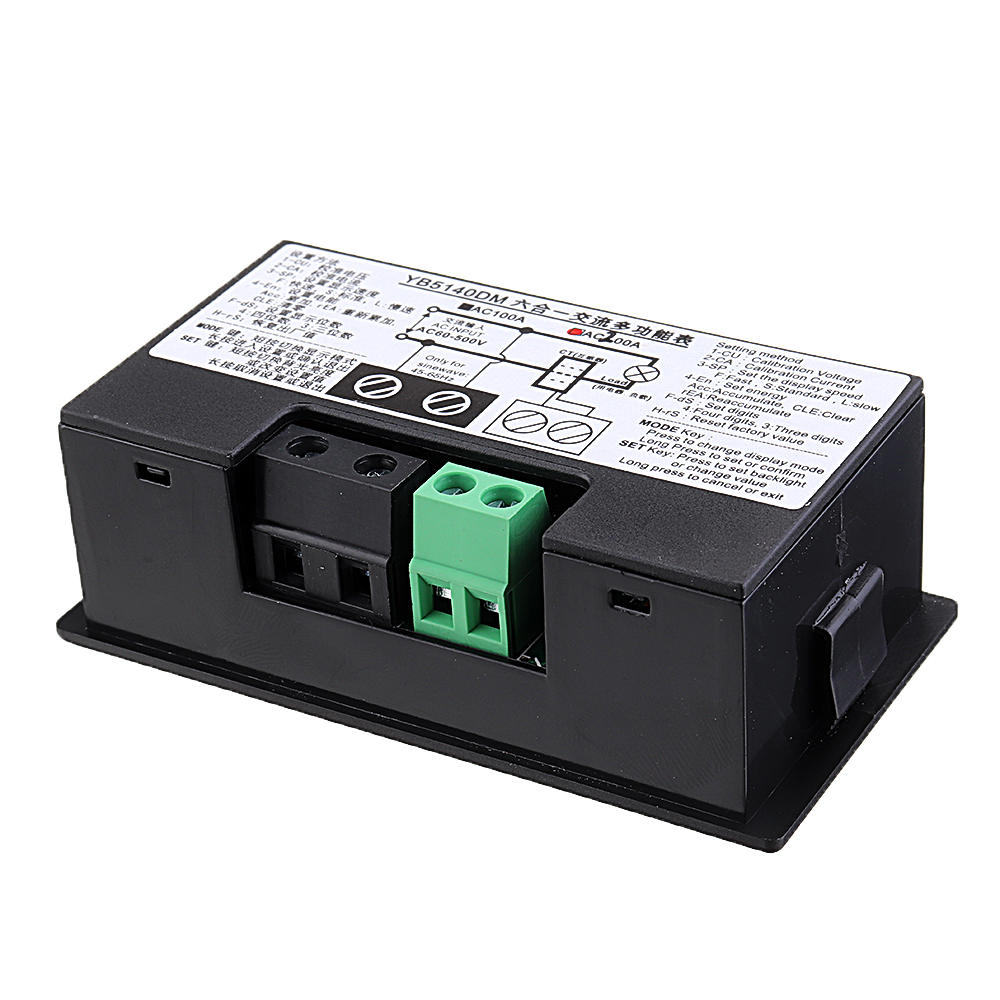

10. Simple wiring of the instrument: two wires in, two wires out: no need to connect additional power supply; current test does not need to purchase additional transformer or shunt, built-in high-precision shunt.
11. Dimensions: 79*43*26mm.
12. Installation opening size: 76*39.5mm.
Specification:
Voltage: AC60-500V, AC 60.00-500.0 V, <100V: 0.01V >100V: 0.1V, Automatic decimal shift.
Accuracy: 0.5% +/- 2 words.
Current: AC20A (direct test), AC 0.000-20.00 A, <10A: 0.001A >10A: 0.01A.

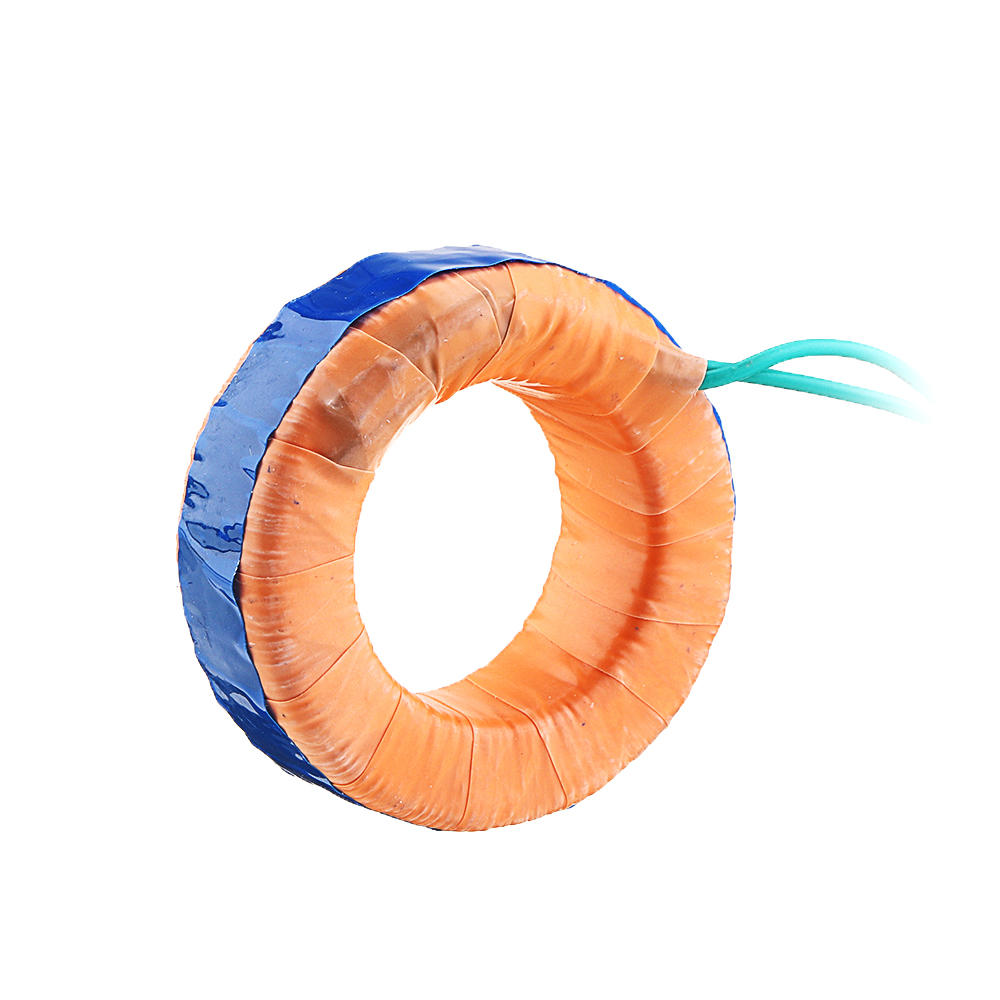

AC100A (instrument inner hole 16mm), AC 0.020-99.99 A, <10A: 0.001A >10A: 0.01A.
AC200A (instrument inner hole 26mm), AC 0.04-200.0 A, <100A: 0.01A >100A: 0.1A.
Active power: 00.0-9999 KW, 00.0-999.9W: 0.1W.
1000-9999W: 1W.
010.0 KW-999.9KW: 0.1KW.
>1000KW resolution is: 1KW, Automatic decimal shift.
Frequency: 45.00-65.00 Hz, 0.01 Hz.
Power factor: 0.000-1.000, 0.001.
Electric energy: 0.000-9999 KWh, 0.000-9.999 KWh: 0.001KWh.
10.00-99.99 KWh: 0.01KWh.
100.0 KWh - 999.9 KWh: 0.1KWh.
>1000 KWh: 1KW, Automatic decimal shift.
Extreme working conditions:
Working temperature: -10 ~ +50 ° C.
Working humidity: 10~80% (no condensation).
Working pressure: 80 ~ 106kPa.
Sunlight: no direct illumination.
Package includes:
1 x Meter
