DESCRIPTION
Description:

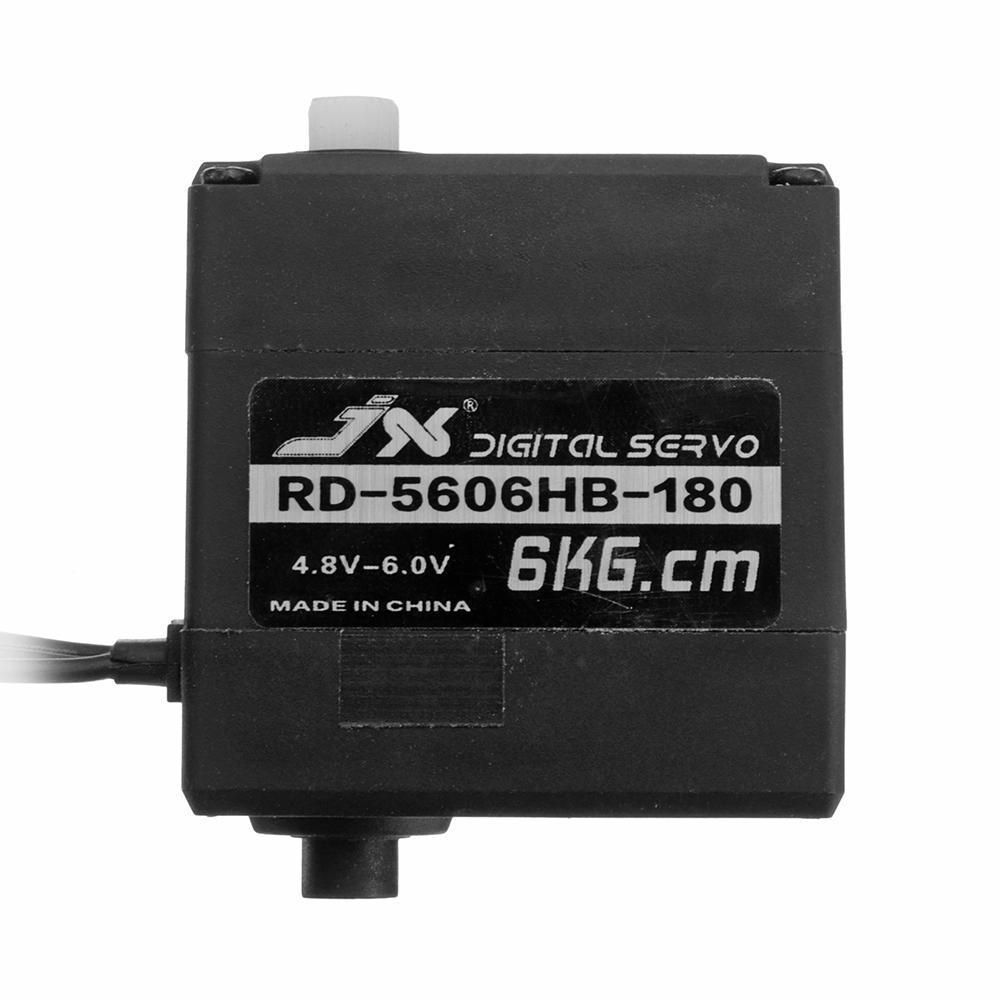

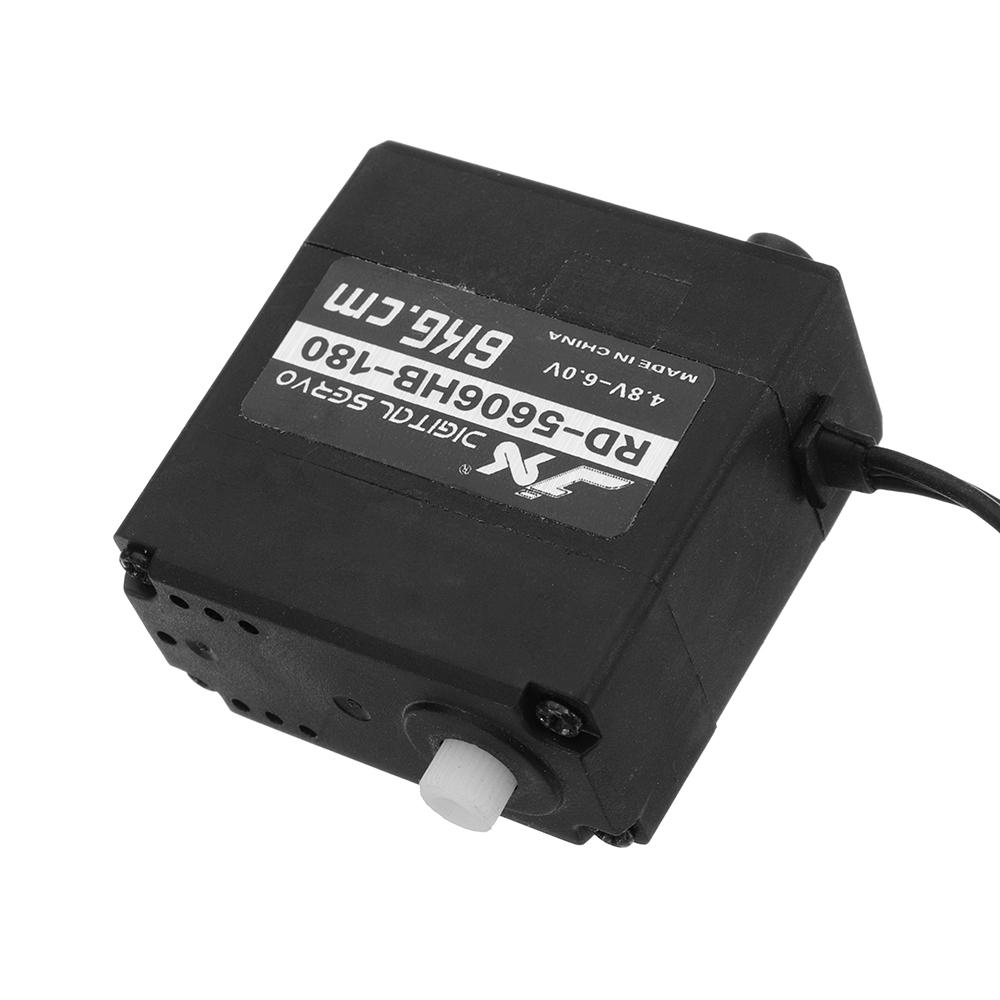

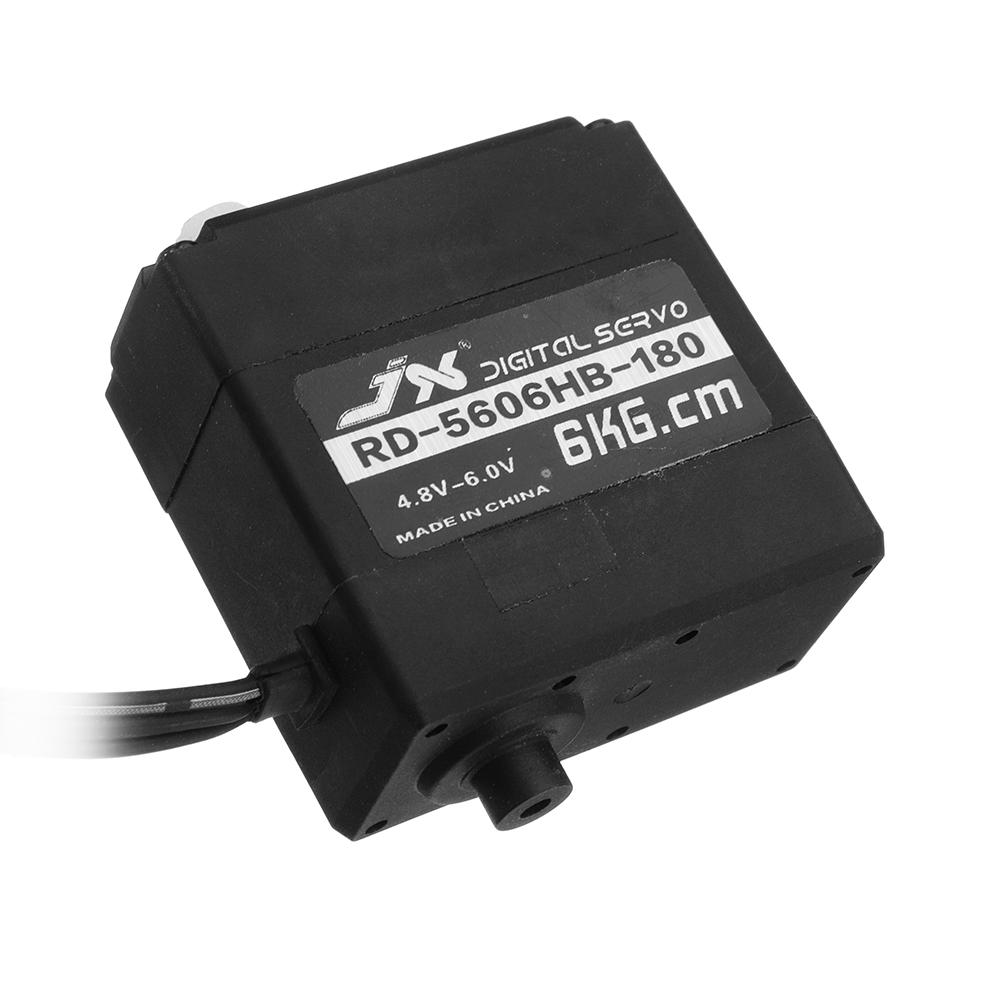

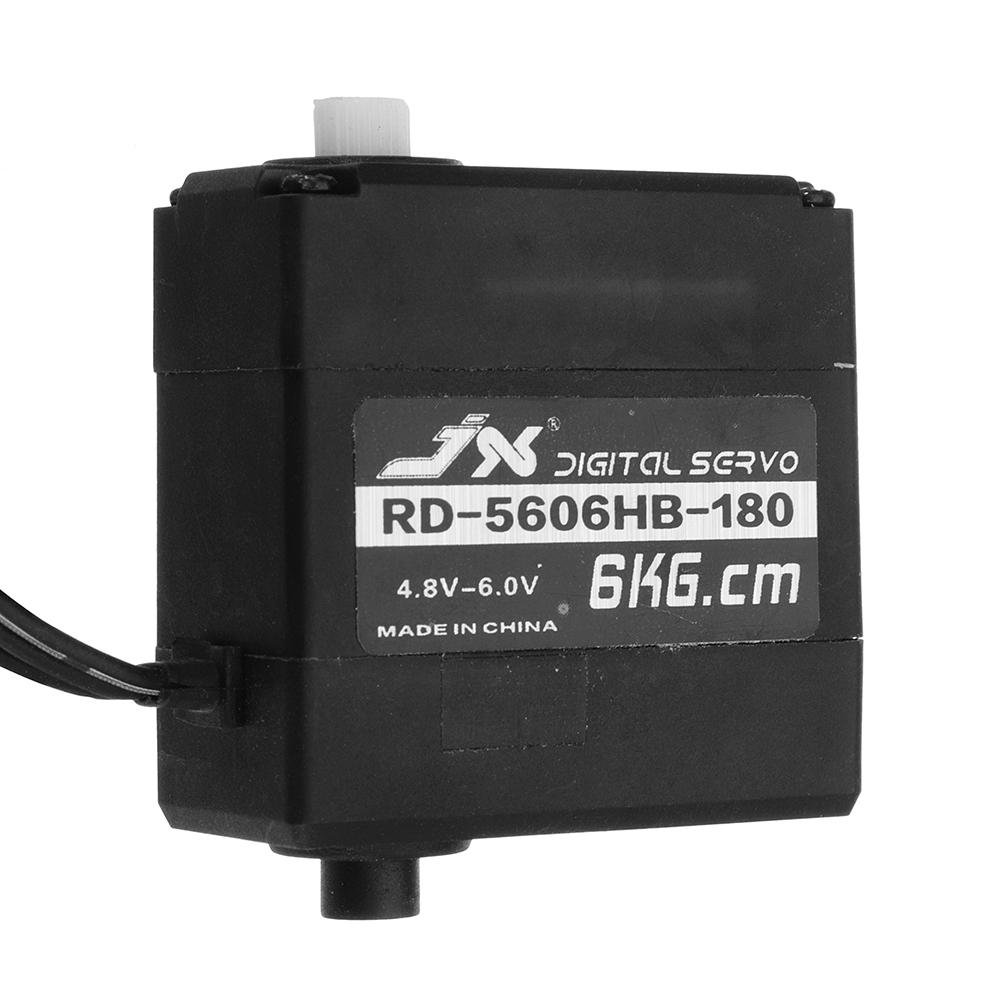

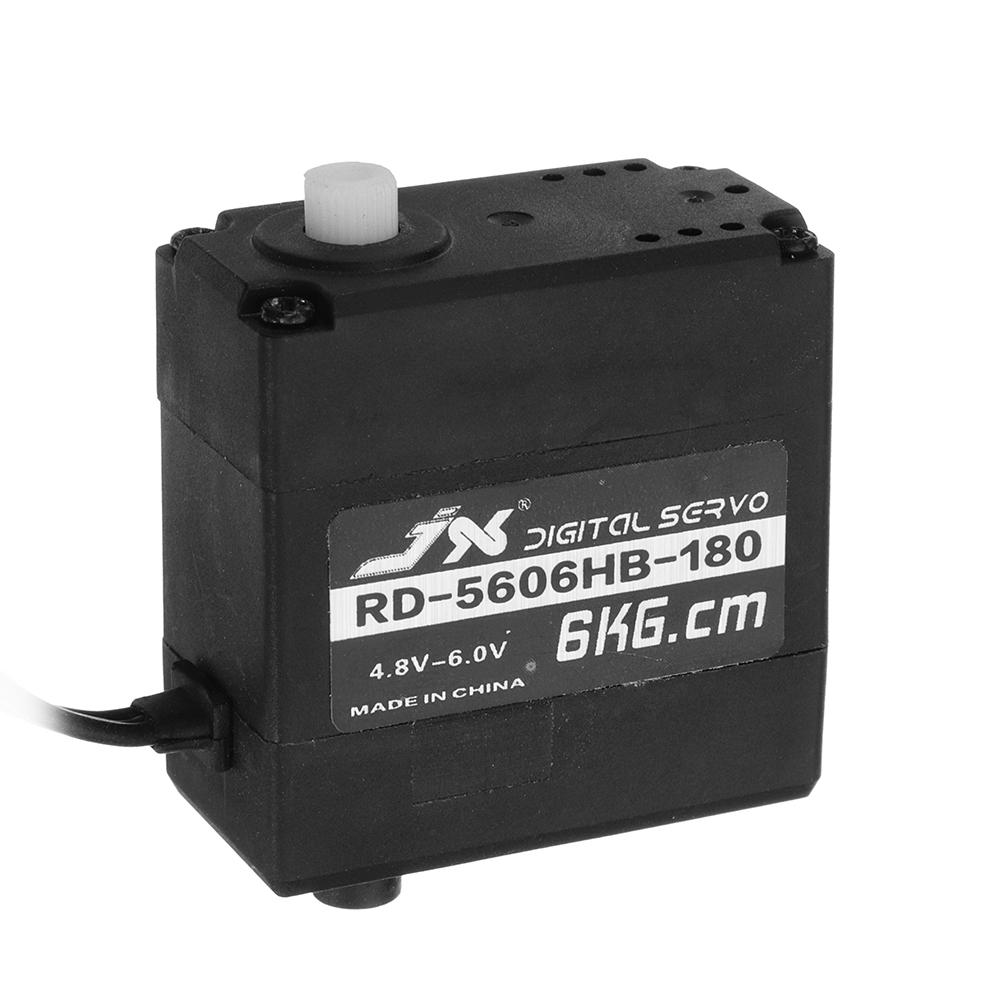

Product: Servo.
Dead Band: 4μs.
Neutral Point: 1500μs.
Pulse Width: 500μs-2500μs.
Motor: Core.
Max Angle: 180°±2°.
Frequence: 330hz.
Operating Voltage: 4.8V-6V.
Operating Speed(4.8V): 0.14sec/60°.
Operating Speed(6.0V): 0.12sec/60°.
Stall Torque(4.8V): 5.50kg.cm.
Stall Torque(6.0V): 6.20kg.cm.
Demension: 40.5X20.3X40mm.
Weight: 47g.
Connector Wire Length: JR 200mm.
Spline Count: 25T.
Features:
-- High performance robot servo.
-- High quality core motor.
Package:

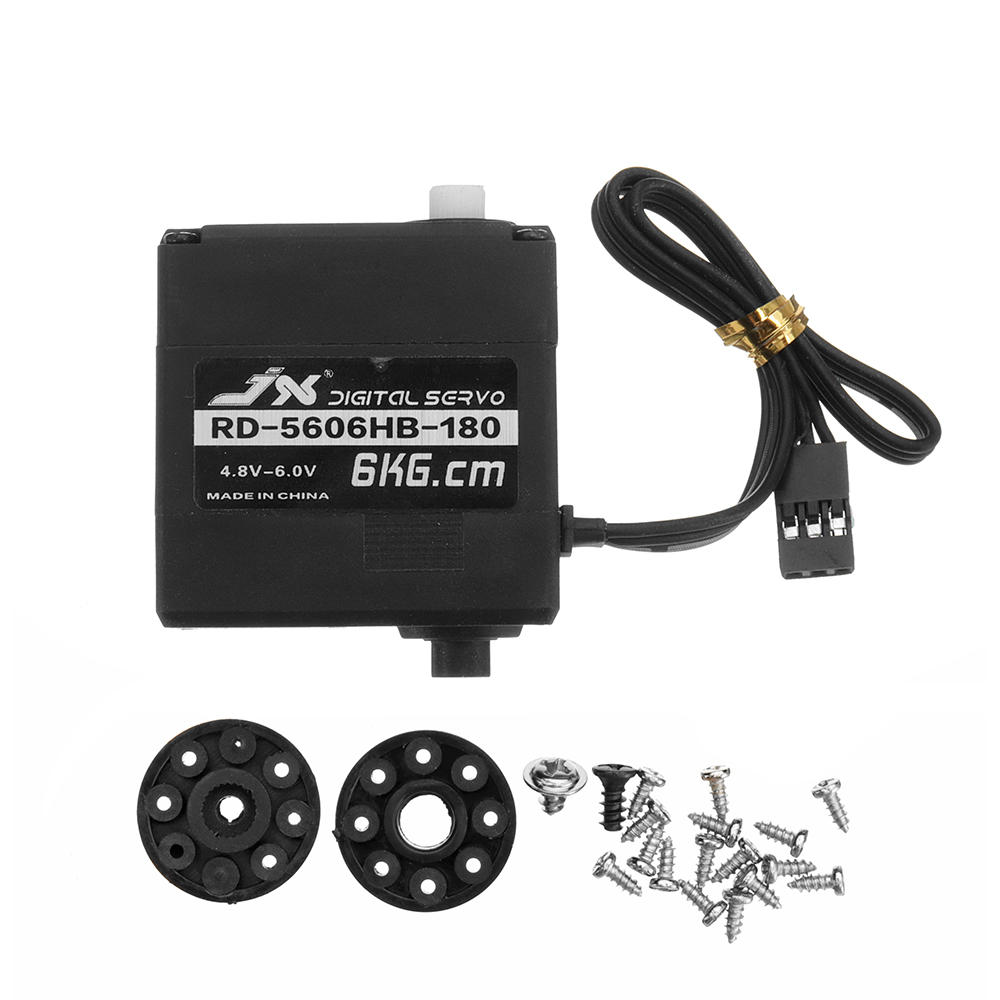

1* 6KG Servo
