DESCRIPTION
Features:
1. The main body of the small plane handle hole punch is crafted from aluminum alloy 6061 with a sandblasted surface, and features a stainless steel drill sleeve for wear resistance, significantly extending the drilling life.
2. The hole distance for the double-hole handle is adjustable at 64/96/128mm, with a punching specification of 4mm, accommodating most handle sizes available on the market.
3. Includes a 4mm drill made from high-speed steel 6542, suitable for use on metal.
Specifications:

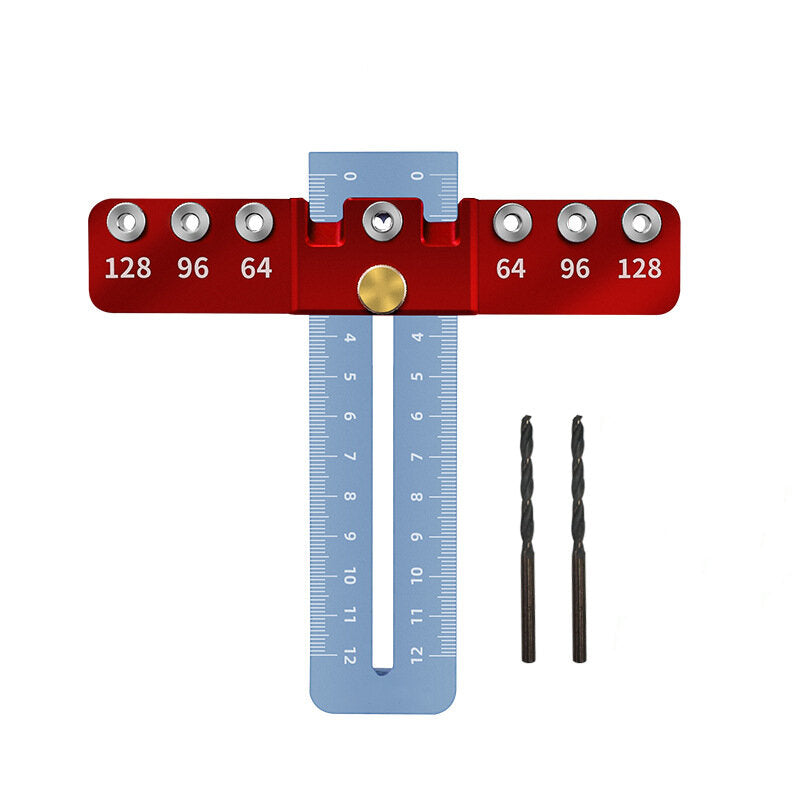

- Name: Handle Punching Locator
- Material: Aluminum Alloy
- Opening Margin: 10-100mm (double-hole handle), 15-100mm (single-hole handle)
- Handle Hole Distance: center hole/64mm/96mm/128mm
- Drill Sleeve Size: 4mm
- Drill Size: 4mm
- Optional Types: A, B, C
How to Use:

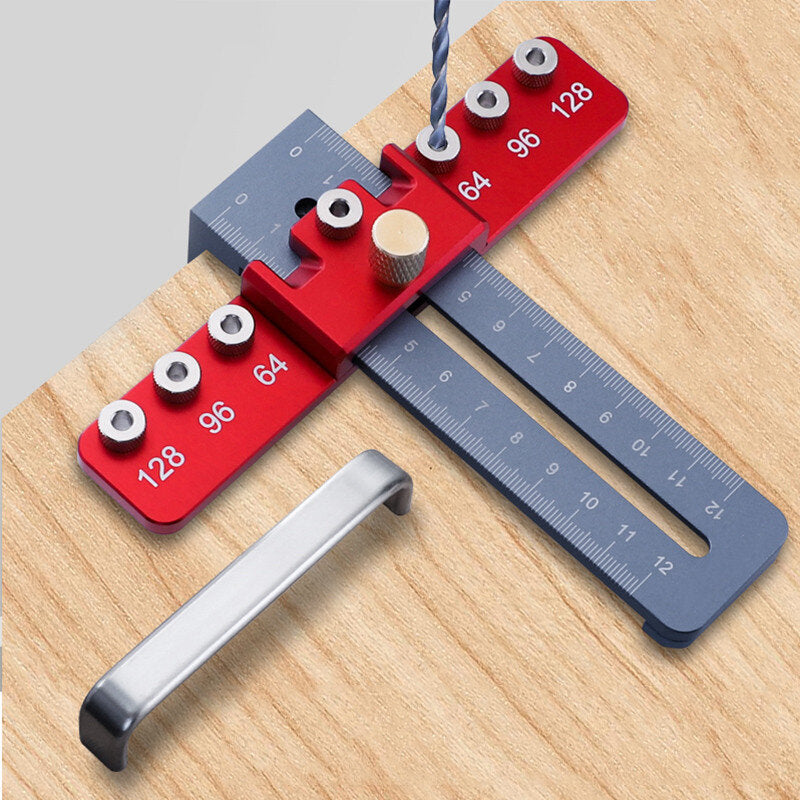

1. Mark the midline on the surface where the handle will be installed.
2. Align the locator pointer with the marked midline.
3. Adjust the drill sleeve opening according to the handle specification.
4. Install the handle.
Package Included (optional):

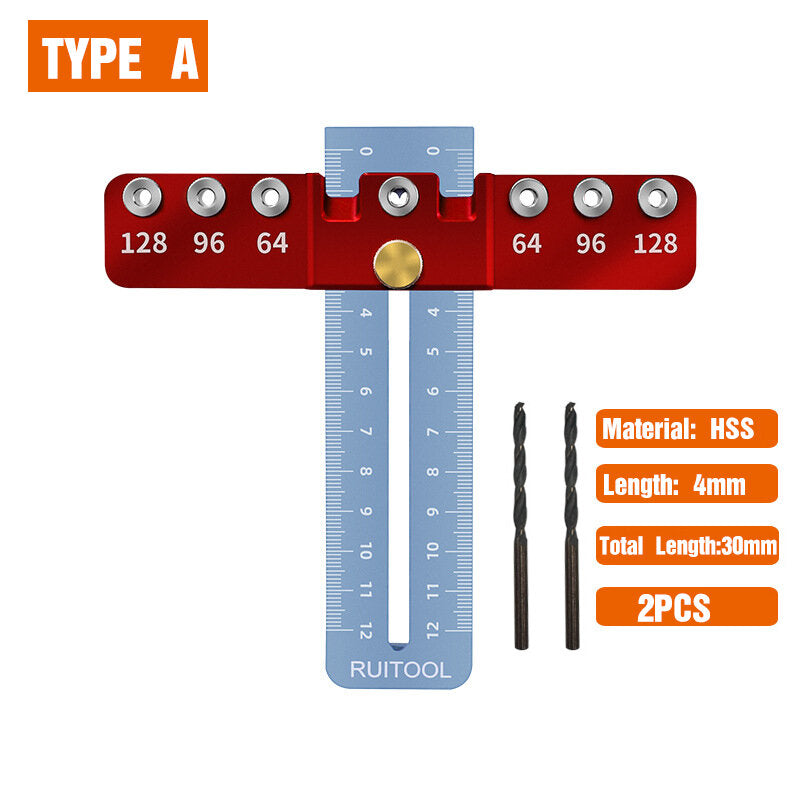

- Type A: 1 Drill Punch Locator, 2 4mm Drills

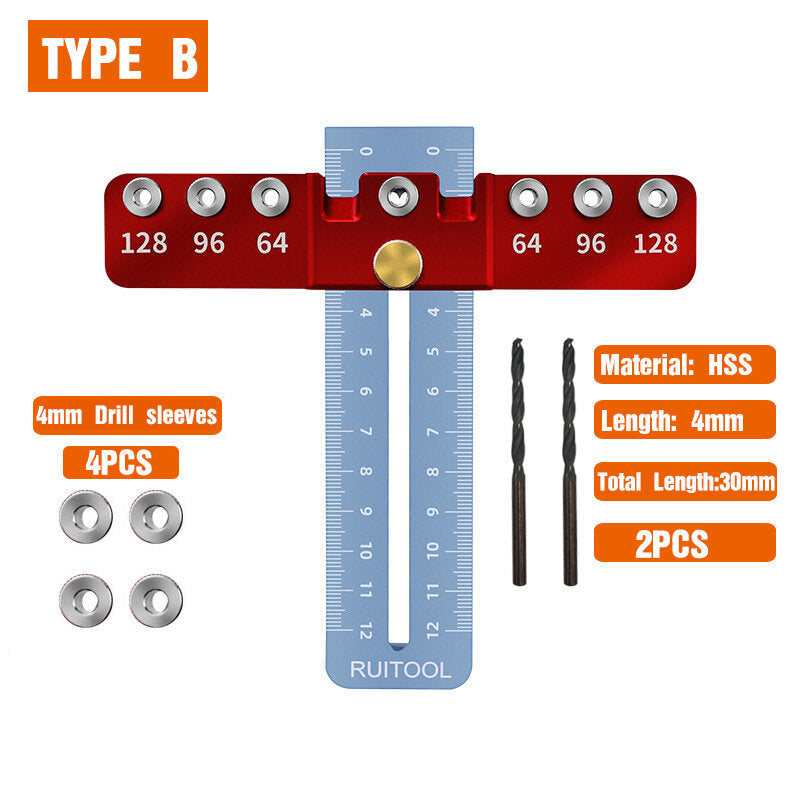

- Type B: 1 Drill Punch Locator, 4 4mm Drill Sleeves, 2 4mm Drills

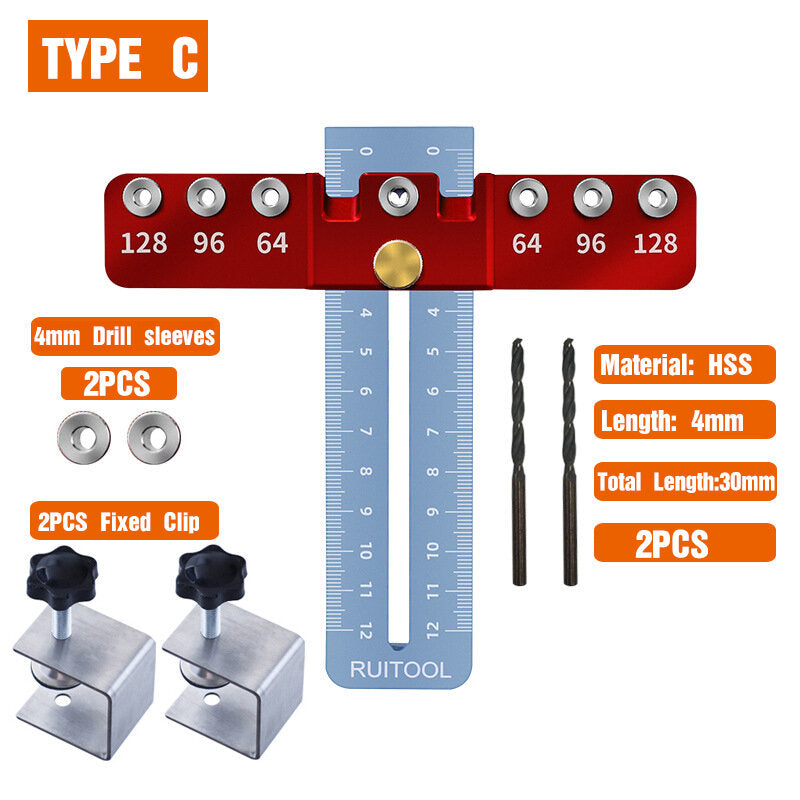

- Type C: 1 Drill Punch Locator, 2 4mm Drill Sleeves, 2 4mm Drills, 2 Fixed Clips
