DESCRIPTION
Specifications:

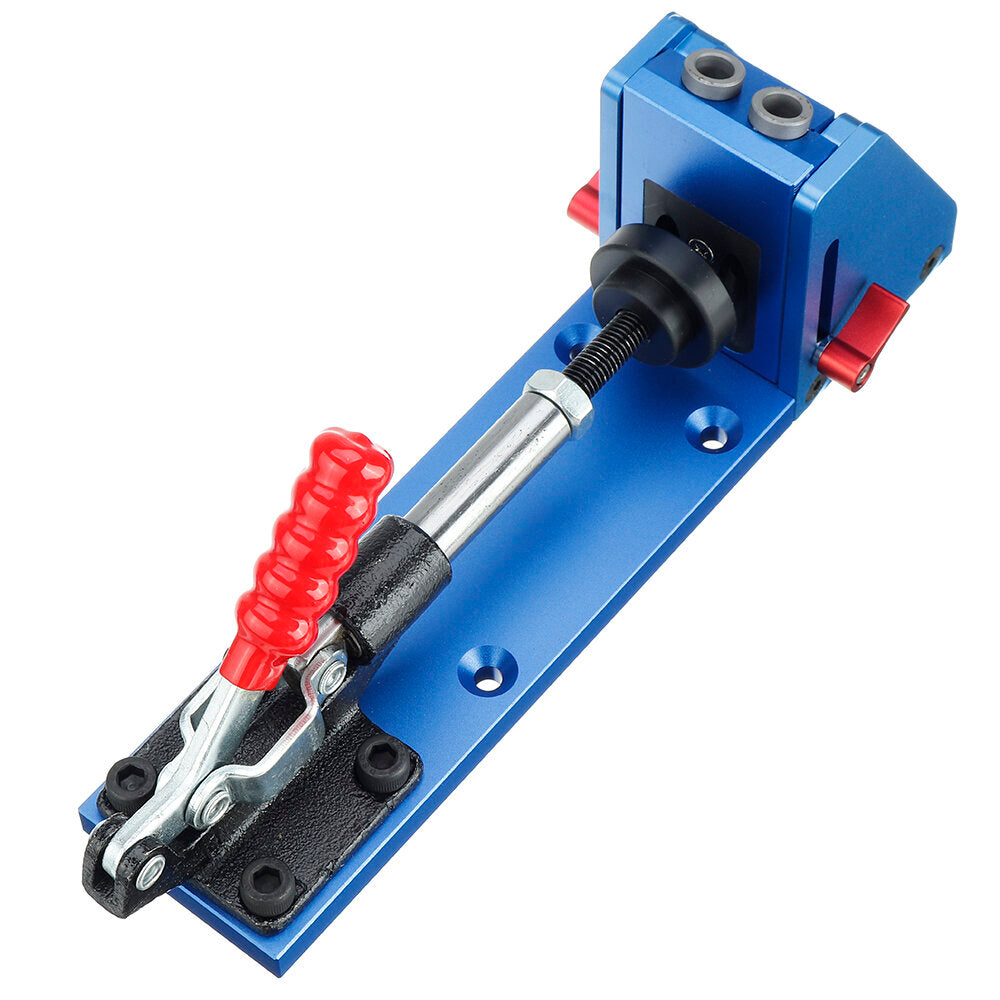

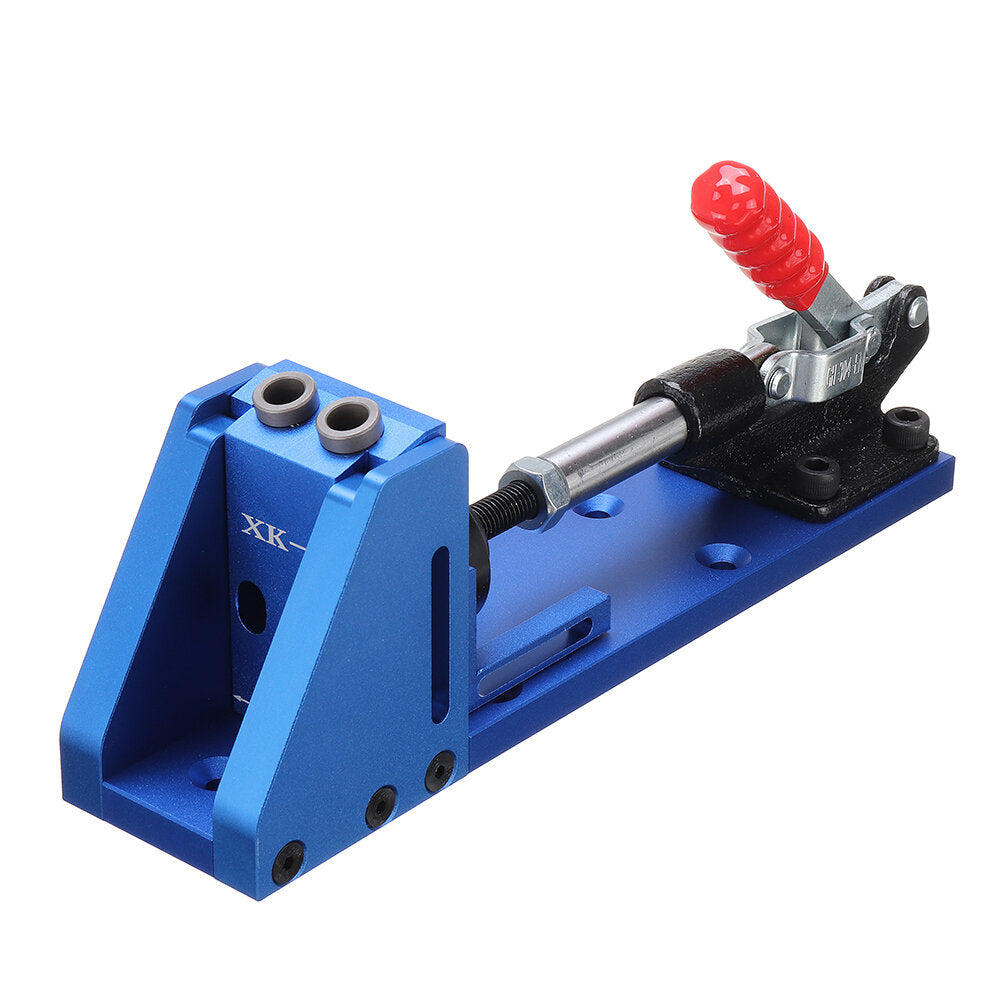

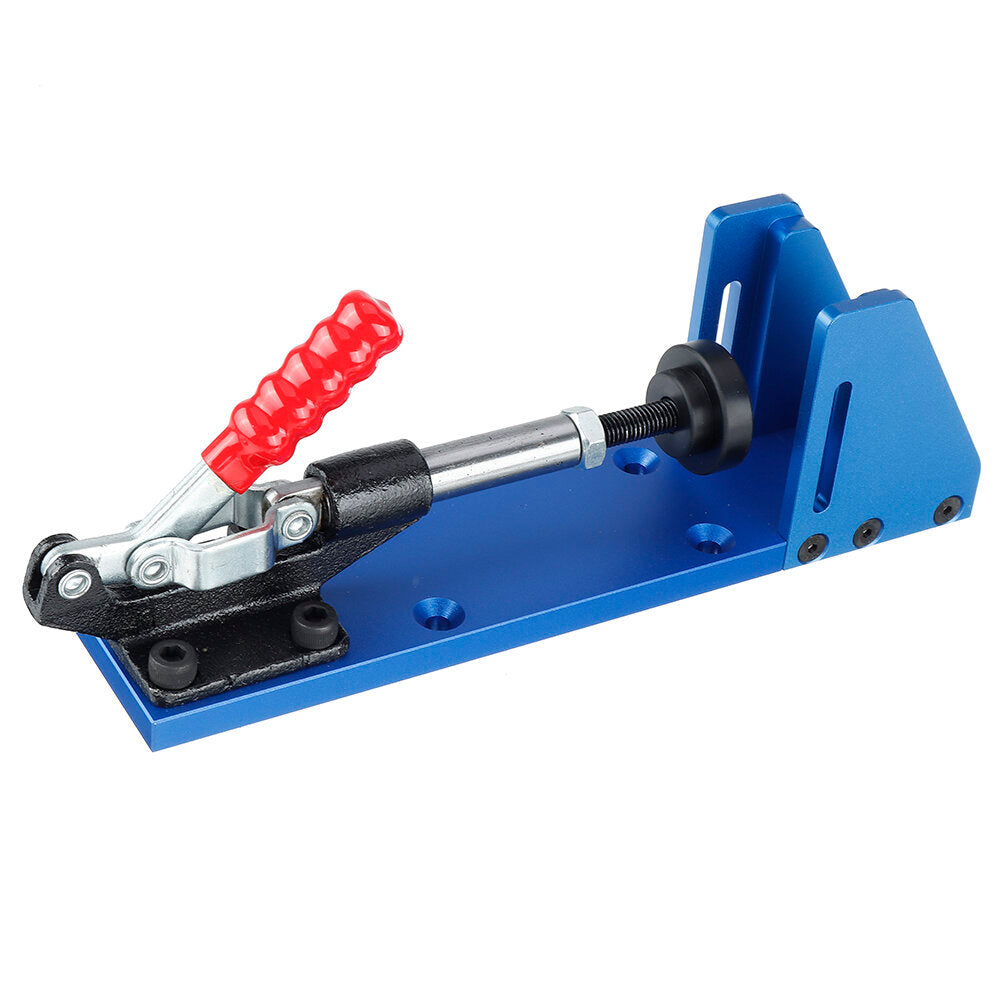

- Product Name: XK-2 Diagonal Puncher
- Material: Aluminum Alloy
- Color: Blue
- Surface Treatment: Anodized
- Drill Bushing Diameter: 9.5mm, Length: 30mm, Hardness: HRC 50
- Suitable For: Wood Drilling
- Size: 270x90x63mm
- Quantity: 1 Set
Features:
- The Pocket Jig Kit is an excellent repair tool and a versatile addition to any tool collection.
- Adjusts easily for materials from 0.4 inches to 1.97 inches (10mm-50mm) thick.

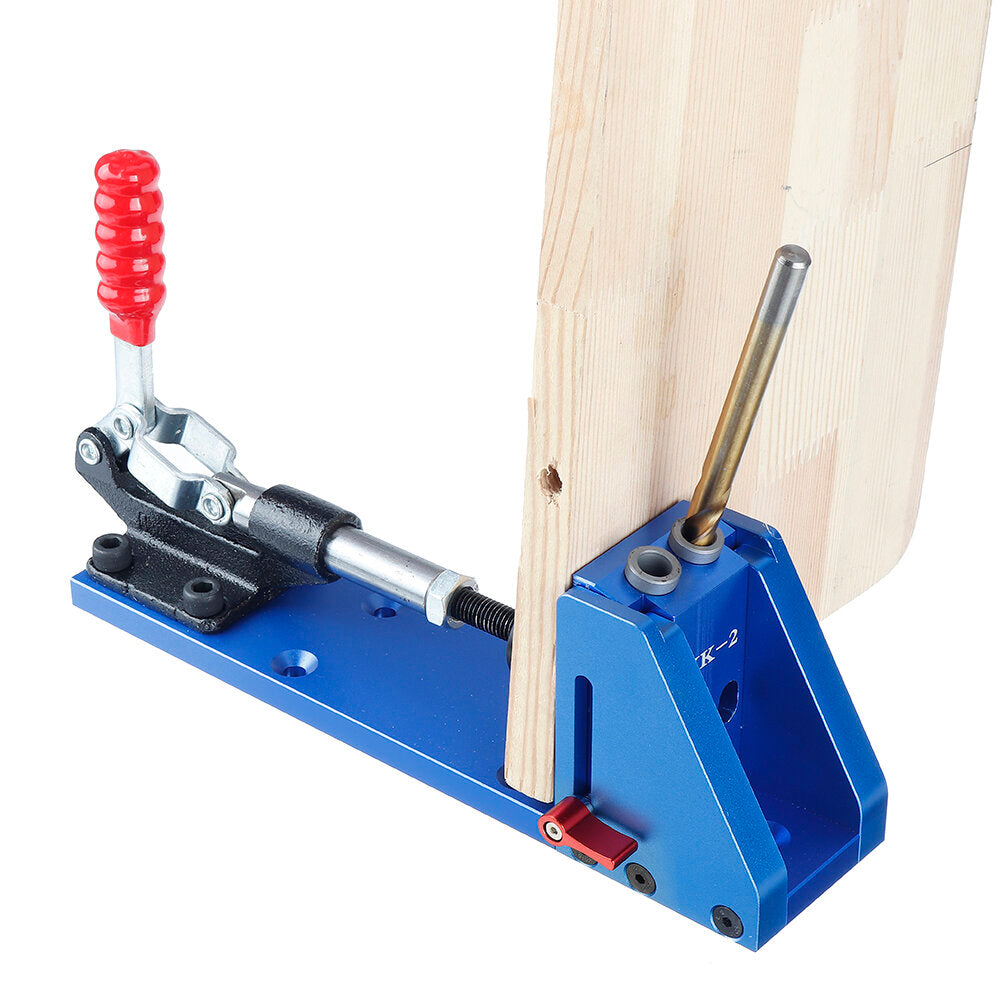

- Simple to use and install: Use the jig to drill steeply pitched counter bores in one joint member, then drive self-tapping screws into the other member without needing pilot holes.
- Accurate for creating flush, corner, and angle pocket hole joints for various applications such as leg-and-rail connections, building face frame cabinets, and more.
- Designed for do-it-yourself projects with a heavy-duty build featuring an aluminum extrusion and solid metal drill guide.
Operation Method:

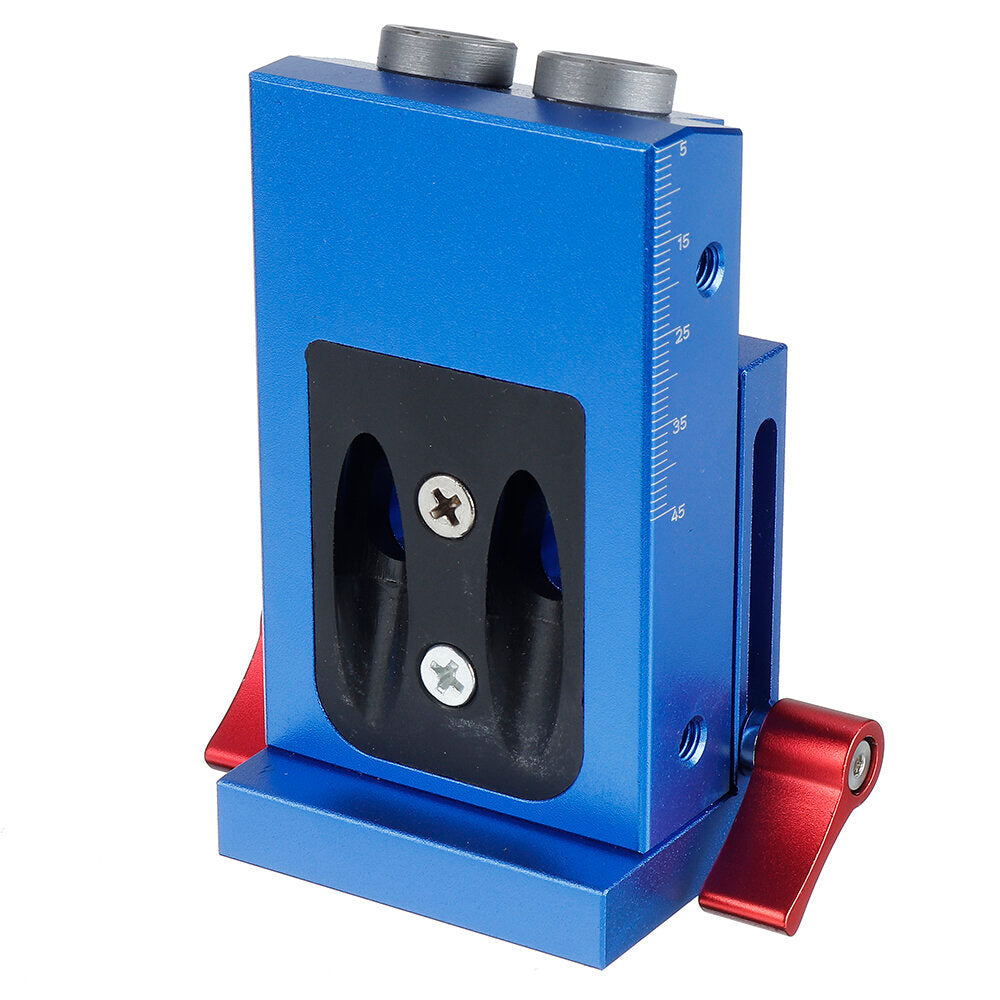

1. Set the board thickness on the jig by adjusting the arrow to the corresponding scale (e.g., for an 18mm sheet, set the arrow to 18) and tighten the red screw.
2. Insert the drill bit into the steel sleeve until it touches the bottom of the adjustment block, lift about 3mm, then lock the limit ring.
3. Ensure the electric drill is set to rotate clockwise and adjust the speed to 1500rpm or higher for optimal performance. Maintain a constant speed during drilling and avoid starting the drill while in contact with the wood. Retract occasionally to clear out wood chips.
4. Use appropriate screw lengths for different thicknesses of plates. Pre-fix the two boards before locking the screws. It is recommended to use pliers, F-clamps, or slant hole-specific pull clamps for this purpose.

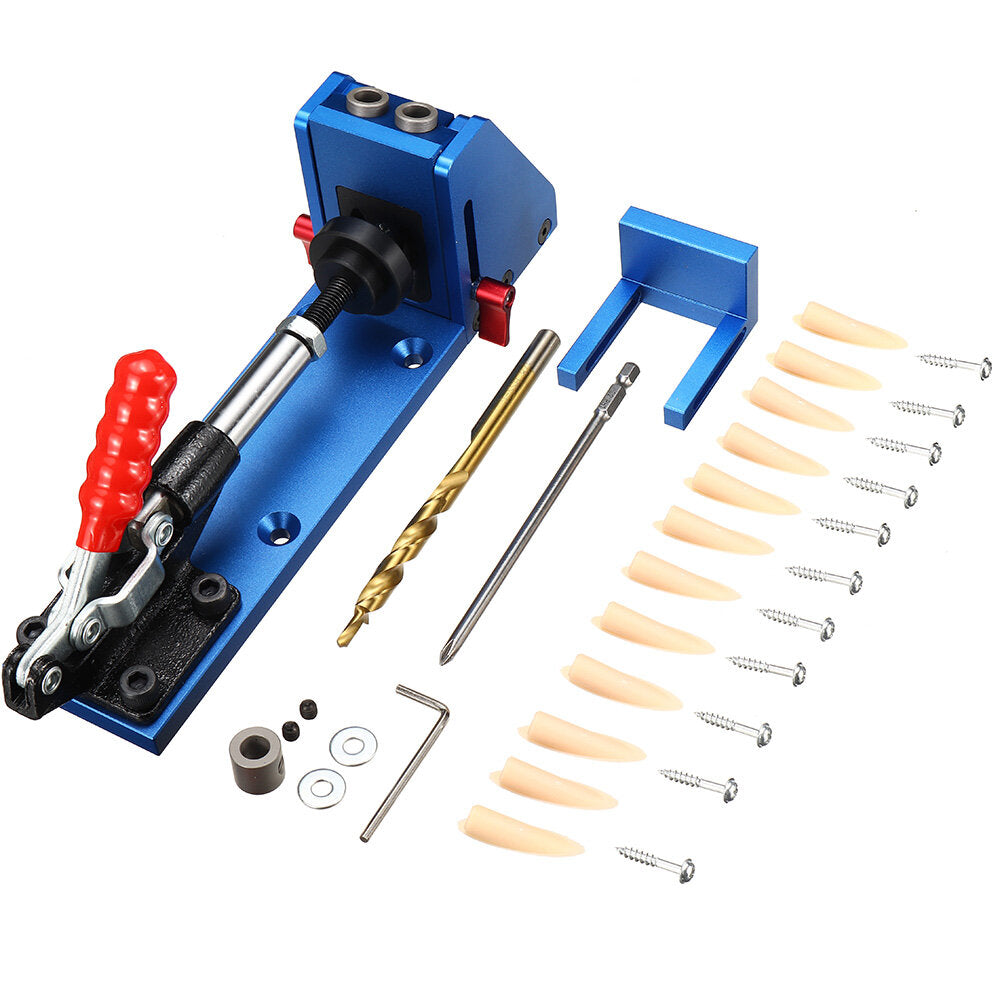

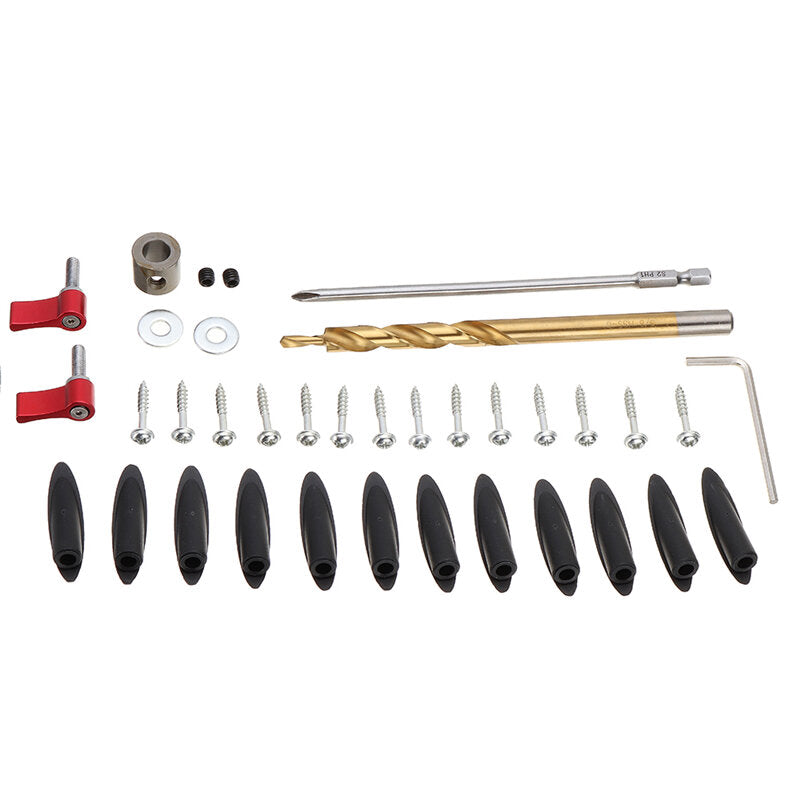

Package Included:
- 1 x Main Body and Clamp
- 1 x Hole Puncher
- 1 x 9.5mm Step Drilling Bit
- 1 x Drill Spacing Ring
- 1 x Screwdriver
- 1 x 2.5mm Hex Wrench
