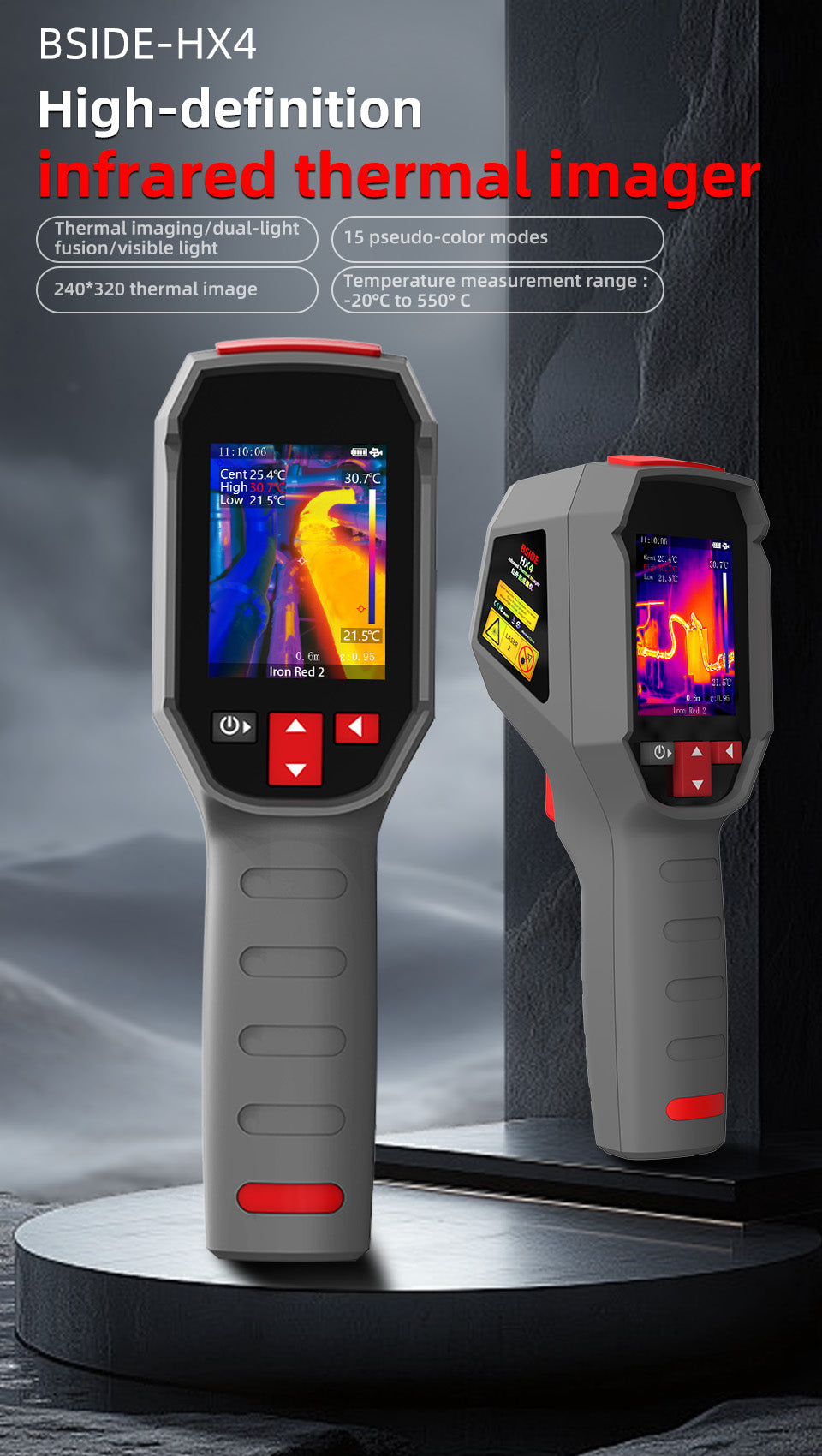

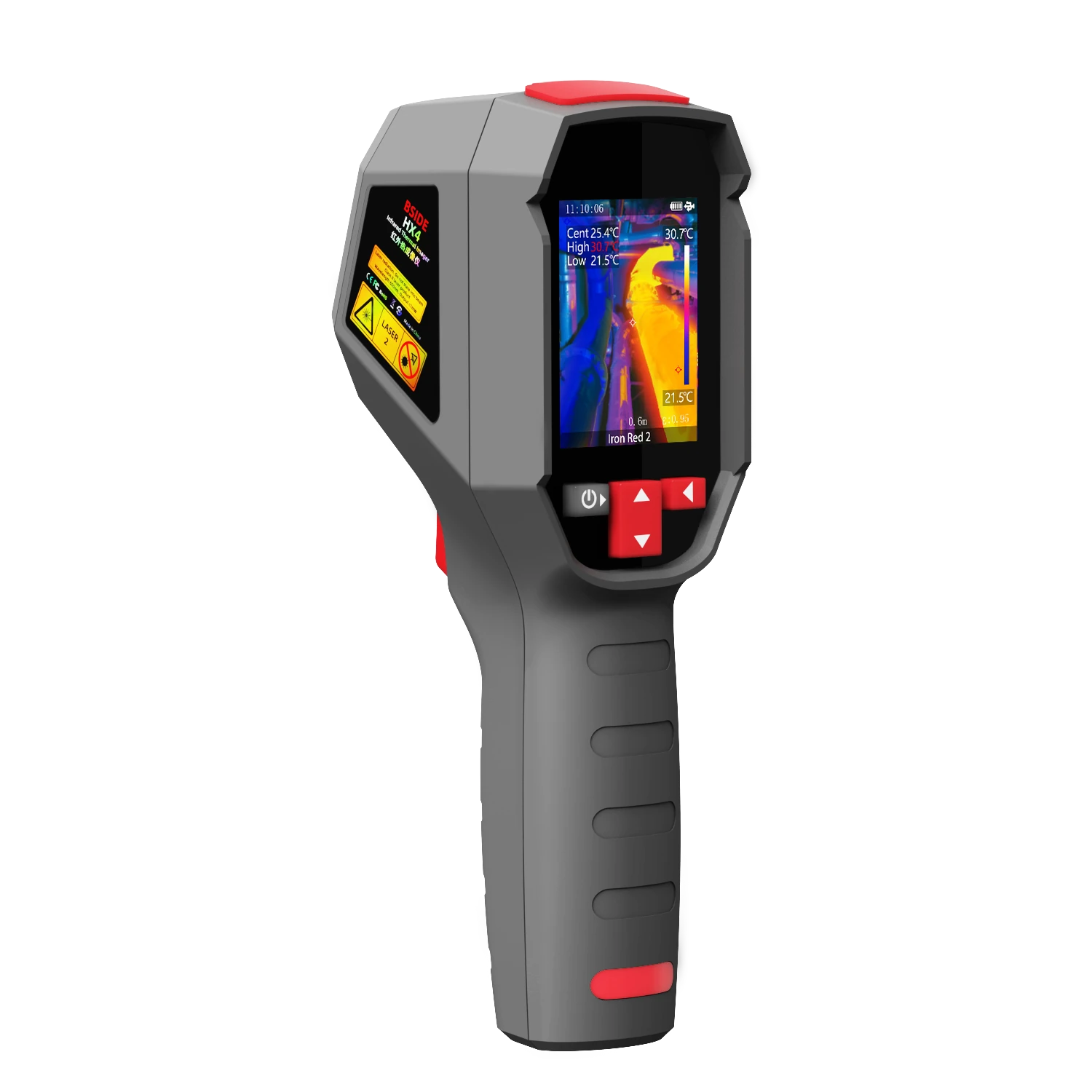

xGreenZech Industrial 320-H
High-Definition Professional Thermal Diagnostic Station
Engineering Overview
The GreenZech Industrial 320-H is a high-performance infrared imaging system precision-engineered for professional diagnostics. Utilizing an advanced Vanadium Oxide (VOx) Microbolometer with a native 240 x 320 resolution, it delivers exceptional thermal clarity and edge detection. With a fluid 25Hz frame rate and a comprehensive temperature range of -20°C to 550°C, the 320-H empowers technicians to identify critical system failures, electrical overloads, and structural heat leaks with surgical accuracy and real-time responsiveness.
CORE PERFORMANCE ATTRIBUTES

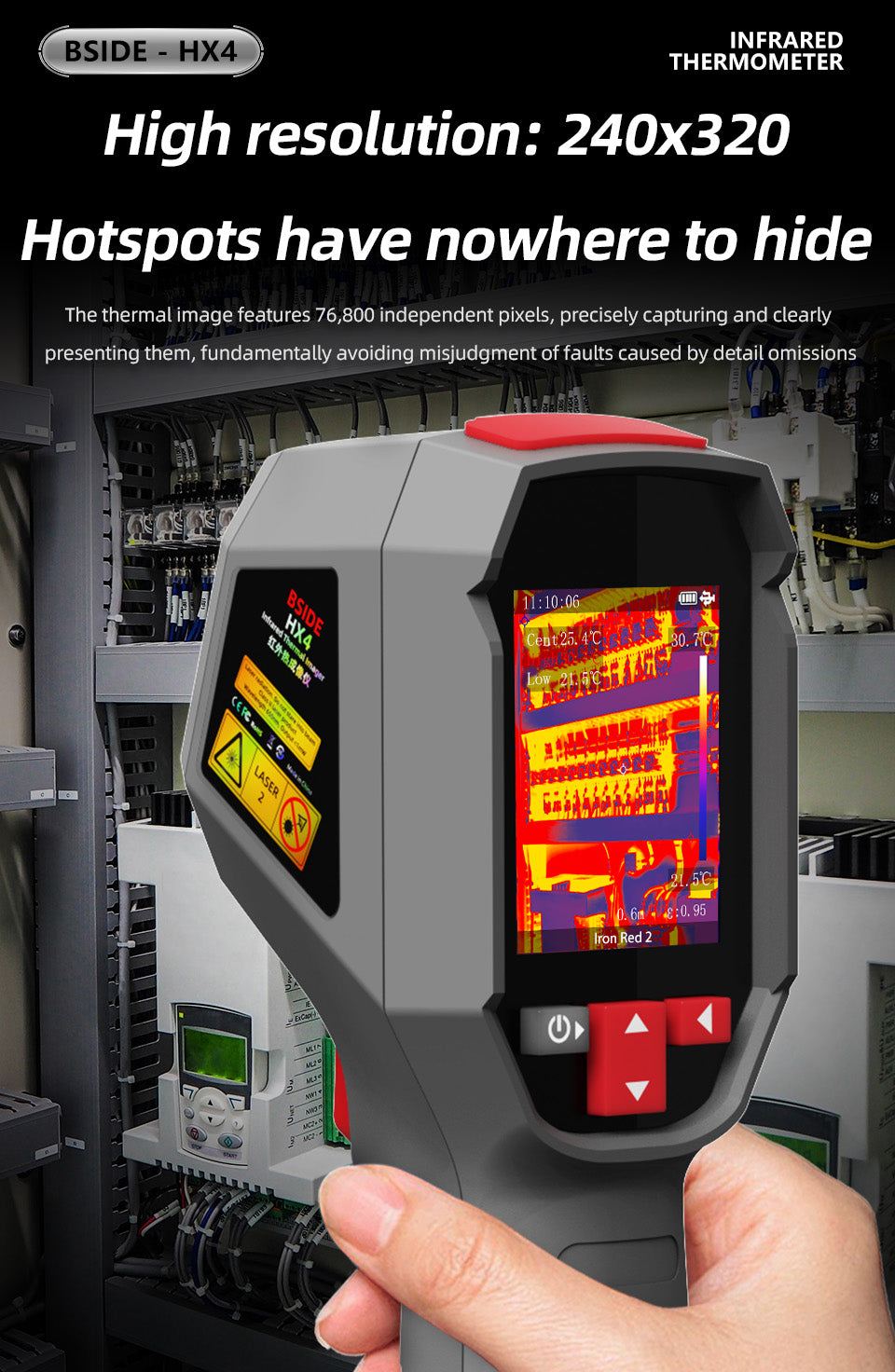

- High-Definition Visualization: 240x320 IR array providing 76,800 distinct thermal data points.
- Fluid 25Hz Refresh Rate: Professional frame rate ensures smooth motion tracking without image stutter.
- Advanced Sensitivity: NETD of ≤50mK for detecting the most subtle temperature variances.

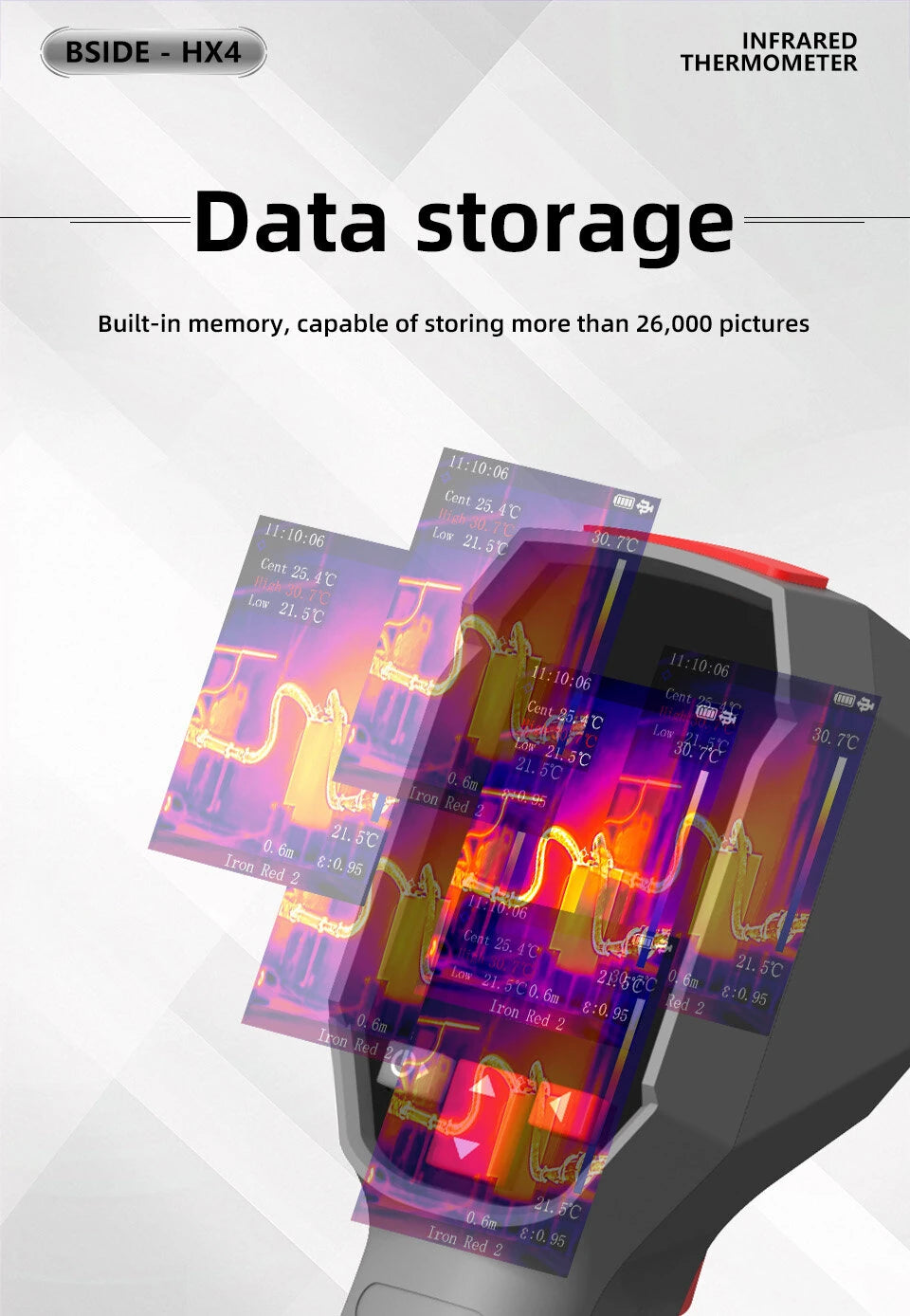

- Vast Data Archiving: Built-in storage support for up to 26,000 thermal image files in BMP format.
- Industrial Endurance: Integrated 2500mAh lithium system for over 5 hours of continuous operation.
- Precision Emissivity: Adjustable settings (0.01 - 1.00) for accurate measurement across diverse industrial surfaces.

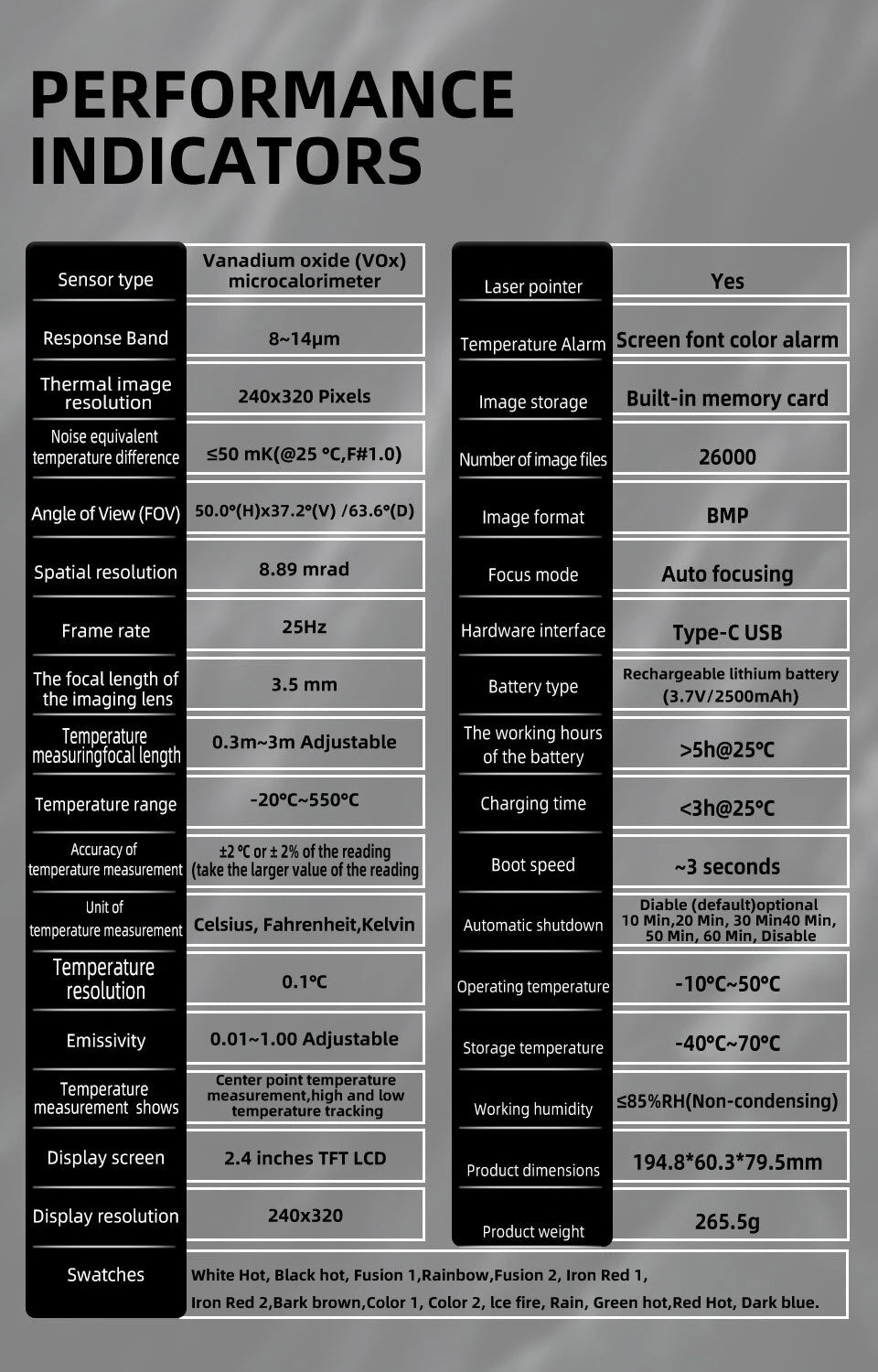

Technical Specifications
| Industrial Parameter | Industrial 320-H Rating |
|---|---|
| Infrared Resolution | 240 x 320 Pixels |
| Sensor Type | Vanadium Oxide (VOx) Microbolometer |
| Frame Rate | 25Hz (Real-Time Fluidity) |

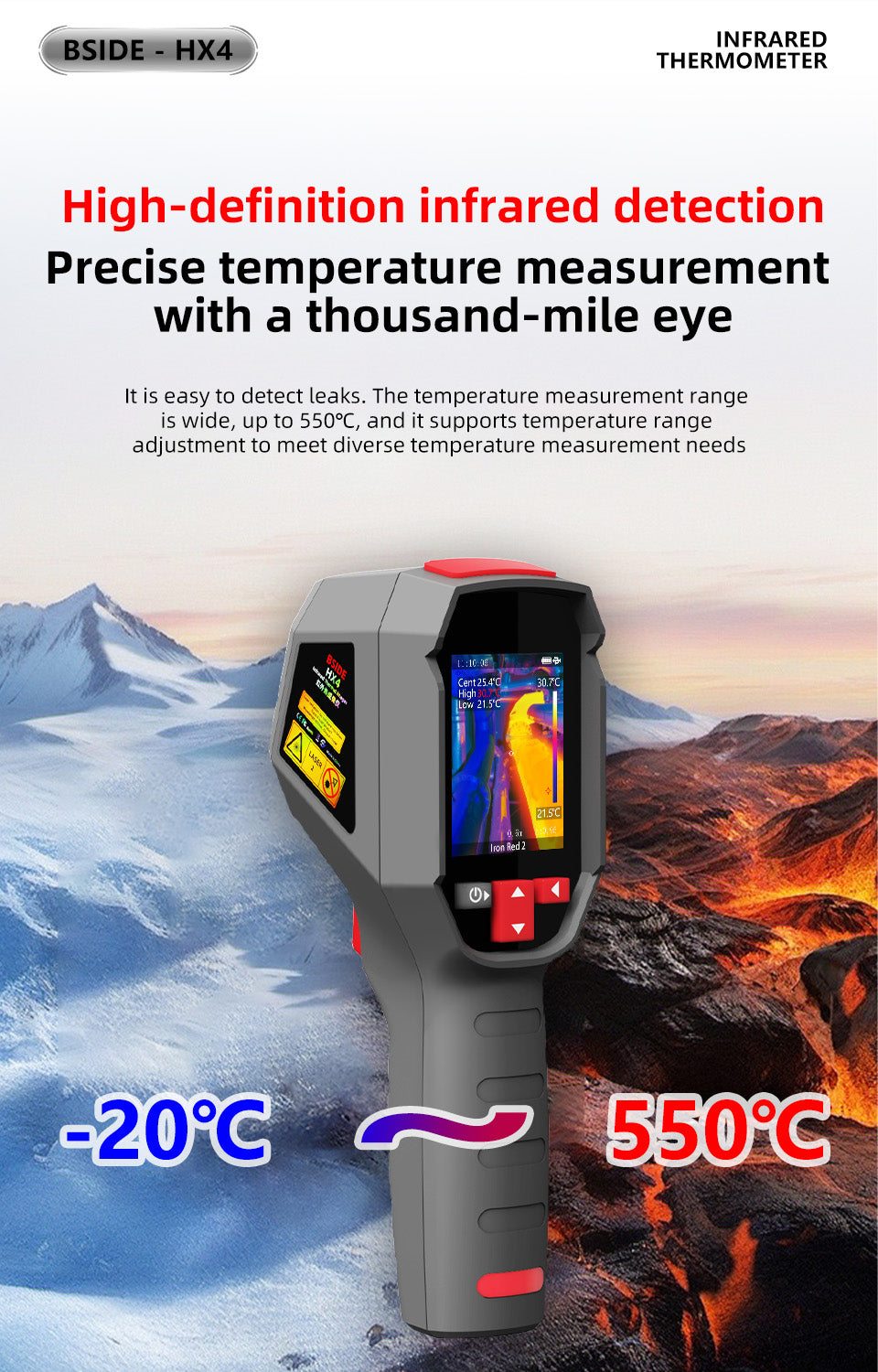

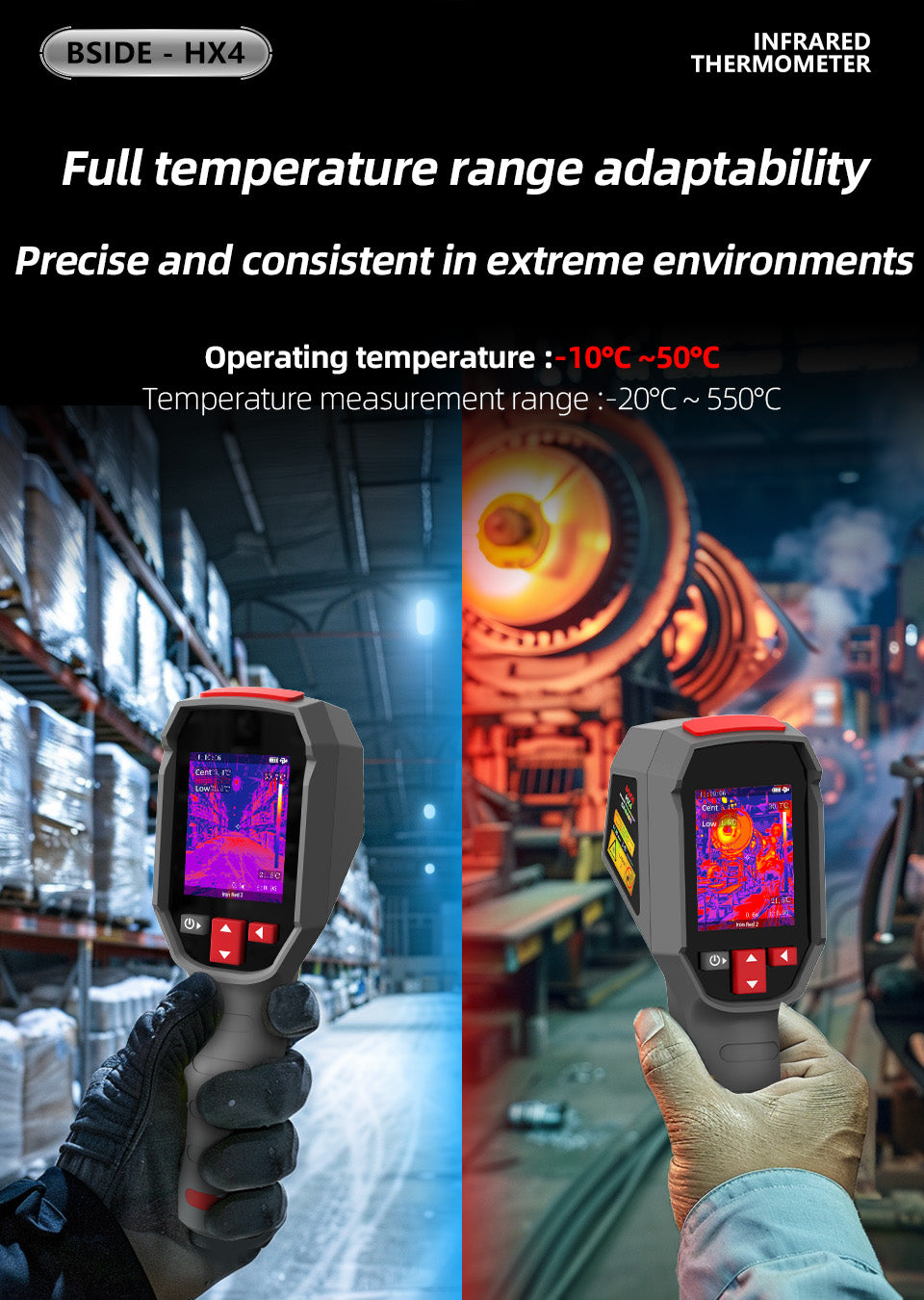

| Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | ±2°C or ±2% of reading |
| Thermal Sensitivity (NETD) | ≤ 50 mK (@25°C, F#1.0) |

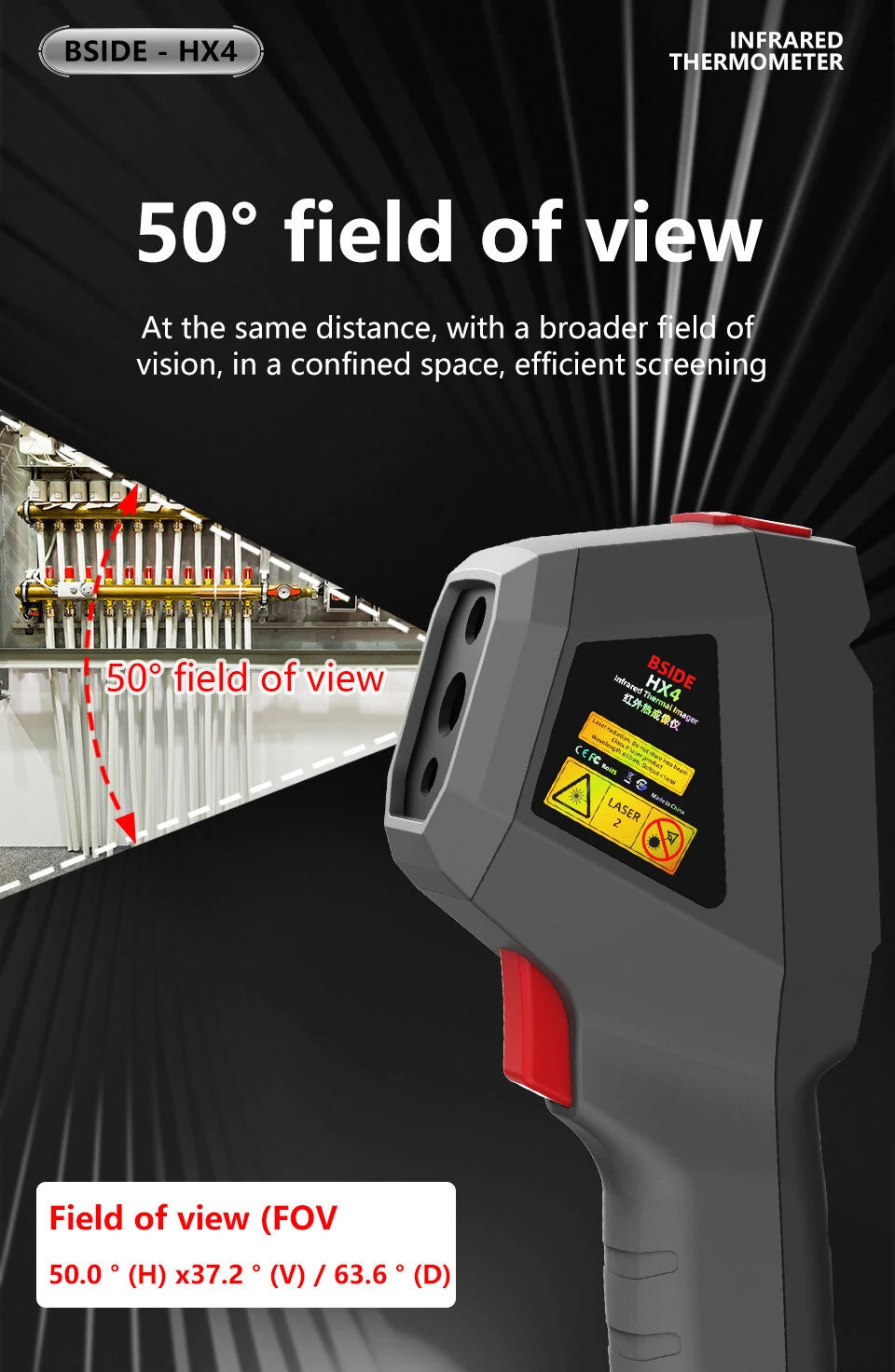

| Field of View (FOV) | 50.0° (H) × 37.2° (V) / 63.6° (D) |

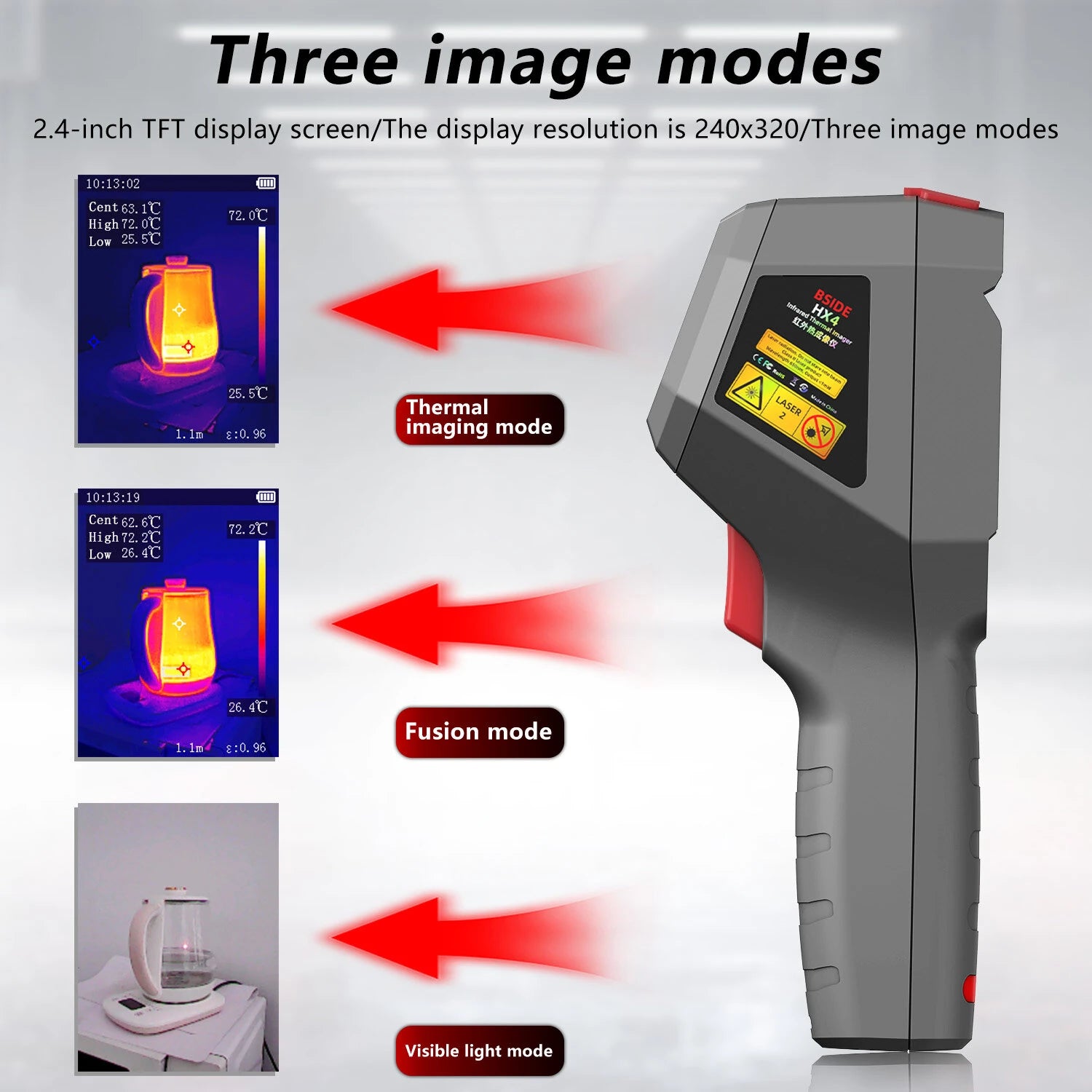

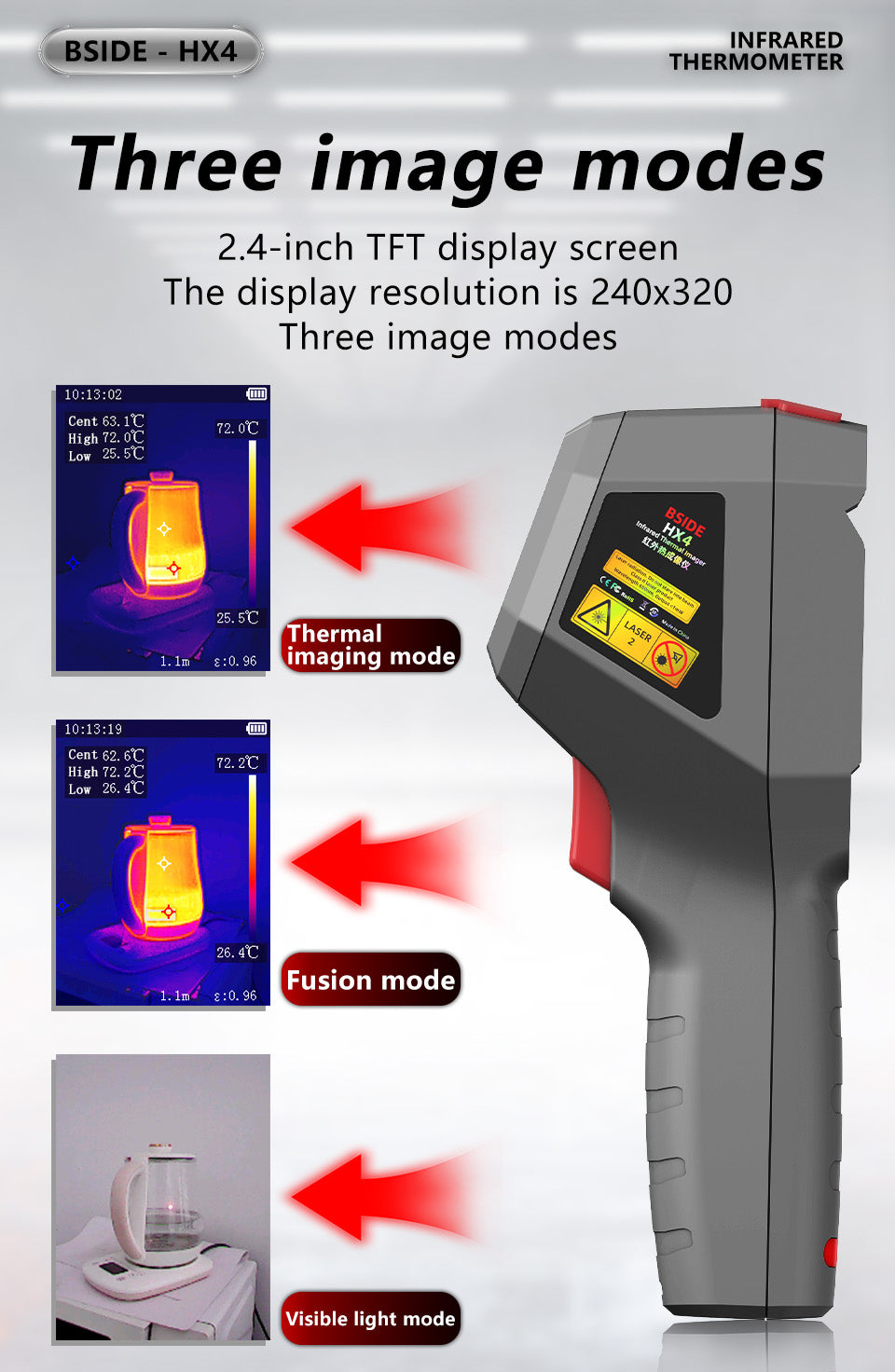

| Display Technology | 2.4-inch TFT High-Contrast LCD |

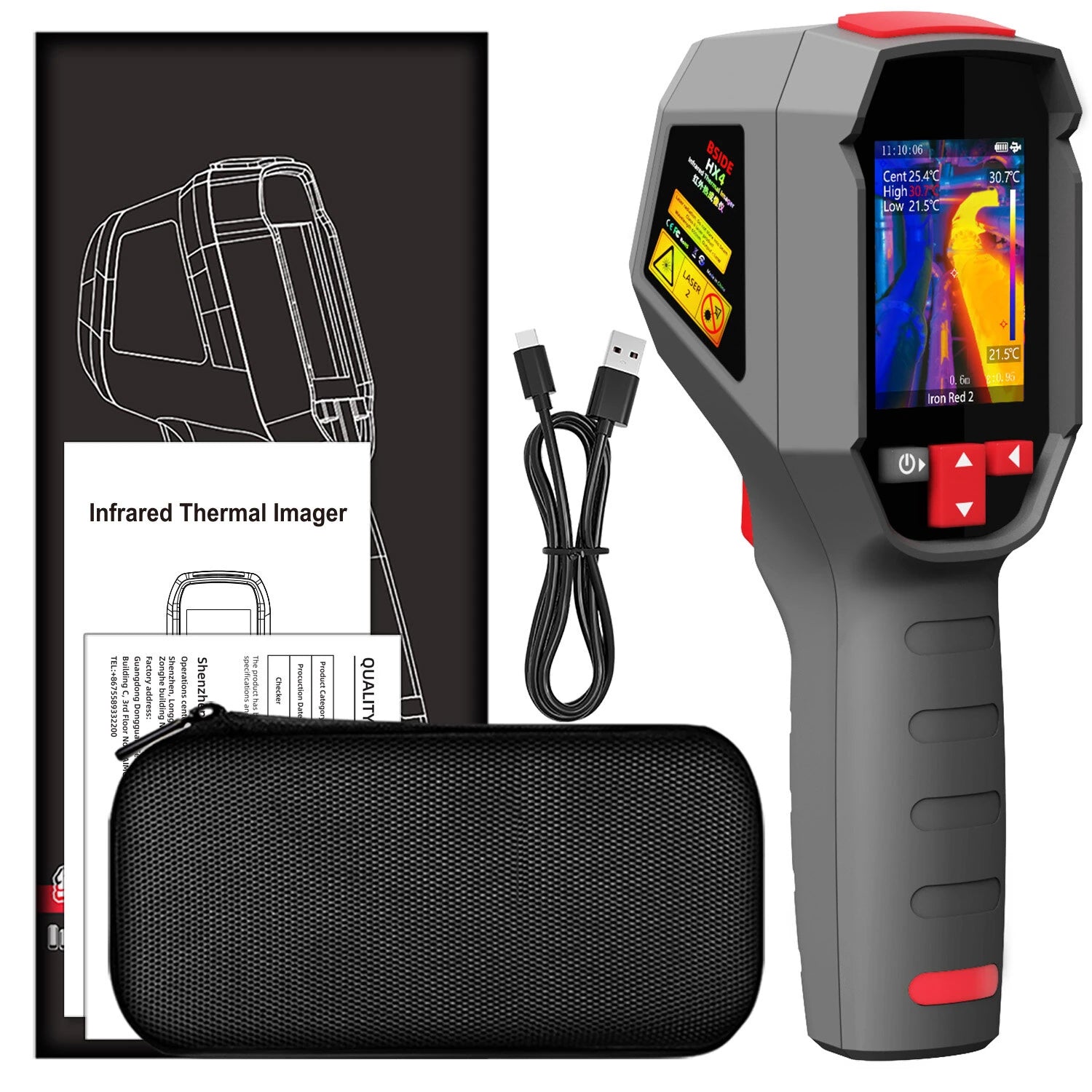

Professional Package Includes:

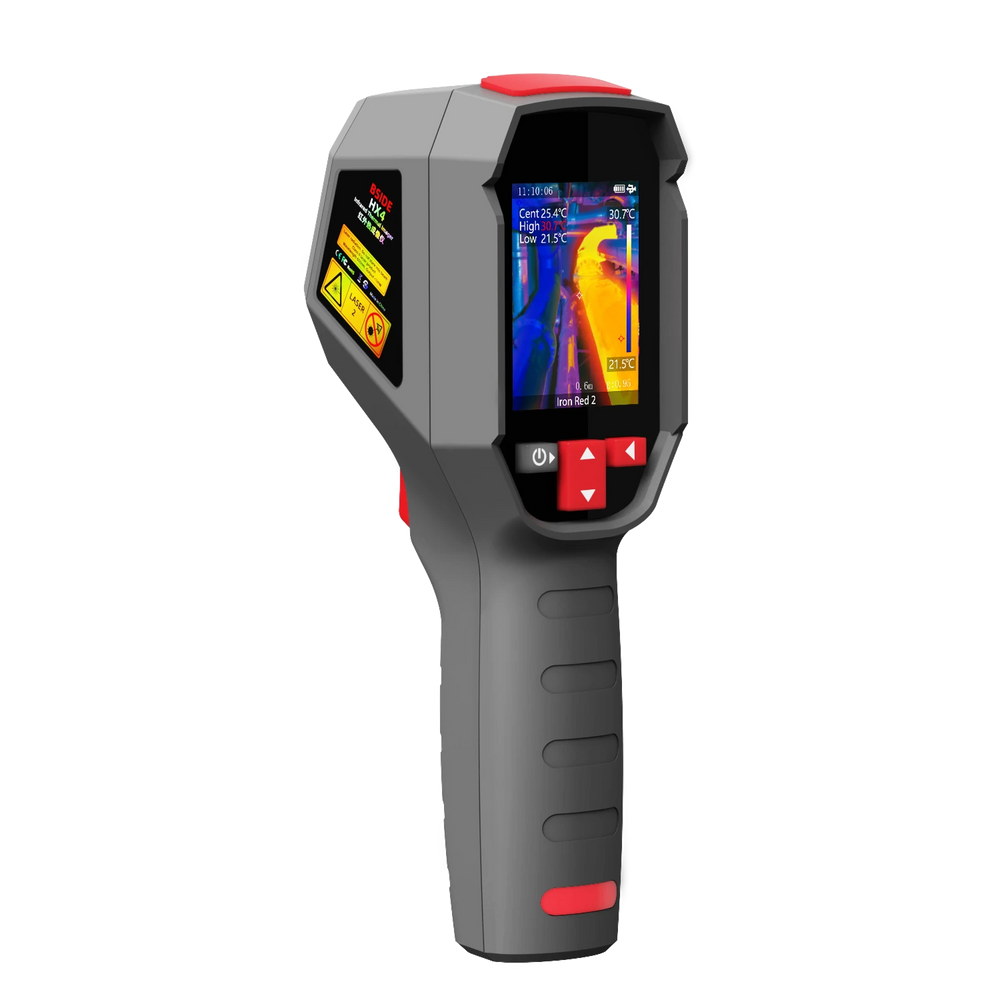

- 1 x GreenZech Industrial 320-H Thermal Diagnostic Unit

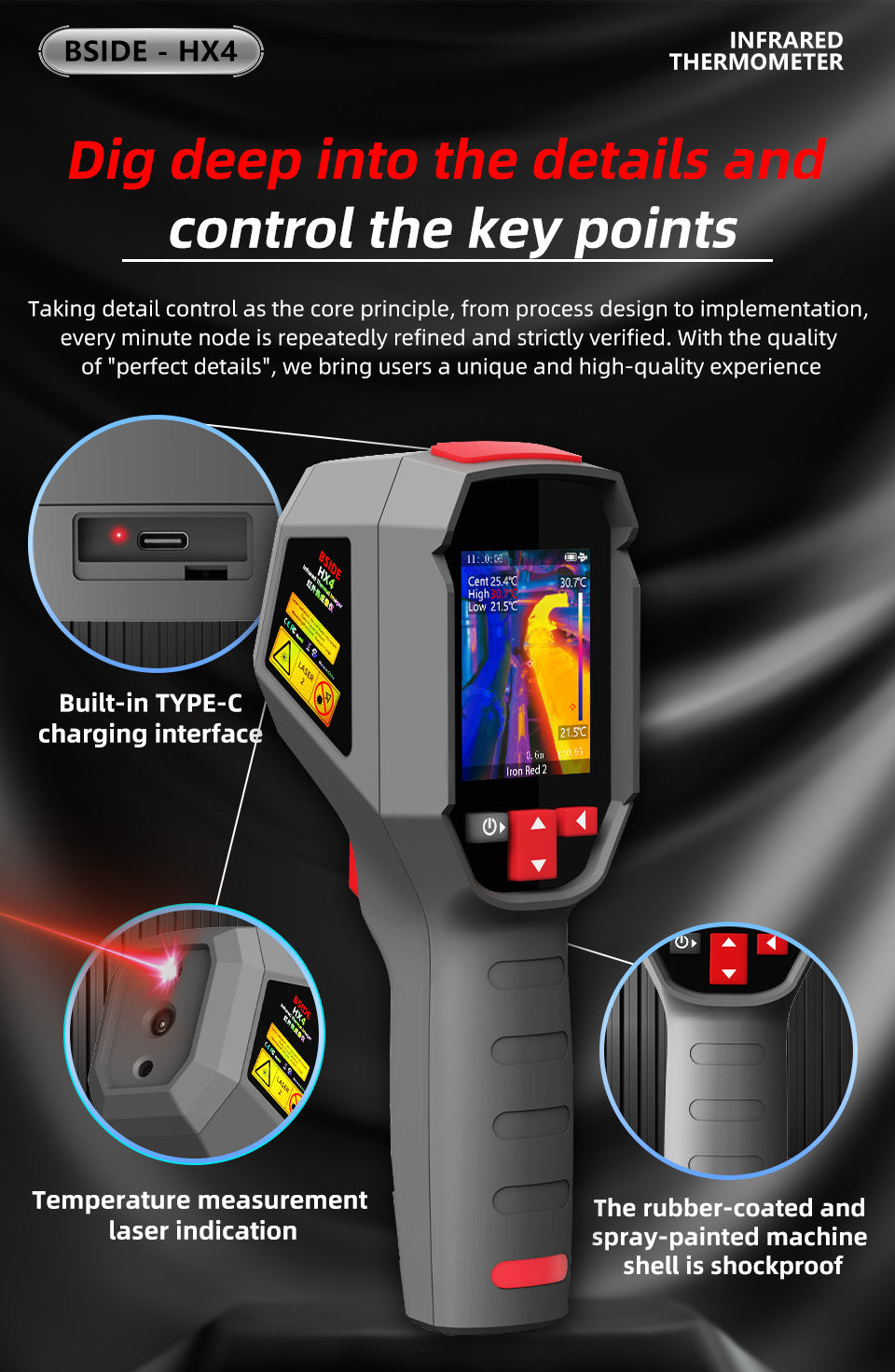

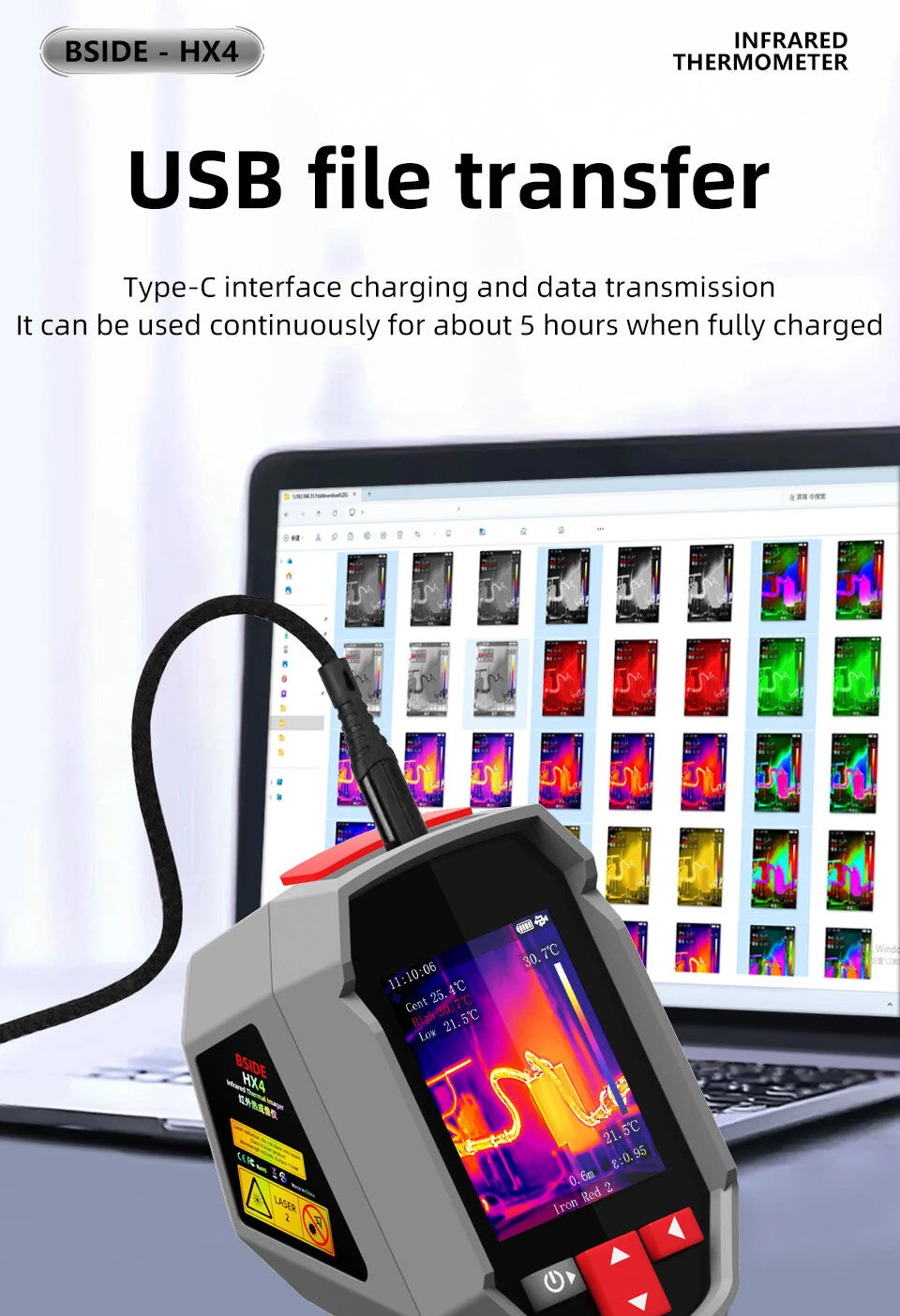

- 1 x USB High-Speed Charging & Data Cable

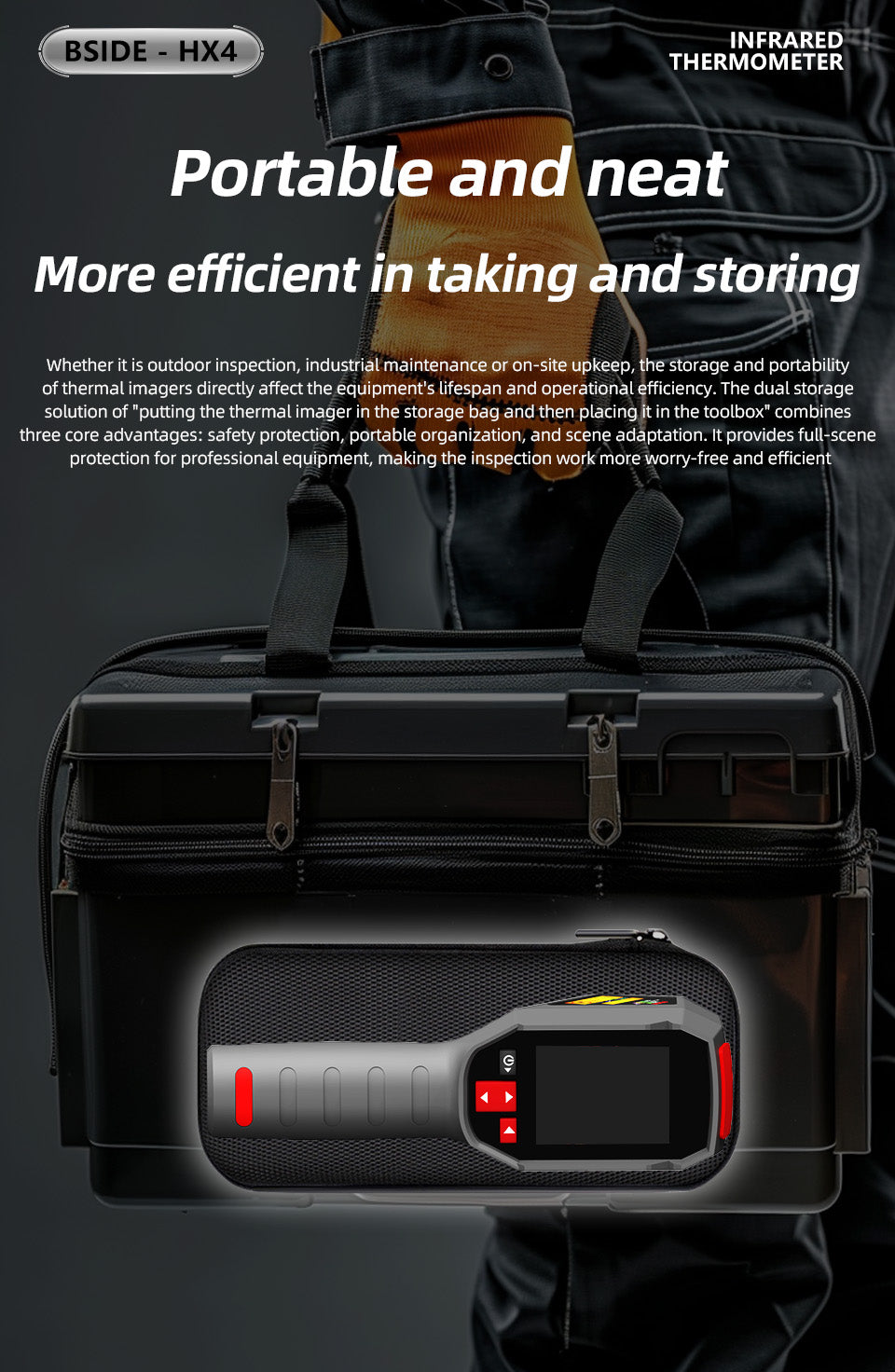

- 1 x Professional Industrial Storage Bag
- 1 x Engineering Operation Instructions
- 1 x Professional Grade Retail Box
