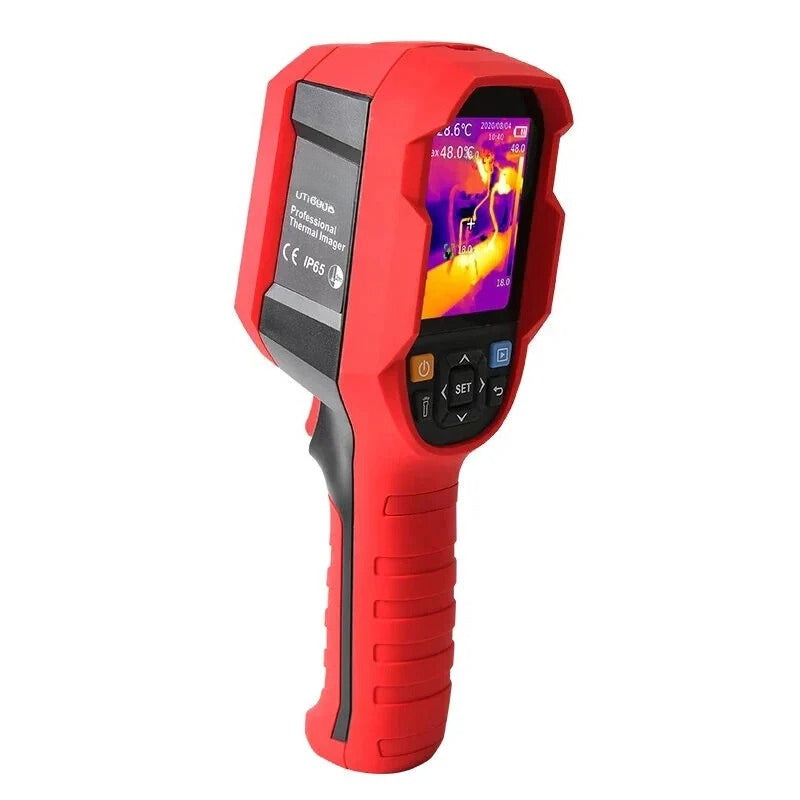

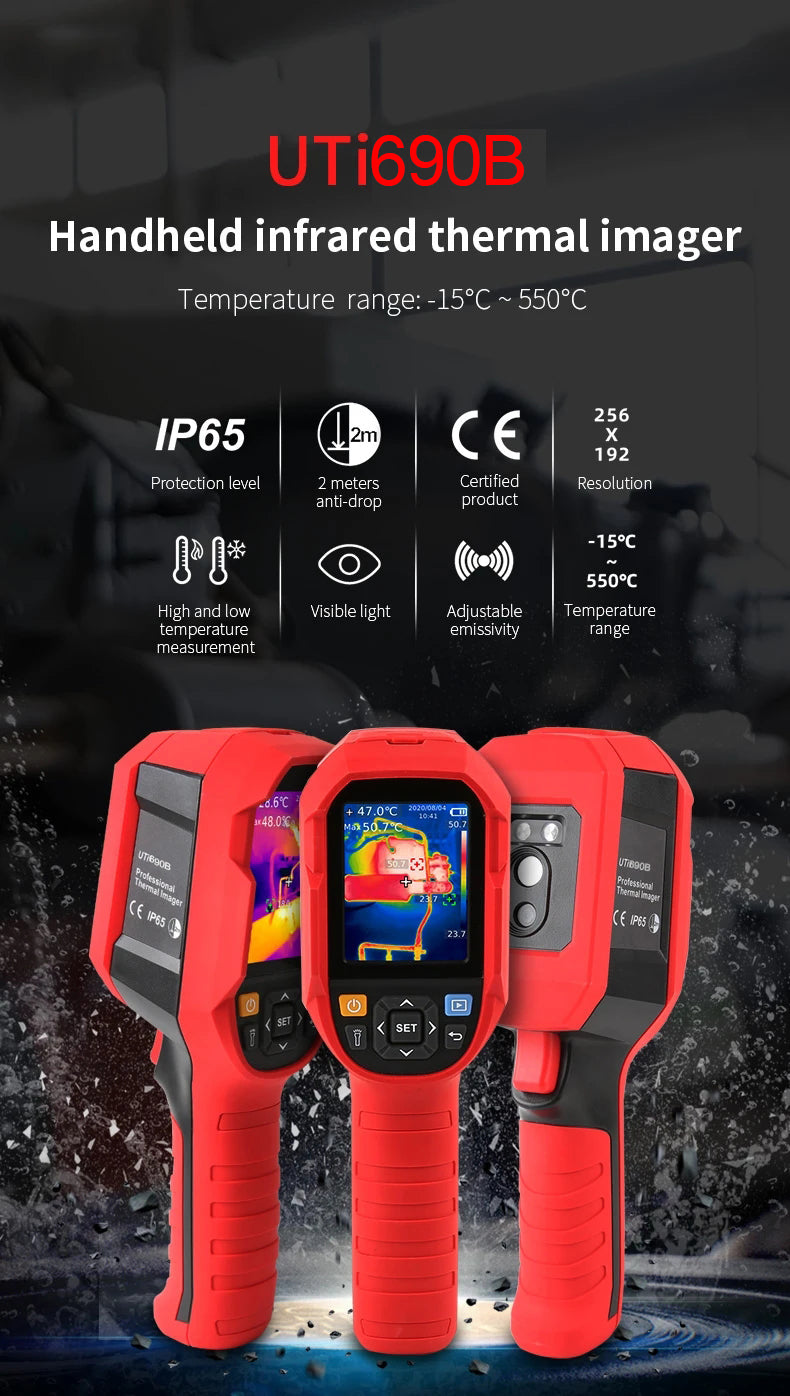

xGreenZech Industrial 690 Pro
High-Definition Professional Thermal Diagnostic Station
Engineering Overview

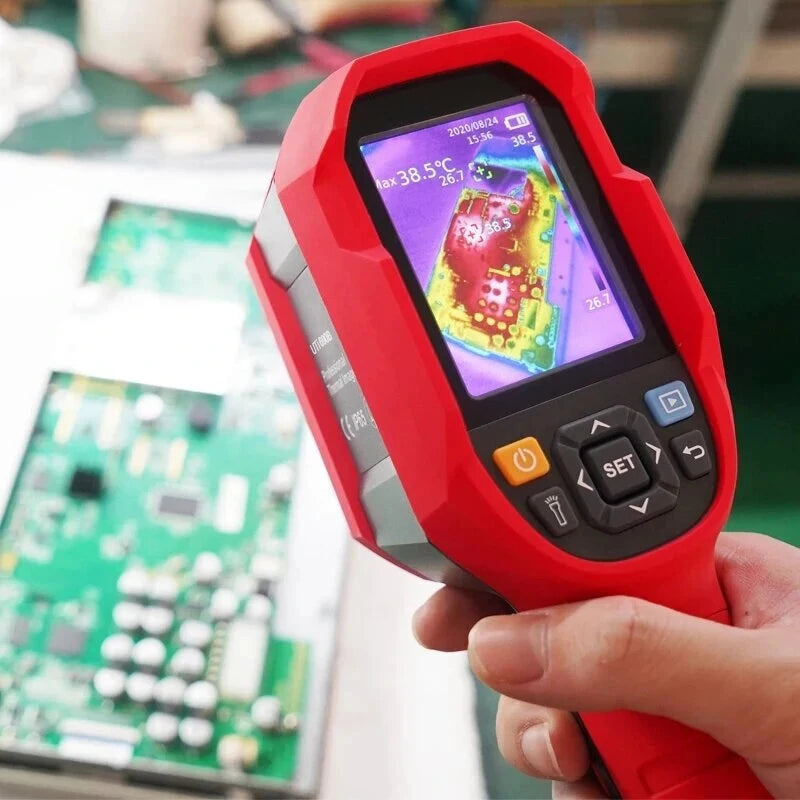

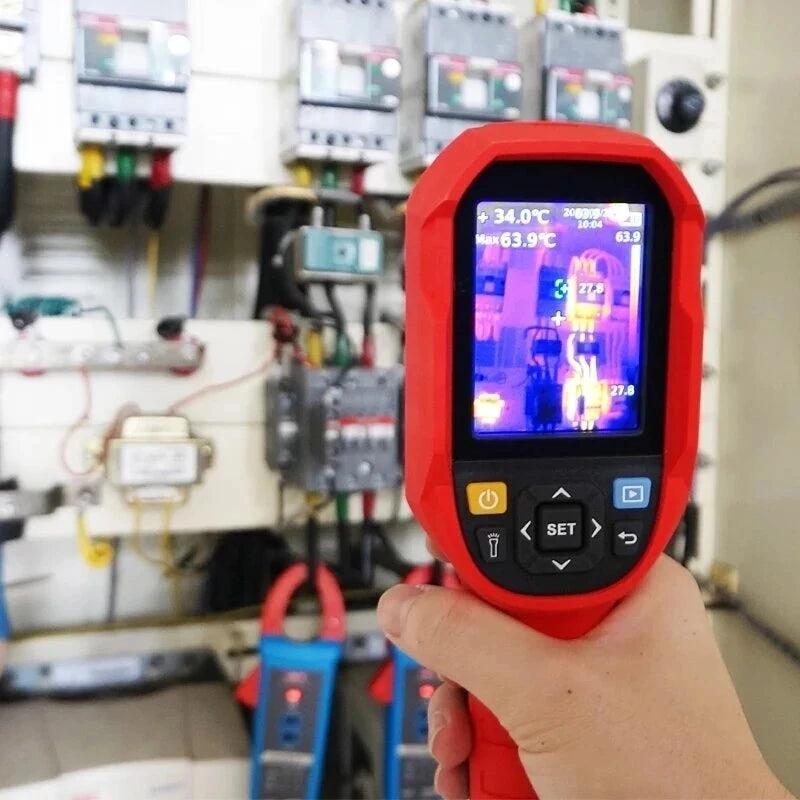

The GreenZech Industrial 690 Pro is a high-performance infrared diagnostic system engineered for elite industrial environments. Featuring a native 256 x 192 high-density thermal sensor, it delivers 49,152 distinct temperature data points for surgical accuracy. Designed for rugged field use, it combines a wide temperature range of -15°C to 550°C with IP65-rated protection and multi-mode imaging fusion. This station is the definitive choice for electrical grid auditing, mechanical troubleshooting, and advanced facility maintenance.

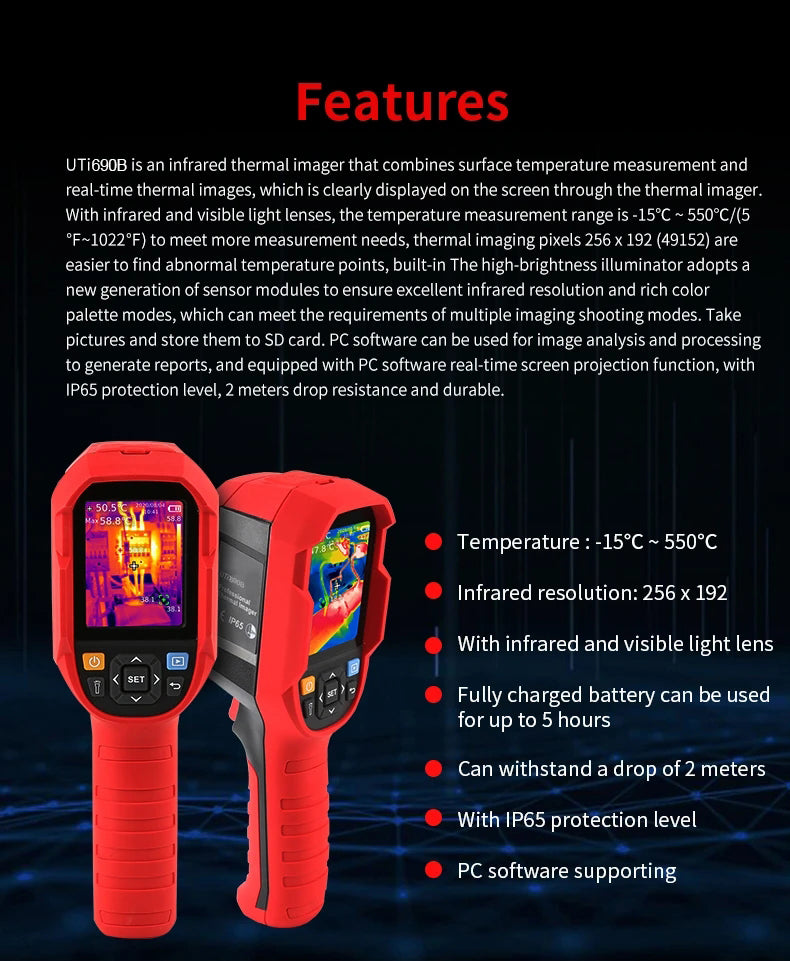

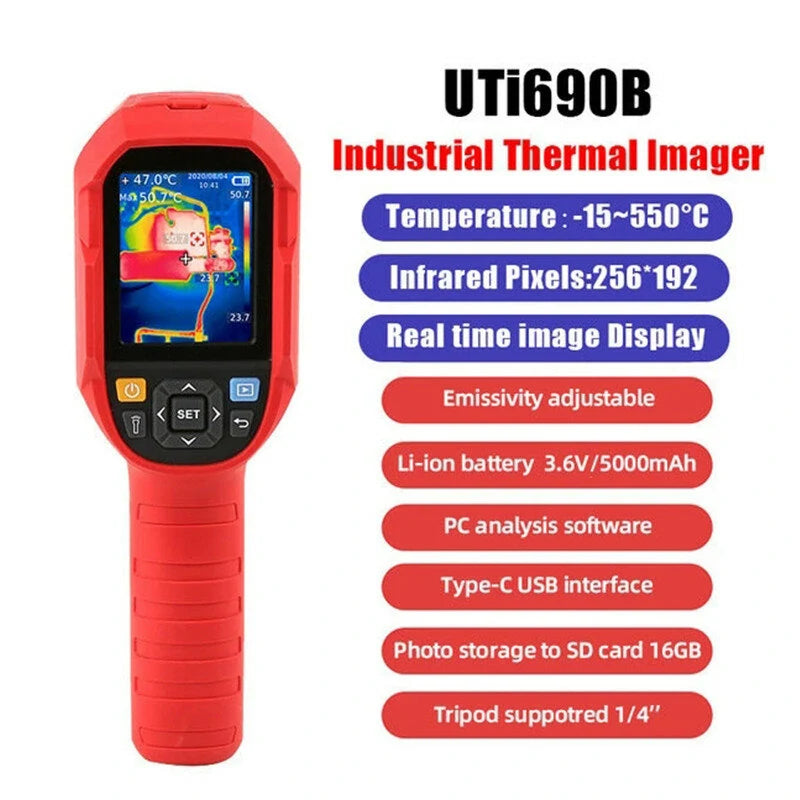

CORE PERFORMANCE ATTRIBUTES
- Ultra-HD Thermal Array: 256x192 resolution paired with a 640x480 visible light lens for superior context.

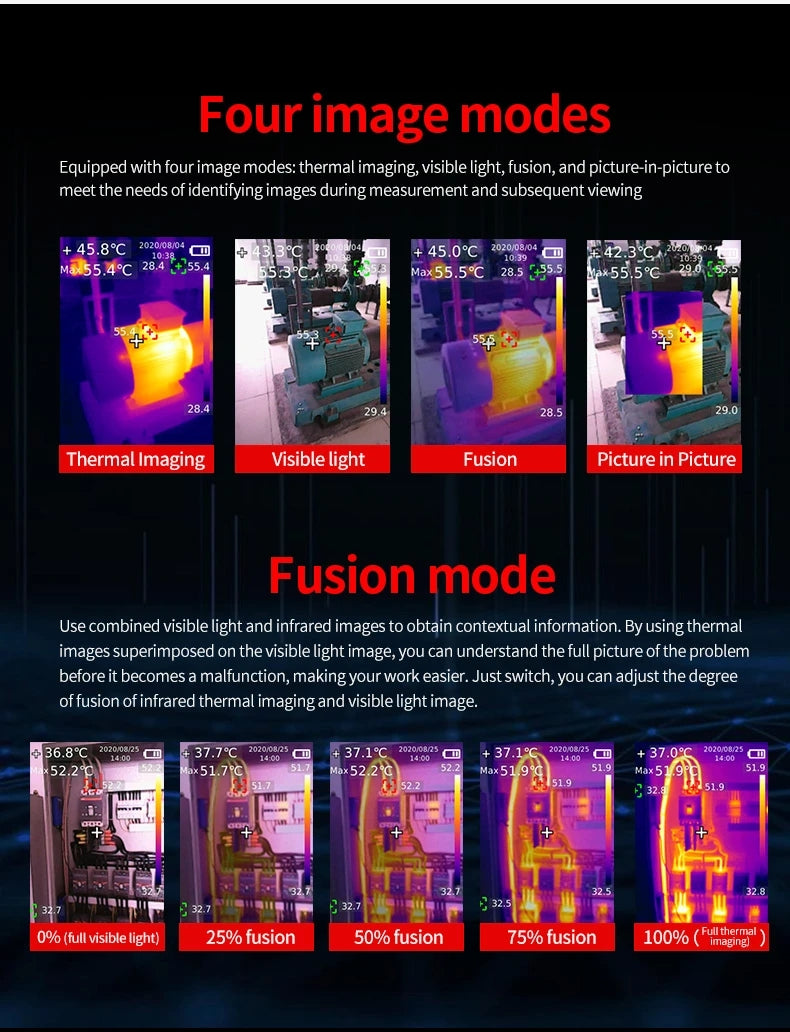

- Quad-Imaging Modes: Seamlessly switch between Thermal, Fusion, PIP, and Visible light for complex analysis.
- Industrial Protection: Certified IP65 waterproof and dustproof with a reinforced 2-meter drop-tested chassis.

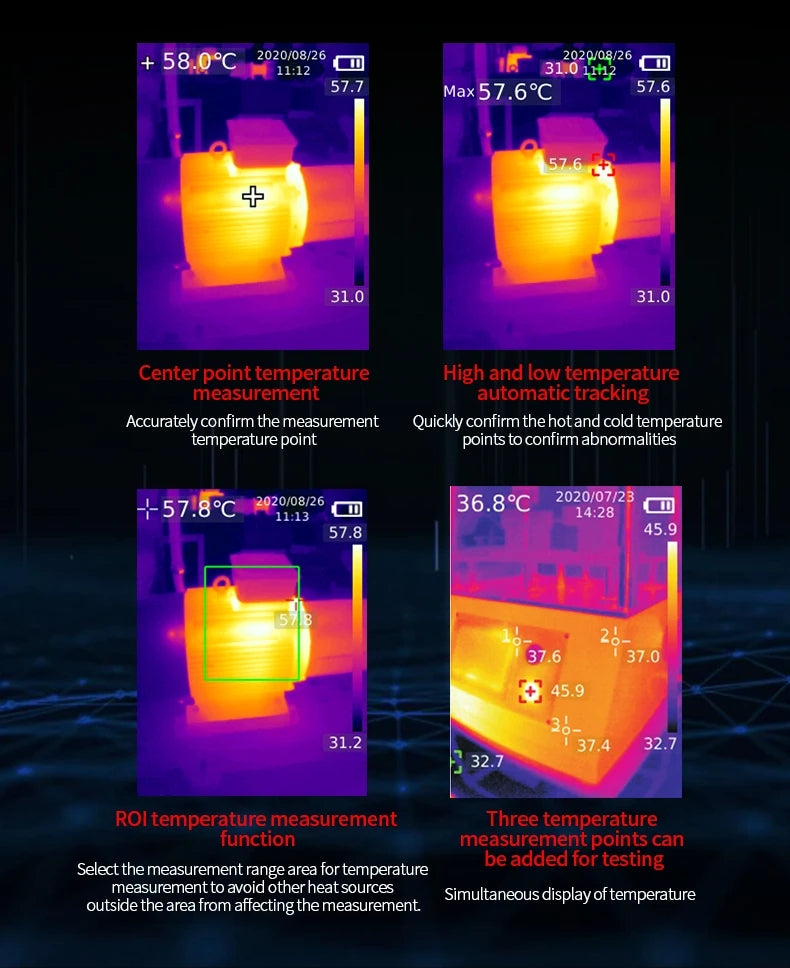

- Precision Tracking: Real-time automatic tracking of center, high, and low temperature points with customizable ROI areas.

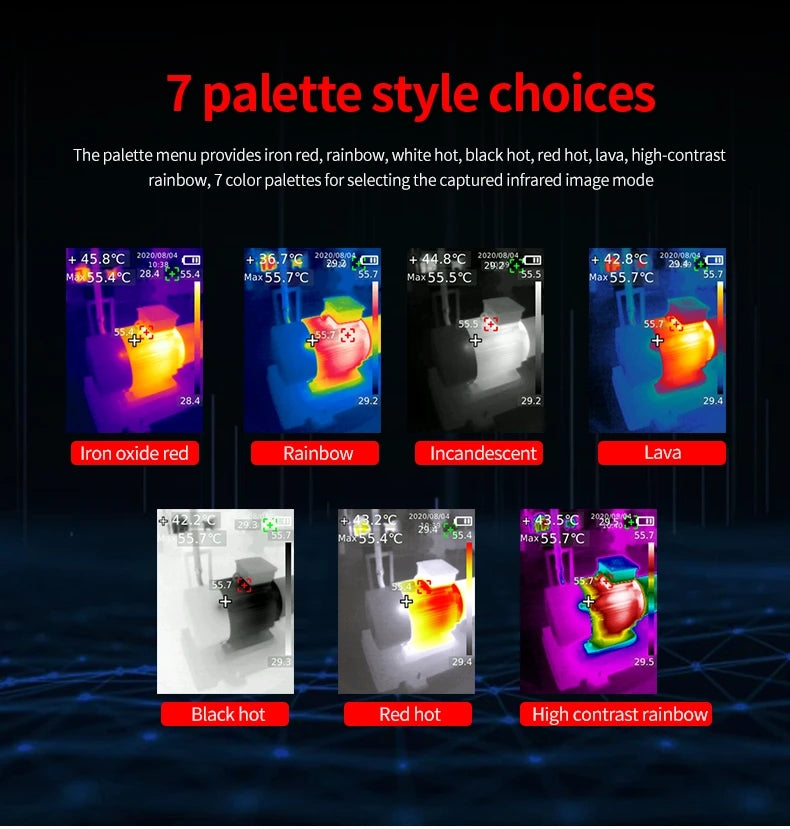

- Professional Palettes: 7 selectable color modes (Iron, Rainbow, White Hot, etc.) for optimized environmental contrast.
- Integrated Logic: Built-in LED fill light and audible/visual alarms for immediate failure identification.

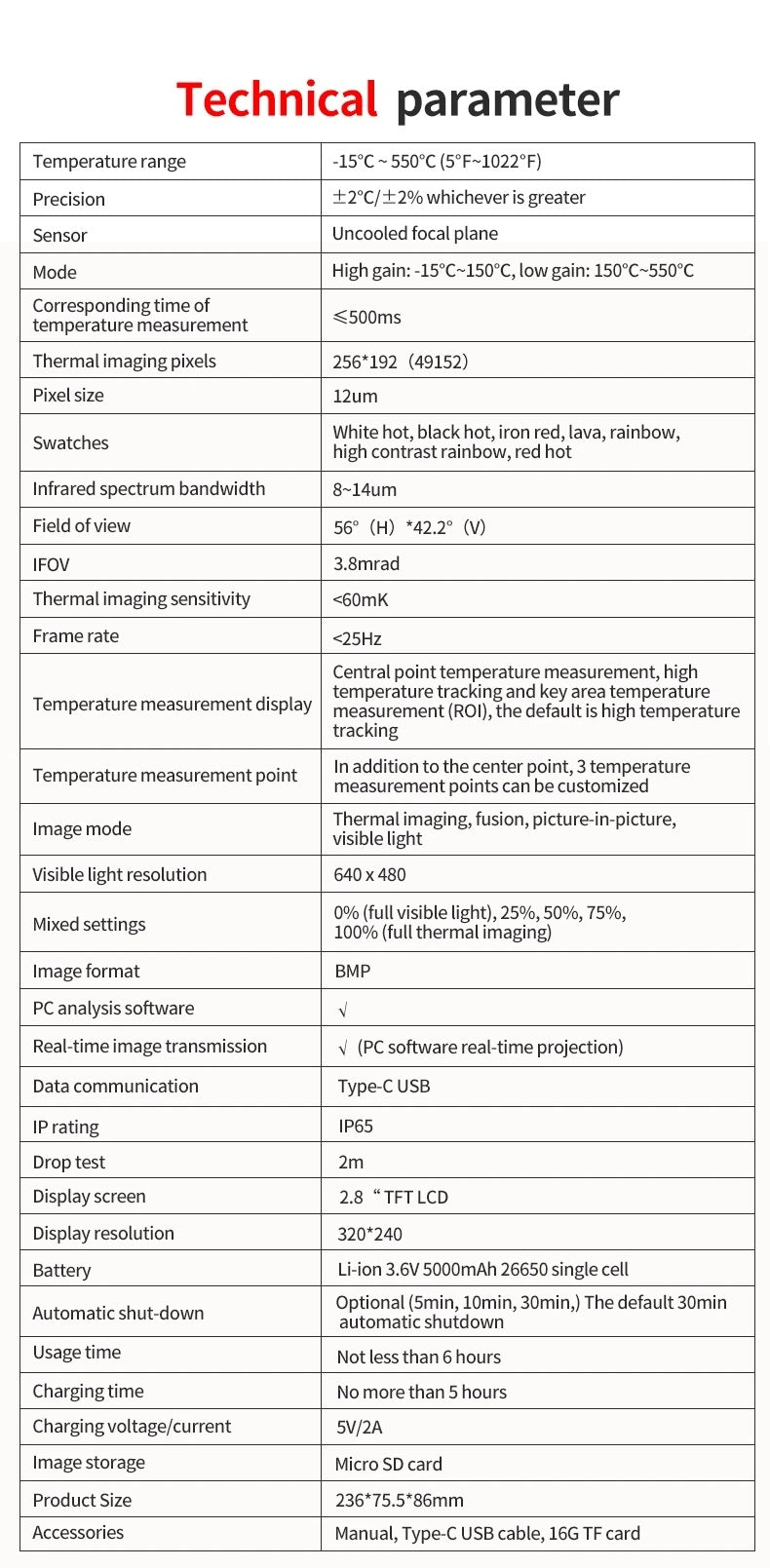

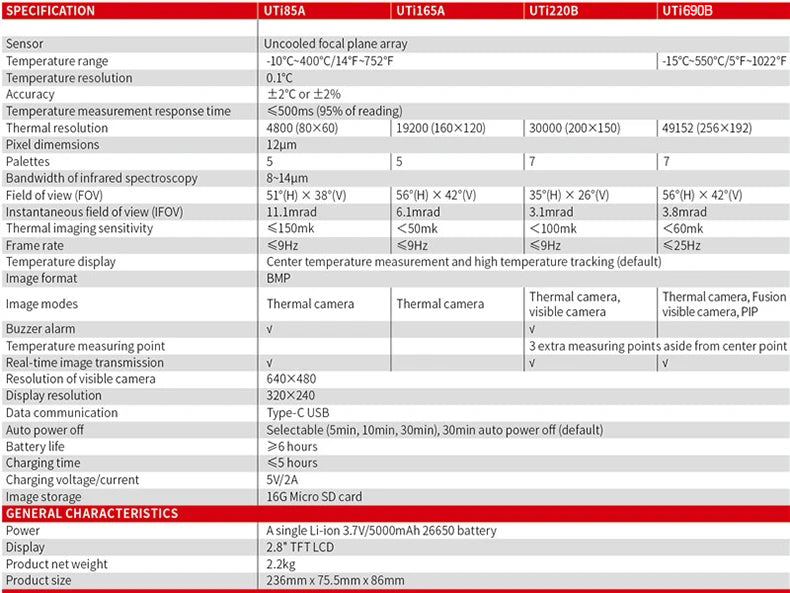

Technical Specifications
| Industrial Parameter | Industrial 690 Pro Rating |
|---|---|
| Thermal Resolution | 256 x 192 Pixels (HD) |
| Visible Light Lens | 640 x 480 Pixels |
| Temperature Range | -15°C to 550°C (5°F to 1022°F) |
| Measurement Accuracy | ±2°C or ±2% (Whichever is greater) |
| Data Analysis | PC Software Compatible / Real-time Transmission |
| Protection Rating | IP65 / 2-Meter Drop Certified |
| Storage Support | 16GB High-Speed TF Card Included |
Professional Package Includes:
- 1 x GreenZech Industrial 690 Pro Thermal Imager
- 1 x High-Speed Type-C USB Cable
- 1 x 16GB Industrial TF Card
- 1 x Engineering User Manual
