xGreenZech Mobile 256 Pro-M
Precision Manual Focus Smartphone Thermal Diagnostic Station
Engineering Overview

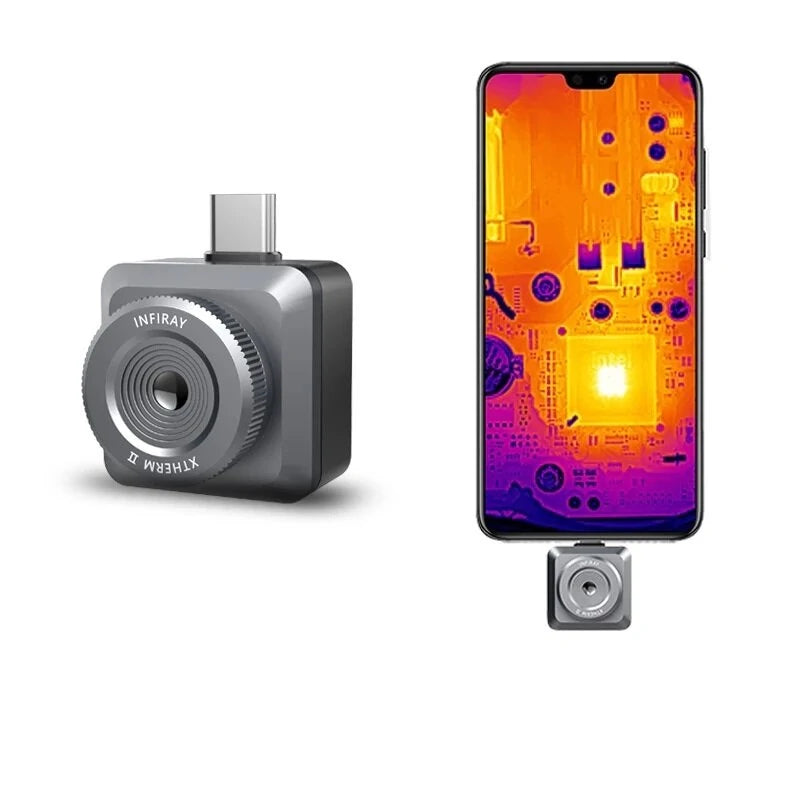

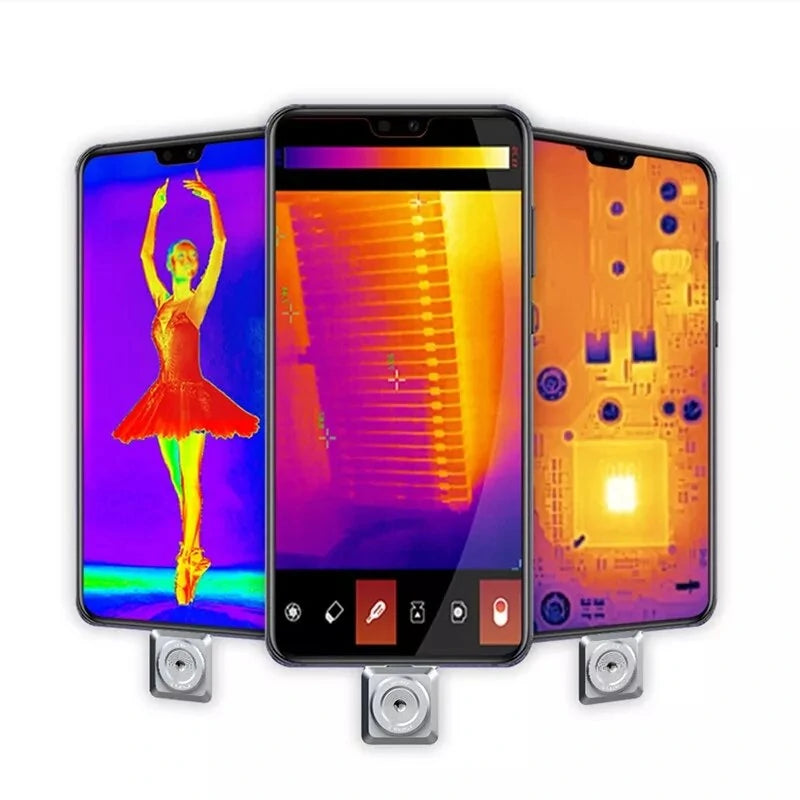

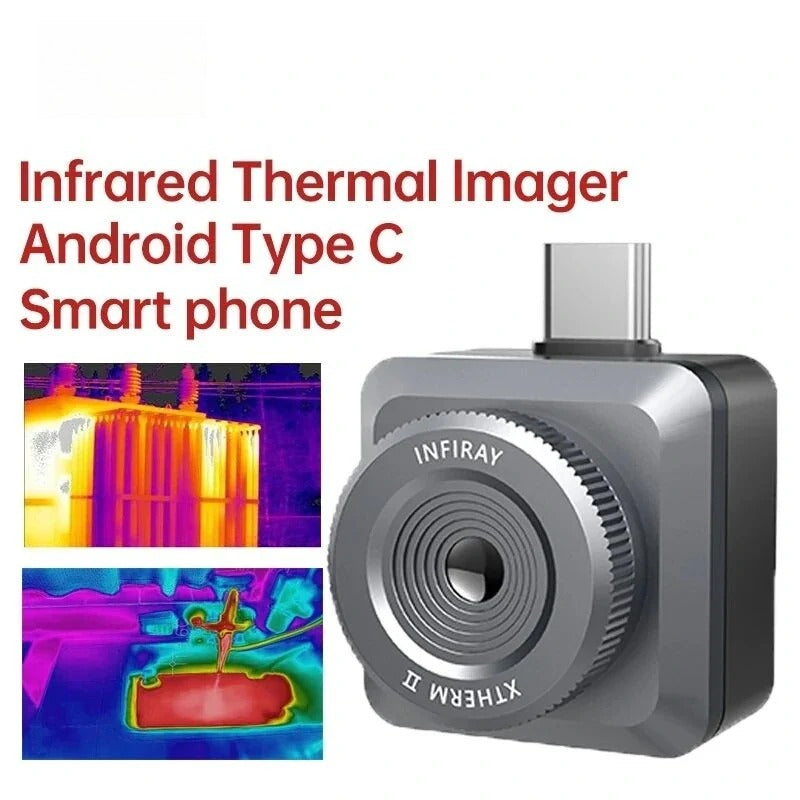

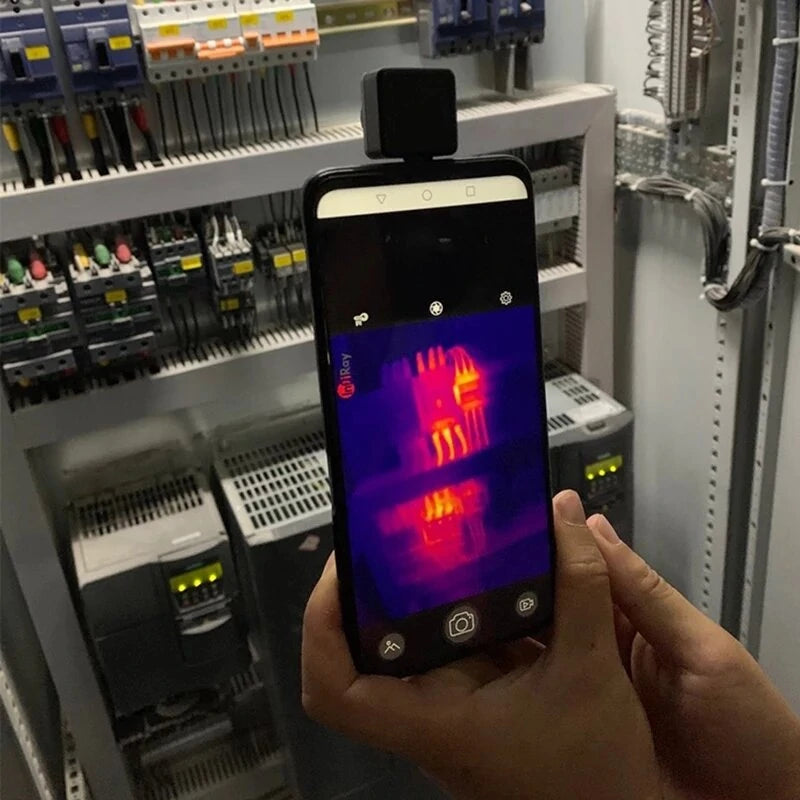

The GreenZech Mobile 256 Pro-M is a professional-grade infrared imaging module designed for technicians who demand absolute control over their diagnostic clarity. Featuring a high-density 256 x 192 sensor and a specialized Manual Focus lens, this device allows for razor-sharp thermal visualization at varied distances. Engineered for precision, it delivers a fluid 25Hz refresh rate and advanced Digital Detail Enhancement (DDE), making it the definitive choice for PCB circuit troubleshooting, floor heating diagnostics, and industrial safety inspections.
CORE PERFORMANCE ATTRIBUTES
- Professional Manual Focus: Adjustable lens for pinpoint clarity on microscopic components or distant facilities.
- HD Infrared Array: 256x192 resolution with a 12μm pixel pitch for elite thermal sensitivity.
- Fluid 25Hz Refresh: Smooth real-time video without lag, essential for dynamic temperature tracking.
- Ultra-Compact Mobility: High-density engineering in a minimal 18g chassis for total field portability.
- Advanced Image Enhancement: Integrated DDE technology provides superior edge detection and thermal contrast.
- Comprehensive Statistics: Supports real-time tracking of max, min, and center temperature points, lines, and areas.
Technical Specifications
| Industrial Parameter | Pro-M Standard Rating |
|---|---|
| Thermal Resolution | 256 x 192 Pixels |

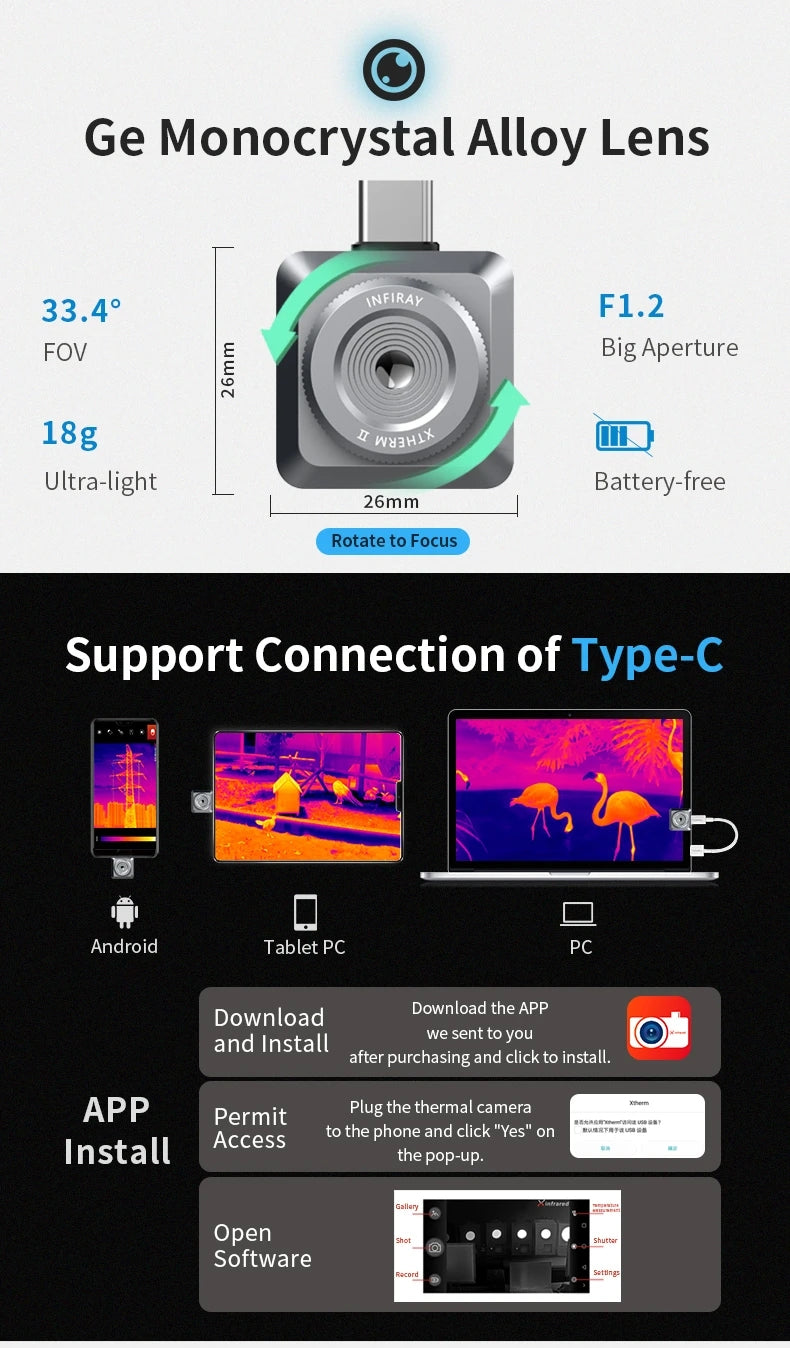

| Focusing Mode | Professional Manual Focus |
| Frame Rate | 25Hz (Real-Time Fluidity) |
| Temperature Range | -20°C to +120°C |
| Accuracy | ±3°C or ±3% of reading |
| System Compatibility | Android 6.0 and above (USB Type-C OTG) |
| Dimensions / Weight | 26 × 26 × 26.6 mm / 18g |
| Power Consumption | < 350mW (Powered by Smartphone) |
Compatibility Note:
This device requires a smartphone with USB Type-C OTG functionality. While compatible with most modern Android devices, certain legacy or specific models (including Samsung A41, A13, A31, A12, A32, A11, Note 10, S21, S20) may not be supported. For older devices with Micro-USB, a Type-C to Micro-USB OTG adapter is required.
Professional Package Includes:

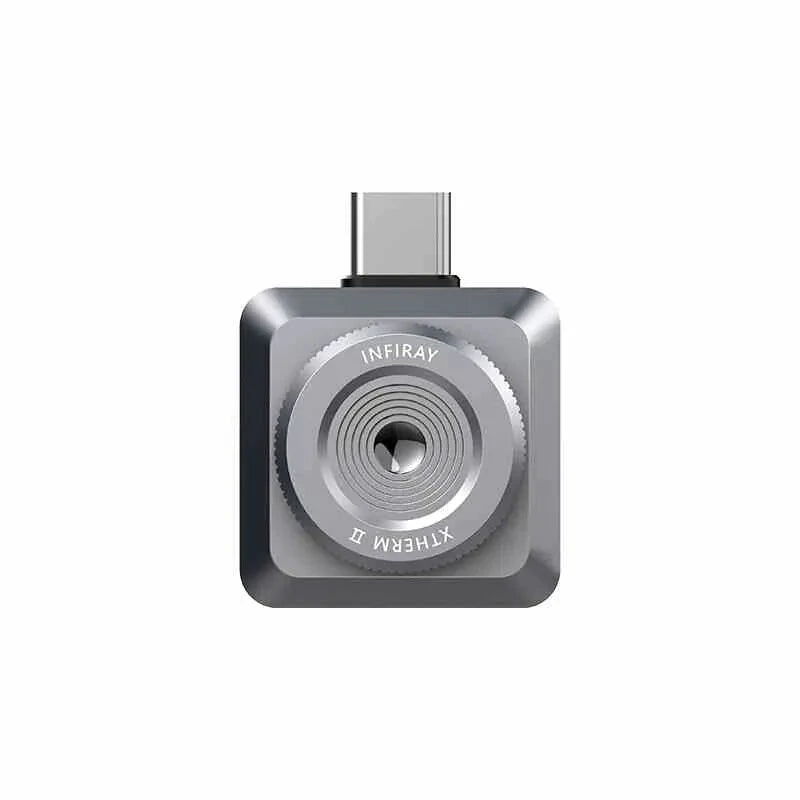

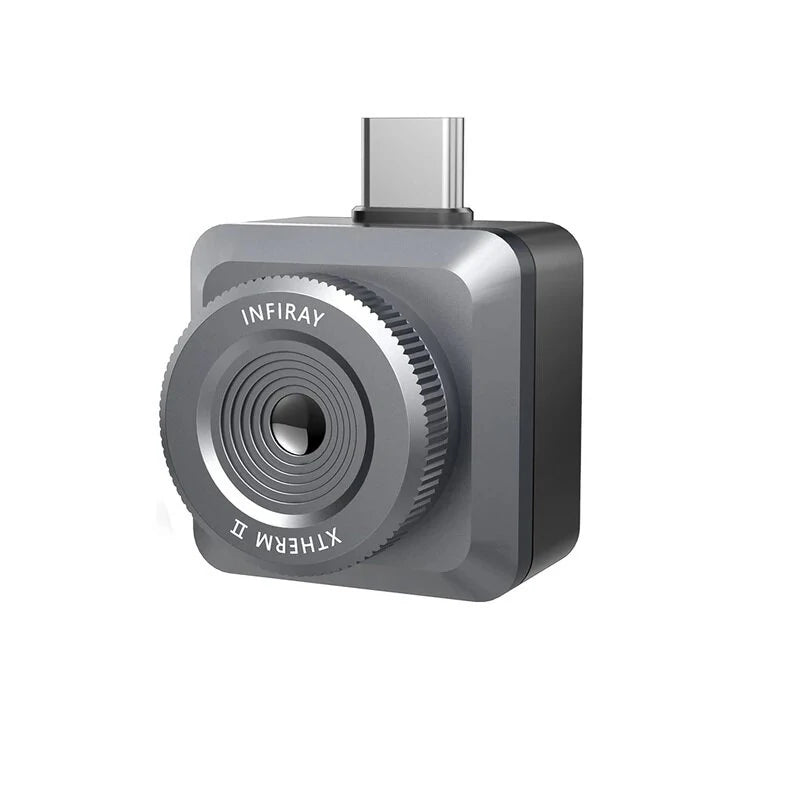

- 1 x GreenZech Mobile 256 Pro-M Thermal Imager
- 1 x High-Speed Type-C Connection Cable
- 1 x Engineering Operation Manual
- 1 x Industrial Protective Packing Box
