Description
x
Features:

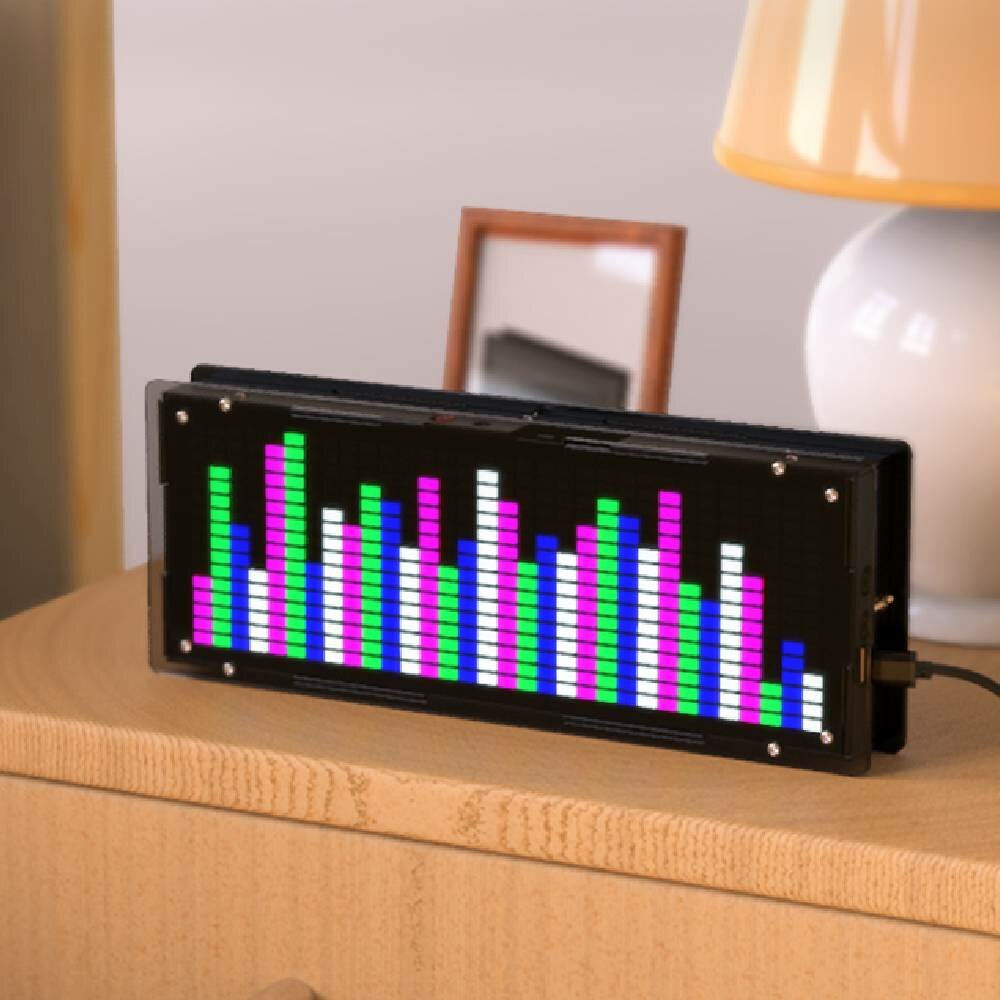

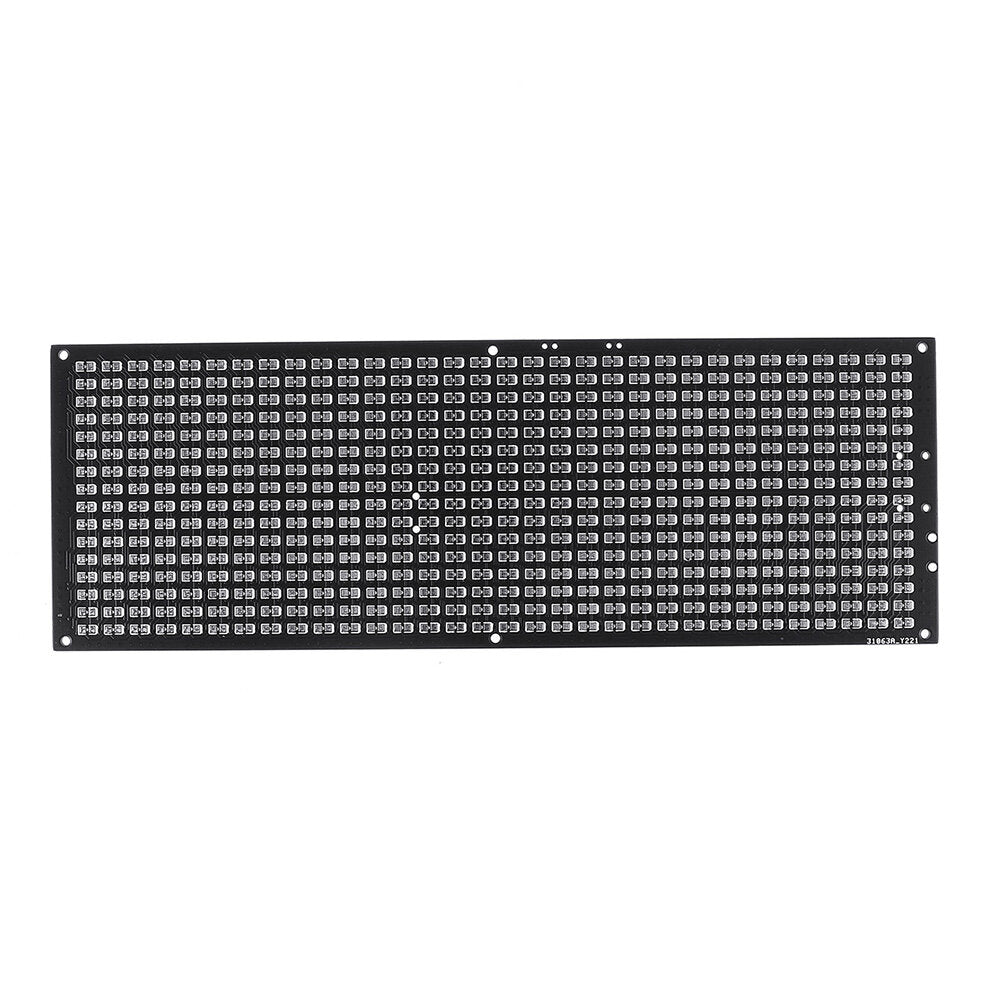

- LED dot matrix module display time, temperature, date, week and other information;

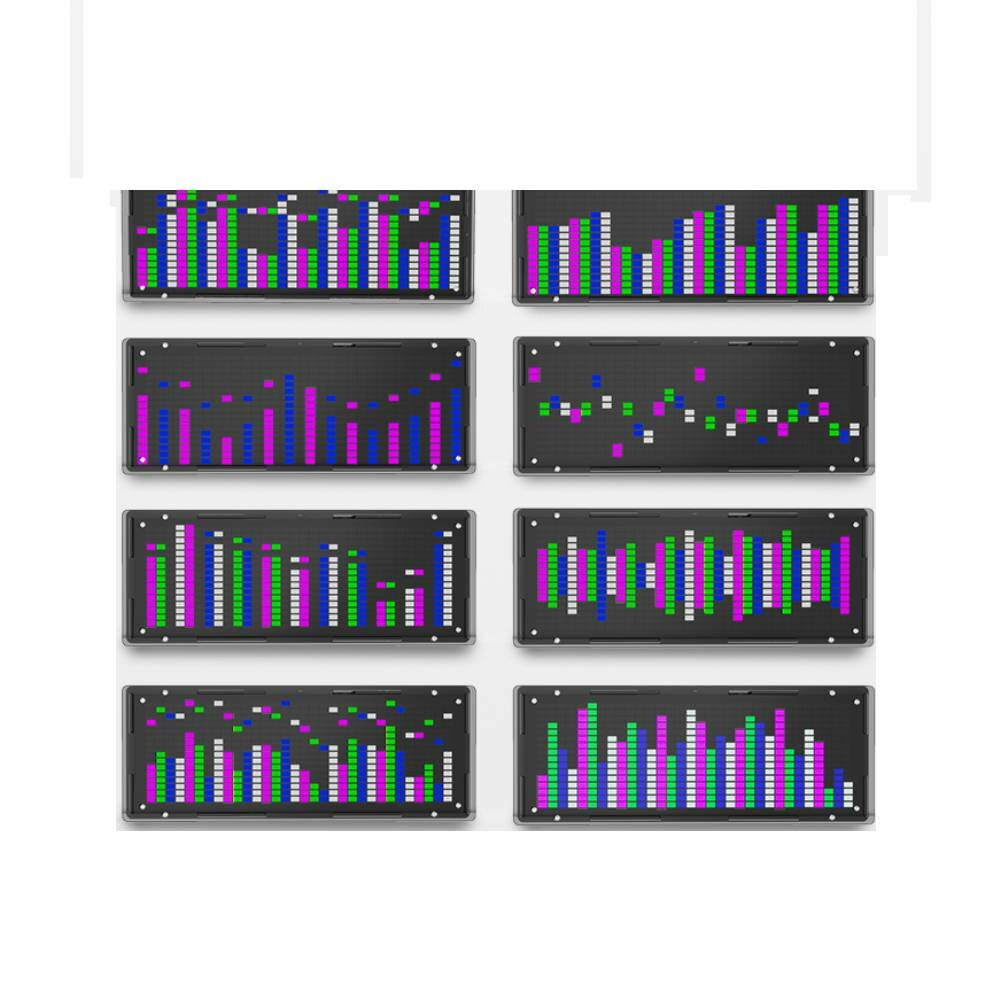

- 8 different spectrum effects.
- 7 different clock effects.
- 8 levels of brightness adjustment function, built-in photoresistor, can automatically adjust the brightness according to ambient light, can also specify the brightness;

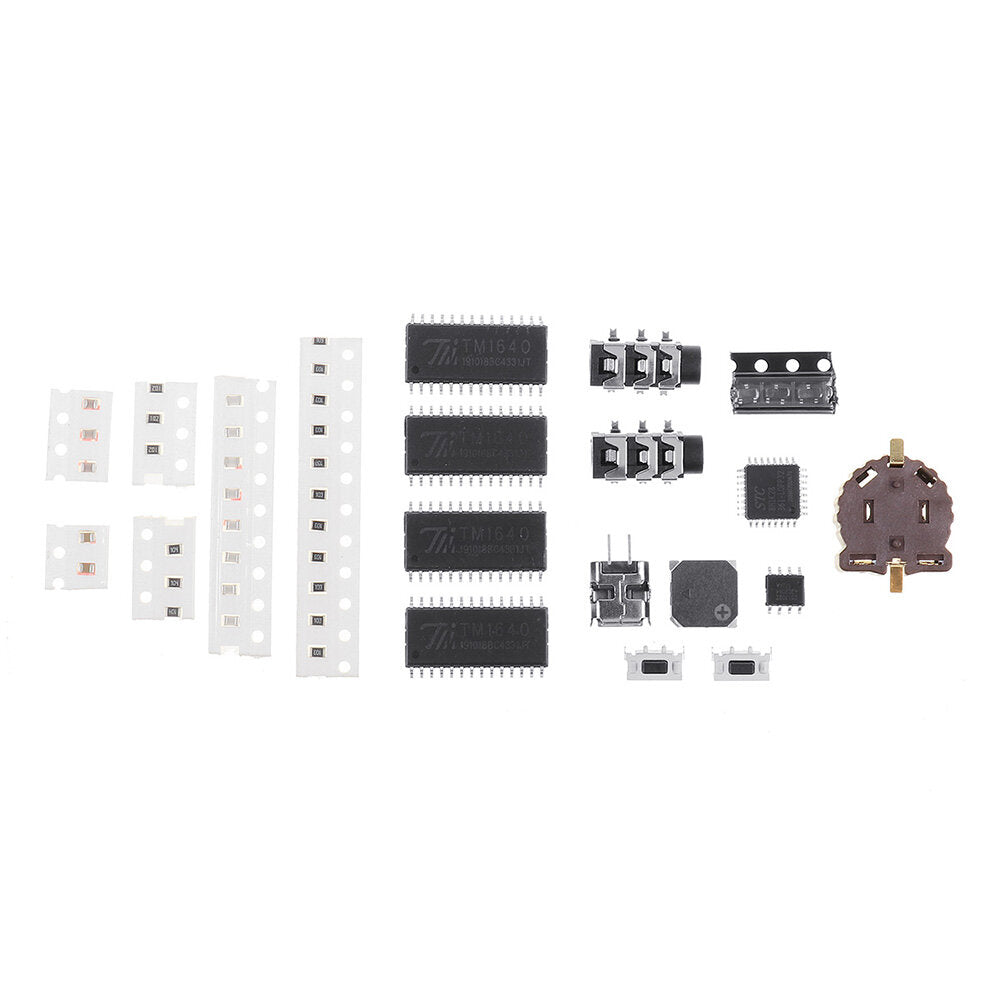

- with LED driver TM1640 Passive buzzer.

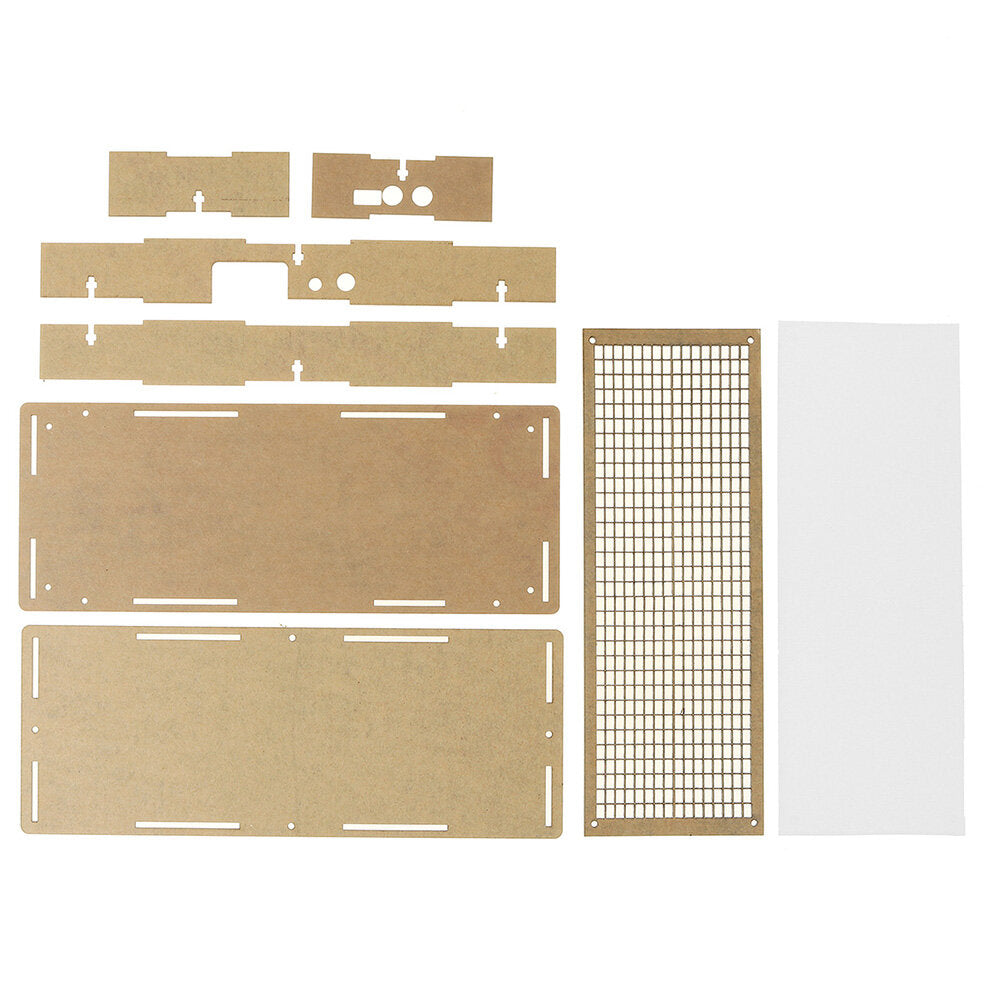

- with Acrylic shell;

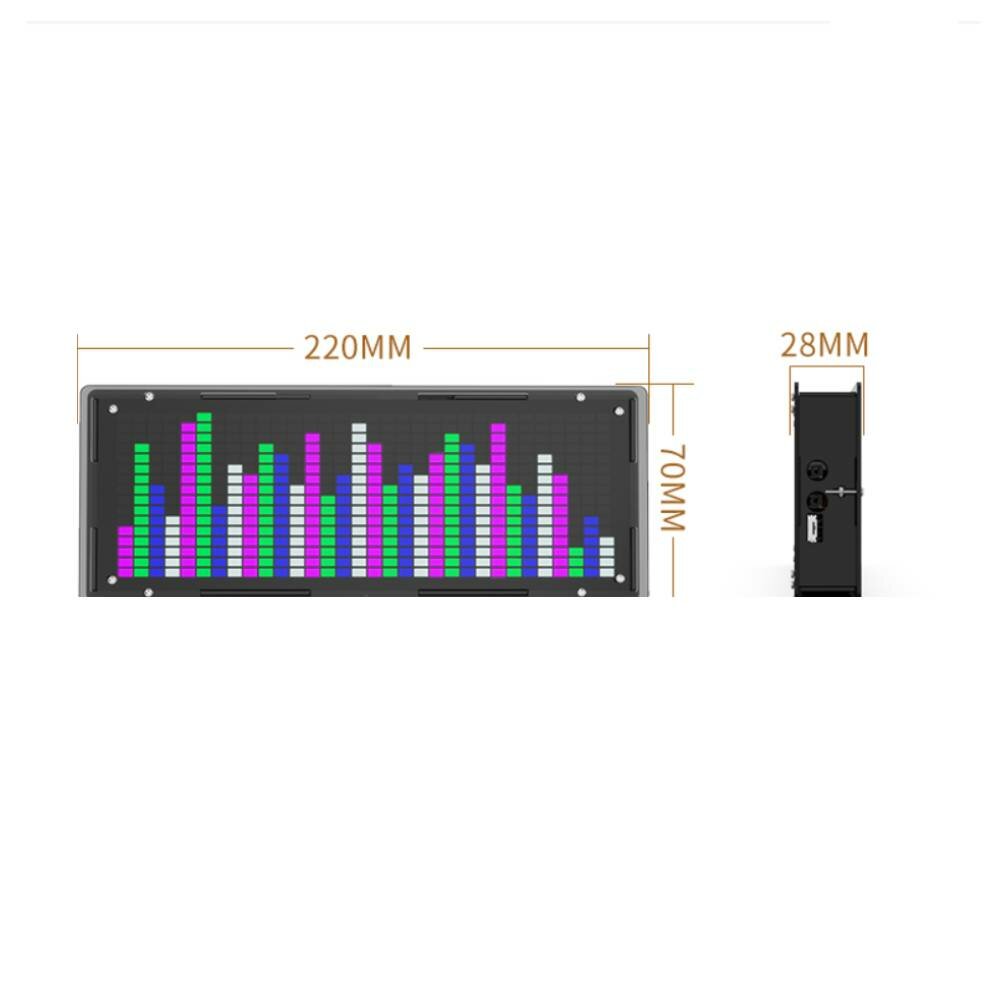

- Overall size: 220mm x 70mm x 28mm;
Note:
- Power supply: DC 5V voltage, can use computer or mobile phone charger power supply, pay attention not to use power supply higher than 5V, otherwise it will burn out.
- In spectrum mode, if the audio cable is not connected to the mobile phone or computer, it is prone to interference.
- In spectrum mode, the volume should be more than 50% as far as possible, otherwise the volume will be too low to distinguish.
- In the menu setting, gain is the spectrum gain. If the spectrum jitter is too low, the gain can be adjusted up (or the volume can be adjusted up). If the spectrum is full, the gain can be adjusted down (or the volume can be adjusted down).
Instructions:
- Check debug mode:
First press and hold the left key, and then plug in the power.
Enter the full light check mode, and check whether the LED is not on in this mode (to exit this mode, power off and restart is required).
- Normal use mode:
Long press the left key to switch the spectrum display and time display.
- In spectrum mode:
Right click to switch the spectrum style.
- In clock mode:
Short press the left key to enter the menu bar settings.
Right click to set function options.
Time: set the current time, minutes and hours.
Mode: 1-7 time display styles.
Clock: alarm clock is set for 1 minute, the last one is to turn on alarm clock, and 0 is off.
Clock: alarm clock is set for 2 minutes, the last one is to turn on the alarm clock, and 0 is off.
Lock3: alarm clock is set for 3 minutes, the last one is to turn on the alarm clock, and 0 is off.
Bell: alarm ring selection.
Lum: brightness setting, level 1-8 brightness, 0 is automatic brightness mode.
T/c: when set to 1, time and temperature switch in turn; when set to 0, temperature is not displayed.
Gain: music spectrum gain, the larger the number, the greater the jump amplitude (in case of easy full screen, decrease the gain in the setting).
Package Included:

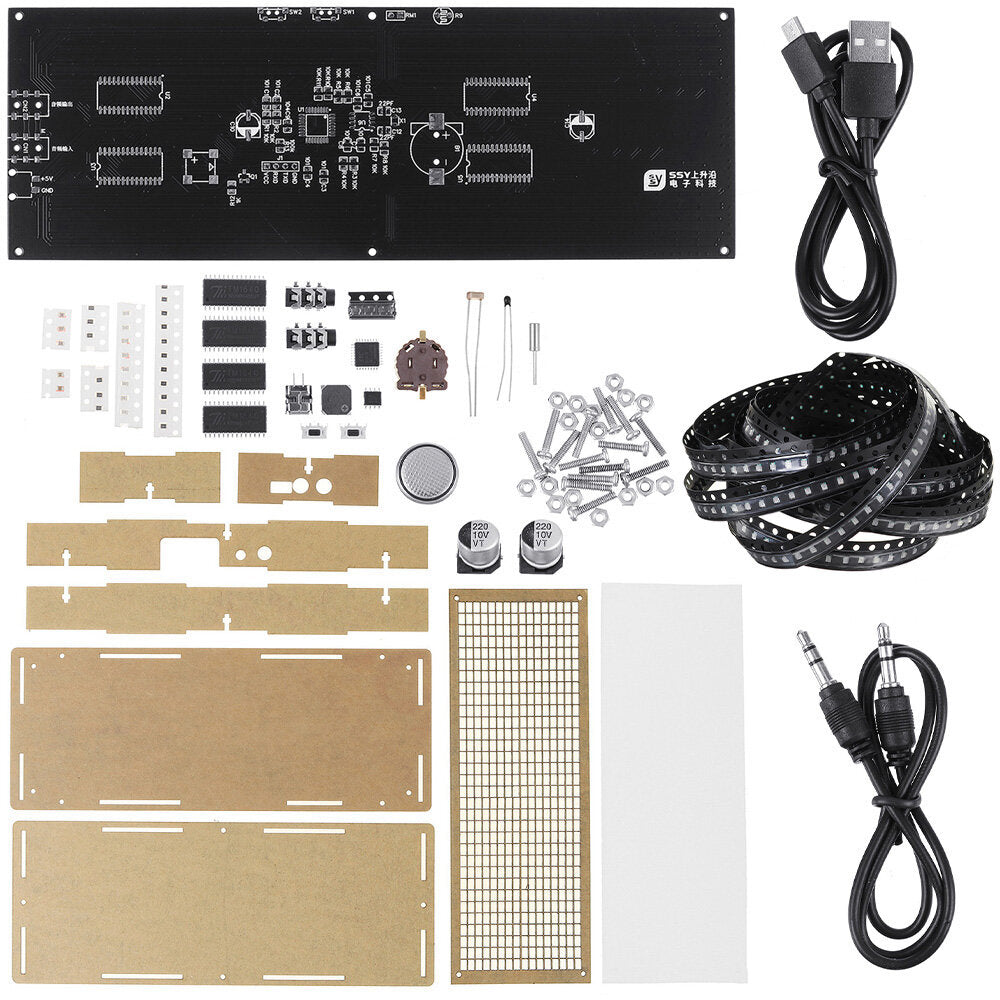

1 x DIY Spectrum Clock Kit
