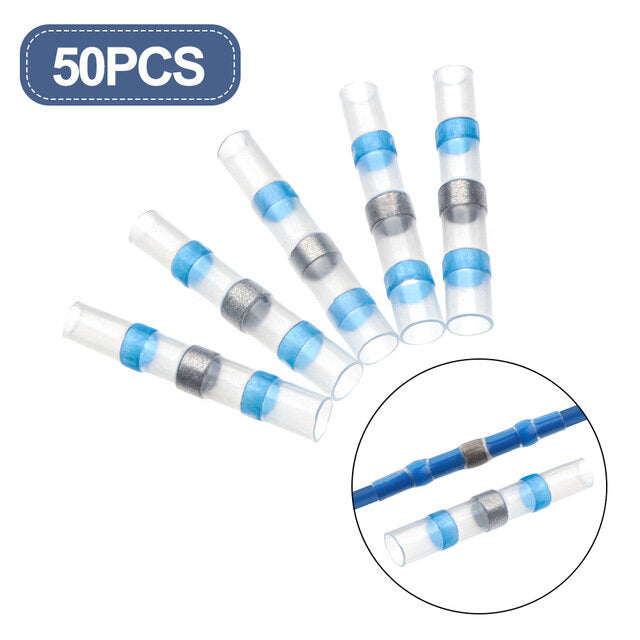

50PCS Solder Seal Wire Connectors Waterproof Heat Shrink Butt Connectors Electrical Wire Terminals Insulated Butt Splices

Features:
-EASY AND FAST PROCESS: All-in-one step solder and seal process. No need for crimp tools and soldering machine. Timer and mess saver.
-WATERPROOF AND INSULATION: Dual-walled design - Outside Polyolefin tubing provides insulation and improves pullout strength; Hot Melt Adhesive & Solder inside ensures wires tightly connected and avoids wires slipping out of the terminal.
-STAY ORGANIZED: Our connectors come within a storage box, easy to store and carry. Color-coded tubing makes it easy to identify the right size of the connector for every application.
-WIDE APPLICATIONS: Shrinking ratio: 3:1. Ideal used for Automotive, Boat, Marine and other Outdoor Applications.

Specification:
Quantity: 50PCS;
Material: Tinned Copper;
Voltage: Max. 600V;
Shrink Ratio: 3:1;
Start Shrink Temperature: 80 ℃;
Fully Shrink Temperature: 130 ℃;
Operating Temperature: -55 ℃ -125 ℃.

Size:
YELLOW 12-10 A.W.G 4.0-6.0mm²;
BLUE 16-14 A.W.G 1.5-2.5mm²;
RED 22-18 A.W.G 0.5-1.0mm²;
White 26-24 A.W.G 0.25-0.34mm².

Package Included:
50pcs Solder Seal Wire Connectors.
