DESCRIPTION
Features:
1. The high-precision clamp head accurately measures the induction, and the jaws can be opened with a diameter of 36mm and can be accurately stuck.
2. Comes with test pen, grade 1000V/10A test pen overall length 95cm, PVC/brass material is safe and durable.
3. The soft silicone buttons are comfortable to the touch and have a strong sense of pauses, which is actually ergonomic.
4. High-definition backlit screen: LCD digital display is clear, the larger the count, the higher the precision.
5. Diversified measurement functions are complete, which can measure a variety of electronic components to meet your multi-functional needs.
6. LED flashlight lighting, in the dark environment, no longer afraid to see the measurement position, to eliminate the risk of electric shock.
7. 600A AC current, high-precision induction clamp head, accurate measurement, select the A current gear, clamp the single-strand wire, and measure the current without puncturing.
Function:
AC voltage: 1V-600V 0.00V-1V ±(1.5%+8d).
DC voltage: 1V-600V 0.007V-1V ±(1.2%+5d).
AC current: 1A-600A 1mA-0.1A ±(2.8%+8d).
Resistance: 0Ω-60MΩ 0Ω-10KΩ ±(1.2%+5d).
Capacity: 100P-40mF 1pF-10uF ±(6%+10d).
Hz Frequency: 10Hz-20MHz 0.1Hz-10kHz ±(4.0%+10d).
NCV: Support.
Shut-down: Support.
Data retention: Support.
low battery indicator: Support.
Diode: Support.
Buzzer: Support.
Real-time temperature: Support.
Range: Automatic.
Battery: 2xAAA batteries (not included).
Material: ABS.
Max count: 6000 count.
Screen: HD backlit screen.
Jaw opening size: 36mm/1.41in.
Overall length of the pen: 95cm.
Pen material: PVC/brass.

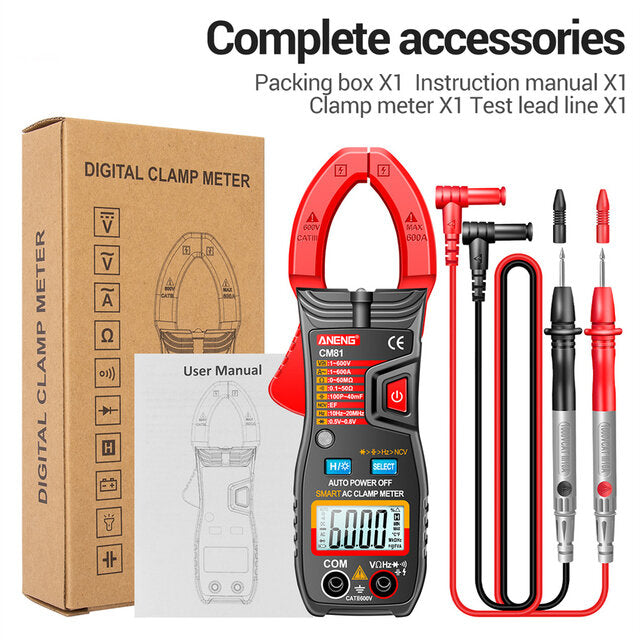

Package included:
1 x Digital Multimeter(Not included battery);
2 x Test leads;
1 x User Manual.
