DESCRIPTION
Features:

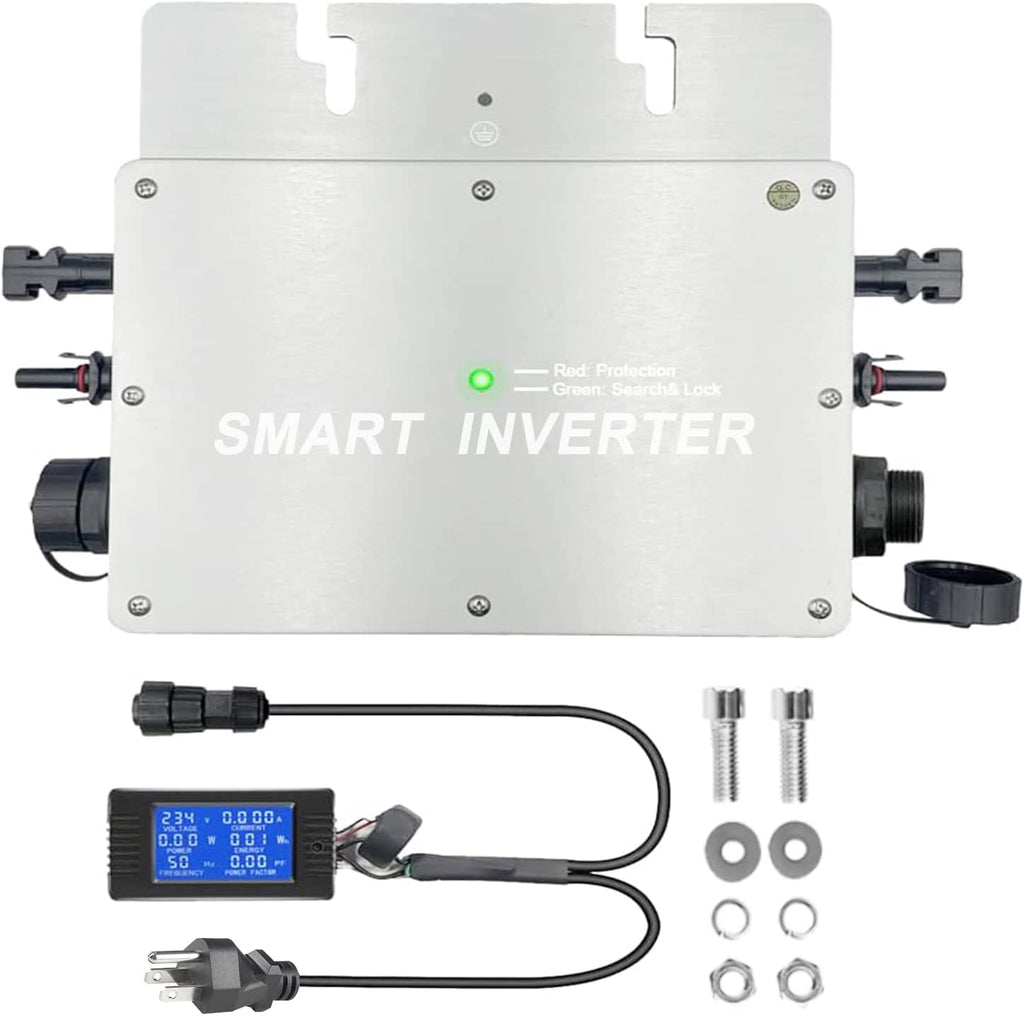

Grid tie inverter micro inverter 700W:
Maximum Power Point Tracking (MPPT)---high-precision (MPPT)operation power, automatic and immediate adjust the solarpanels output power at the maximum output point,made the inverter discharge to power grid with the highest efficiency.
Synchronous High-frequency Modulation 1.Modulation synthesis: half wave and full-bridge modulation synthesis (100Hz/120Hz); 2.Synthetic way: MOSFET full-bridge; 3.High frequency: 50KHz.
Pure Sine Wave Output---Use SPWM directly to make pure sine wave output.1.Output waveform:Adopt complementary PWM to push-pull pure sine wave, 2.Generate means: enhancement-mode SPWM.
Power Automatically Locked (APL)--- automatically powers locked in maximum power point, made output more stable.
Constant Current,Constant Power---constant current and output power,without any overload, over-current phenomenon.
Exactly and timely automatic lsland Effect Protection.
High-Frequency High Conversion Rate---Adapt high frequency converter, the output more efficient.
6-grade power search-n overcast weather, the PV Panel s output current is extremely tiny, then inverter will automaticopen 6-grade power search function,and keep outputing efficent and steady during the low power.
Wide voltage input(22-50VDC)-1.DC voltage input22~50VDC; 2.Second level power variable voltage conversion.
High-frequency two-way and one-way grid function---1.High frequency direct modulation,AC half wave synthesis; 2.Two-way grid means: Load consume directly. And can reverse AC current transmission.
Kinds of frequency output function---1.t can apply to 50Hz and 60Hz frequency of AC;2.Frequency range: 45Hz~64Hz,Directly connected to the solar panels (do not need to connect the battery).
AC 0 angle with high precision auto-detection---High-precision analysing the AC phase angle.The phase shift rate is less than 1%, thus achieve high-precision with phase modulation AC output together, 1.ACphase shift:<1%; 2.Over-zero protection: 0.2 V AC; 3.AC switching: 50Hz /60Hz.
Stack using---Such as:.4 micro inverter of 260W stacking can achieve 1040W. the number of the stacking is unlimited.
DC input--Input voltage range: 22V to 50VPV Panel: Recommend using the power more than 30W and the standard voltageof 36V PV panels.Suggestion making the PV in parallel. AC output---220VAC: 180v- 262V,50HZ; 110V AC: 80V - 160V,60Hz.
Grid tie inverter micro inverter 1400W:
▶ 1400W Micro Inverter Solar Grid Tie Microinverter IP65 WiFi Control Self Cooling 120 Automatic Identification Power Inverters，High frequency direct modulation and 6-grade power search design micro inverter--In overcast weather, the PV Panel’s output current is extremely tiny, then inverter will automatic open 6-grade power search function, and keep outputing efficent and steady during the low power.
▶ 99.5% HIGH EFFICIENCY Grid tie inverter --Maximum Power Point Tracking(MPPT)---high-precision (MPPT)operation power automatic and immediate adjust the solarpanels output power at the maximum output point,made the inverter discharge power with the highest efficiency.
▶ solar micro inverter which can Directly connected solar panels (do not need to connect the battery),microinverter Support Wide Solar Power input(22-50VDC Voltage, 1400W Solar Power), Output: 50Hz/60Hz(45Hz ~ 64Hz ), 1400W 110VAC.
▶ waterproof inverter with Exactly and timely automatic lsland Effect Protection, Adopt complementary PWM to push-pull pure sine wave, Constant Current, Constant Power---constant current and output power without any overload, over-current phenomenon.
▶ grid-tie micro-inverter 110V，Stack using Inverter---- Such as: 4 micro inverter of 260W stacking can achieve 1040W. the number of the stacking is unlimited.
Specification:
PV input connector: 2.
Rated voltage: 120V.
Model: 700W Grid tie microinverter.
MPPT Tracking voltage: 28~40V DC.
Recommend the use of PV: 2×35ow & vmp> 30V & voc <5ov.
Maximum input power: 2×35oWatt (total 700W).
Maximum input Dc voltage: 54v.
PV Operating voltage range: 17-50v.
Min / max starting voltage: 22V/50V.
Maximum input operate current: 30A.
Output Peak power output: 700Watt.
Rated output power: 65oWatt.
Rated output current: 6.36A.
Rated frequency range: 57-62.5Hz.
Power Factor: >99%.
Max unit per branch circuit: 6pcs ( Single-phase ).
Grid tie inverter micro inverter 1400W:
Min / max starting voltage: 22V/50V.
Maximum input operate current: 30A.
Output Peak power output: 1400 Watt.
Rated output power: 1350 Watt.
Rated output current: 6.36A.
Rated frequency range: 57-62.5Hz.
Power Factor: >99%.
Max unit per branch circuit: 3pcs ( Single-phase ).
