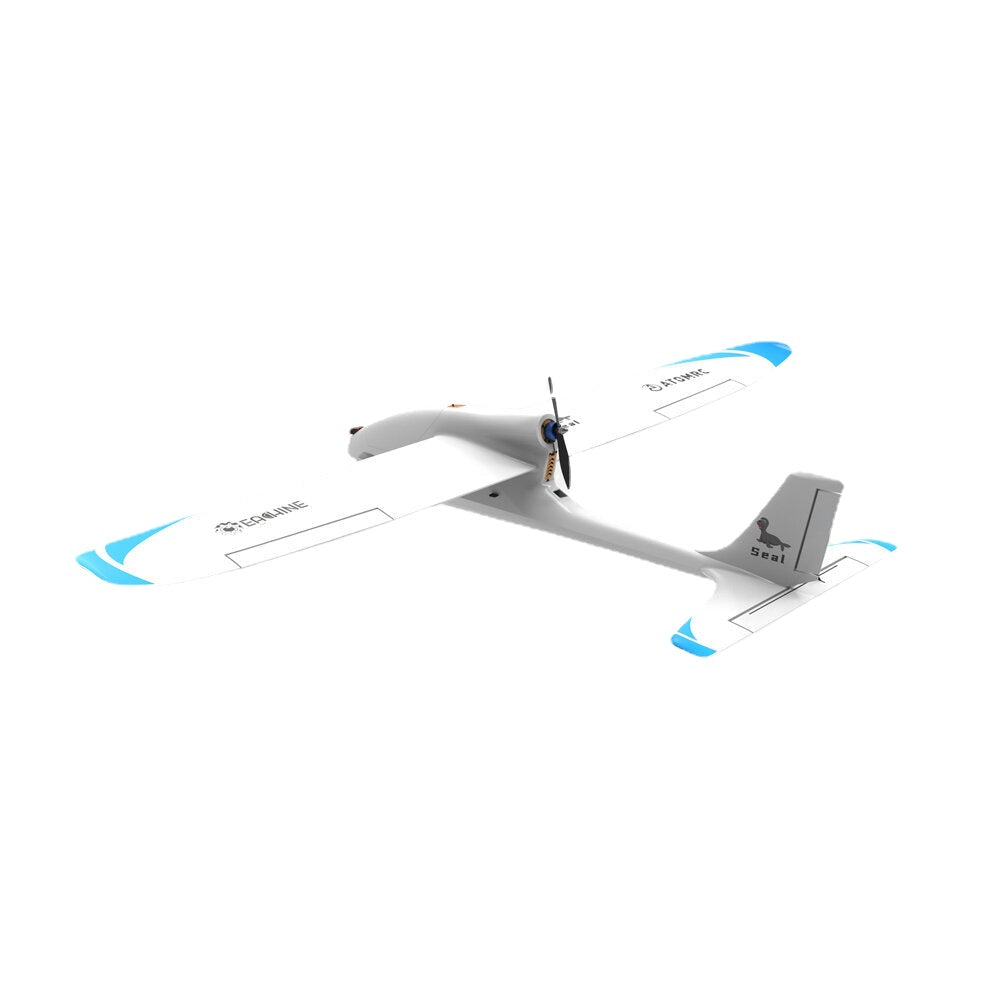

Description:
Wingspan: 1500mm/1100mm;
Length: 950mm;
Material: EPO;
WingArea: 25.7d㎡/17.8dm²;
Version: KIT, PNP, FPV PNP (Optional).
Test parameters (The specs is testing by PNP version: 2212/1400KV, 8040 prop, 21700/4s1p 4500mAh):
Recommend take off weight: 1100g (1500mm);
Max. take off weight: 1400g (1500mm);
Cruse speed: 50km;
Cruse current: 4.1A;
Fligth time: up to 60min;
Travel: 50km.
Features:
Classic glider design, It has good gliding ability，easy for beginners.
Detachable wing design, user can choose 1100mm wing span or use extend wing to 1500mm wingspan.
Design for FPV, ESC, FC VTX and Camera all have installation area. Easy to build and maintain.
Side door for install Flight controller, easy to wiring and maintain.
Two hatch, flat hatch for gimbal or DJI Air uint.
Air cooling duct design, reduce the heat inside the fuselage.
Huge battery bay, recommend 4S1P 3000-5000 battery, battery support up to 4S2P 21700 lion.
Recommend Parts:
Recommend motor: 2212 1400KV;
Recommend prop: 8inch;
Recommend battery: 21700 4S1P/3000mAH 4S;
Package size: 560*290*210mm;
Servo: 4*9g Servo.
Package Included:
KIT Lite -
1 x Un-assembled KIT.
PNP -
1 x Pre-build plane;
1 x ATOMRC 30A 2~4s BLS ESC with 5V3A BEC;
1 x 2212 1400KV Motor;
4 x 9G digital servo;
1 x 8040 propeller.
FPV PNP -
1 x PNP plane;
1 x 5.8G 1500mw VTX;
1 x Foxeer Toothless 2 Nano Camera;
1 x 5.8G Antenna;
( The aircraft is assembled, and the electronic equipment is not assembled. ).
