DESCRIPTION
Specifications:
Color: Red.
Material: Carbon fiber.
Product Name: Carbon fiber heating wire 100m.
Insulating materials: Silicone rubber.
Infrared wavelength: 8UM-18UM.
Conductor resistance: 6K = 61±10％Ω M.
Heating conductor: 6K.
High voltage test: 3000V.
Maximum power: 25W / M.
Maximum withstand temperature: 200℃.
Leakage current: 0.05mA/m.
Length: 20/30/50/100 M.
Working voltage: the cable can work under different voltage, but it needs to use appropriate length. If you don't know how to calculate the power, please contact us.
Product Power Calculation:
Voltage * voltage / total resistance = power.
For example: 6K carbon fiber, length of 6 meters.
220V × 220V / (6 m x 61 Ohm) =132 watts.
For example: 6K carbon fiber length of 10 meters.
220V × 220V / (10 m x 61Ohm) =79 watts.
The data shows that the longer heating wire you use and the smaller output power. (The min length of 12K carbon fiber heating wire is 10 meters)
Features:
✔ With excellent heat resistance. Don't need other transmission medium, the electrothermal conversion efficiency is above 98%.
✔ Excellent insulation.New infrared floor heating, make the temperature uniformity, promote blood circulation.
✔ Having good cold resistance and excellent medical rationalization.
✔ The carbon fiber heating wire cost little, and has a long life span, an investment, life-long, low maintenance costs.
And etc.
✔ You can manually make heating equipment, electric blankets, car seat heater, heating appliances, animal heating system, heating system, etc.
✔ Suitable for farms, pig insulation board, jade bed, electric blanket, electric heating towel rack, footbath, rice cookers, pet pad, electric warm clothing, piping warm, ect.

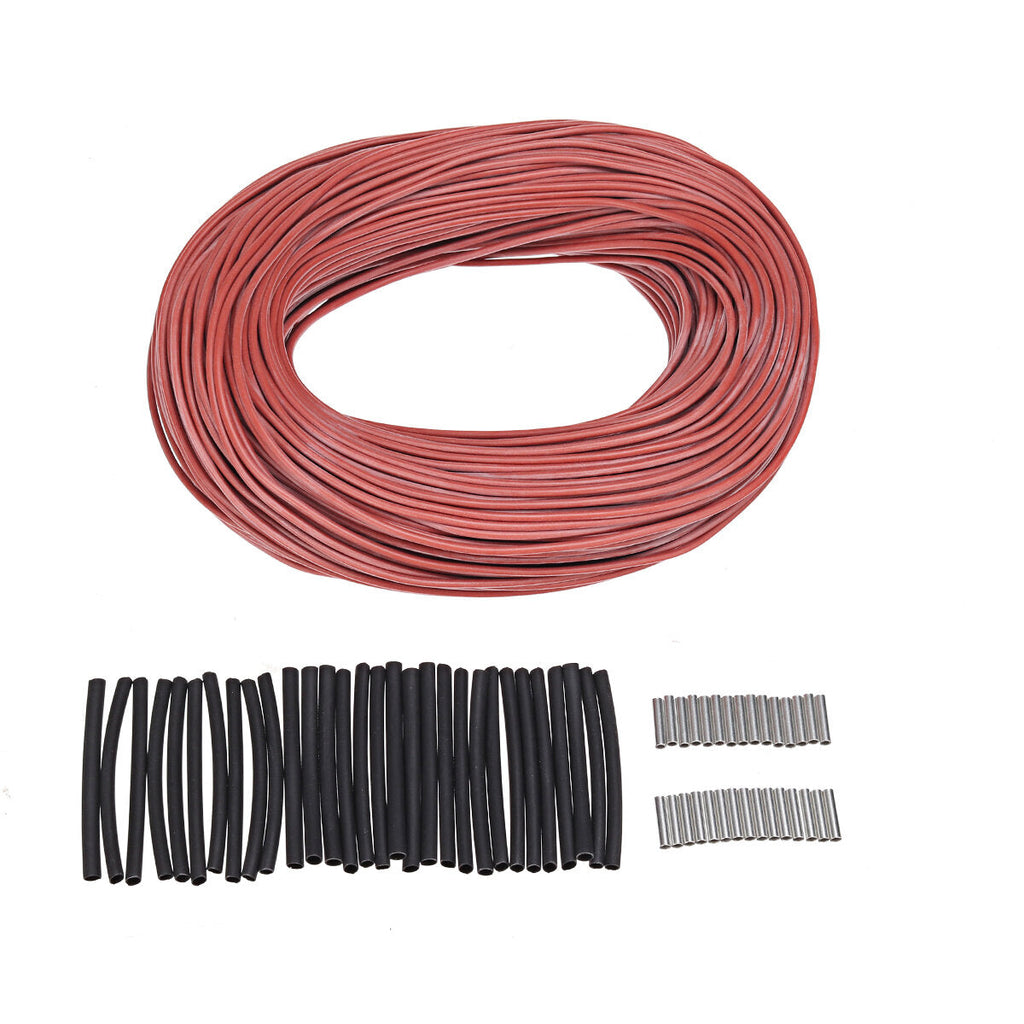

Package Contents:
Buy 100m = 100m cable + 20 pcs copper tube + 20 pcs sleeves.
or
Buy 50m = 50m cable + 10 pcs copper tube + 10 pcs sleeves.
or
Buy 30m = 30m cable + 6 pcs copper tube + 6 pcs sleeves.
or
Buy 20m = 20m cable + 4 pcs copper tube + 4 pcs sleeves
