DESCRIPTION
Feature:
Supply voltage: 12V.
Output voltage: 12V.
Temperature control range: -55~120 Degree Celsius.
Resolution: 0.1Degree Celsiu(-9.9~99.9Degree Celsius );
other Temperature: 1 Degree Celsius.
Temperature measurement accuracy: 0.2%FS.
Control accuracy: 0.1 Degree Celsius.
Refresh rate: 0.5s.
Thermostat probe: NTC 3950 / B = 10K 0.5%(waterproof type 1M).
Output:directly output: Maximum capacity 10A
Environmental Requirements: -30 ~ 60 Degree Celsius .
Humidity: 20%-85%.
Dimensions: 77 * 35 * 88mm.
Mounting holes dimension: 70*5*29mm.
P0: Cooling/Heating mode.
High temperature start cooling mode: C.
Low temperature start heating mode: H.
P1: Hysteresis setting.
Heating mode(H):measured value<=set value - hysteresis start output heated to set value to stop.
Cooling mode(C):measured value>=set value - hysteresis start output cooled to set value to stop.
P2: Max setting value.
The setting maximum temperature does not exceed this value.
P3: Min setting value.
The setting minimum temperature does not lower than this value.
P4:Temperature correction.
When measuring the temperature and the standard deviation of temperature, you can use this function to correct.Corrected temperature = Temperature before correction + Correction value.
P5: Delay start time (minute).
P6: High temperature alarm.
When the measured temperature exceed this value,the screen will flash and send out warning beeps,at the same time forced turn off output.
P7: Data lock switch.
Turn on the data lock switch, can keep the current setting is not altered.If you need to alter, please turn off the data lock switch.
P8: Restore factory settings.
Long press SET button to swith P8, and press SET button again, set to on, then press RST button to restore factory settings.
Package included:

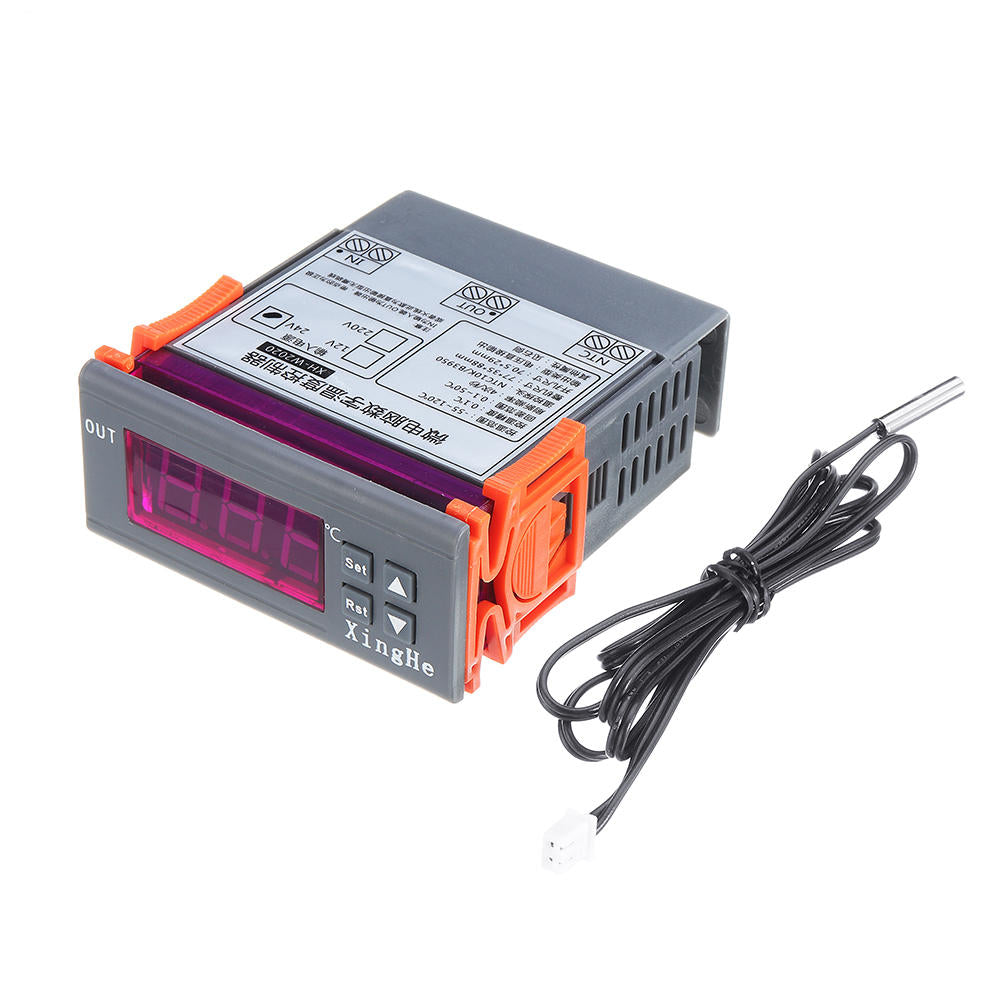

1 x XH-W2020 Digital Intelligent Thermostat
