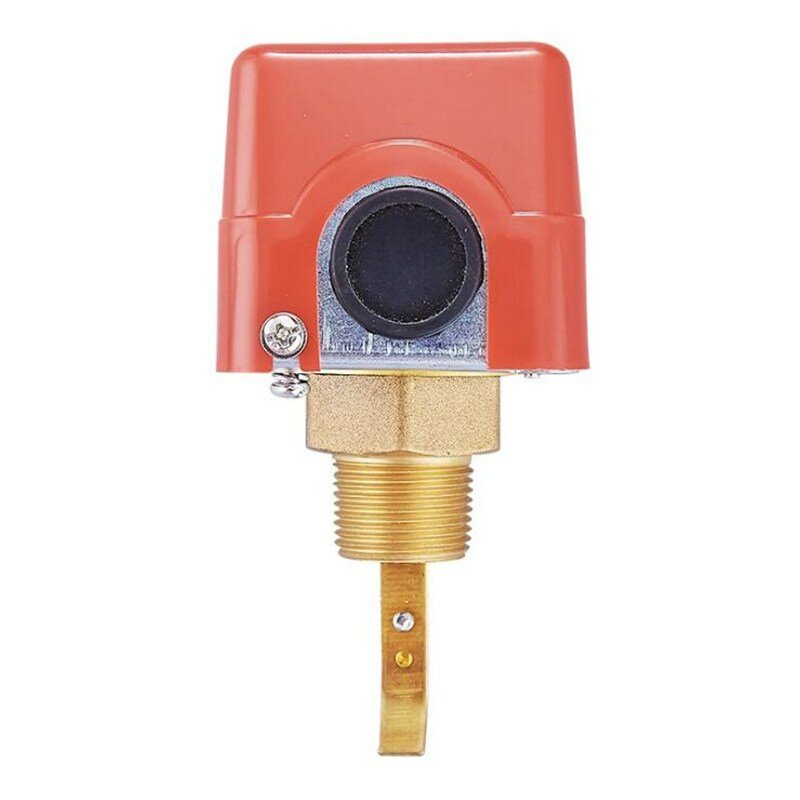

DESCRIPTION
Features:
1. HIGH QUALITY: It adopts premium material, with strong temperature adaptability of 0℃~ 120℃, and can withstand high pressure of 1.0Mpa.
2. ADJUSTABLE: The flow control value is adjustable and the action repetition point is stable.
3. MEASURE LIQUID: The product is used to measure the dynamic state of the liquid flowing through the pipeline, such as: water, ethylene, ethylene glycol and other liquids that have no corrosive effect on copper.
4. APPLICATION: It is application for water treatment system, central air conditioning, water cooling unit, fire protection system and other fields.
Specification:
Material:brass and stainless steel(body), stainless steel( Leaf blade), plastic (shell);
Interface dimensions: 1"(DN25), 3/4"(DN20), 1/2"(DN15);
Control mode: blade type;
Max. working pressure: 1.0Mpa;
Ambient temperature: 0C~60℃;
Liquid temperature: -10~100℃(non-freezing);
Micro switch: single pole double throw (SPDT);
Contact life: 100, 000 cycles;
Electrical parameters of Mixerclockwise;
3. Press the target to check whether the Mixer the installation, please press the lever of flow switch several times to check. Once it is found that there is no "click" sound when the lever is restored, rotate counterclockwise. Adjust the screws until there is a "click" sound;
5. The adjustment screw of lacquer seal is only for factory to adjust the state of flow switch. Please do not change or adjust it.
6. Observe three working cycles, make sure that the switch and the system connected with it are in normal operation, and cover the switch shell in time.
Package list:
1 x flow switch.
