DESCRIPTION
Specifications:
Power requirement: DC 8-15V.
Measure range: 5-9999RPM.
Clear zero: Automatic.
Display refresher rate: 3 Times/Sec.
Measure indication: RPM<5000, ±2, RPM>5000, ±3.
Display: Green 0.56" LED.
Response frequency: 100HZ.
Tachometer dimension: 72 x 36 x 20mm.
Panel cutout Dimension: 68 x 33mm.
Sensor dimention: 12 x 55mm.
Proximity output current: 200mA.
Sensor wiring: brown-Power+; blue-Power-; black-signal.
Operating temperature: 0°C to 50°C.

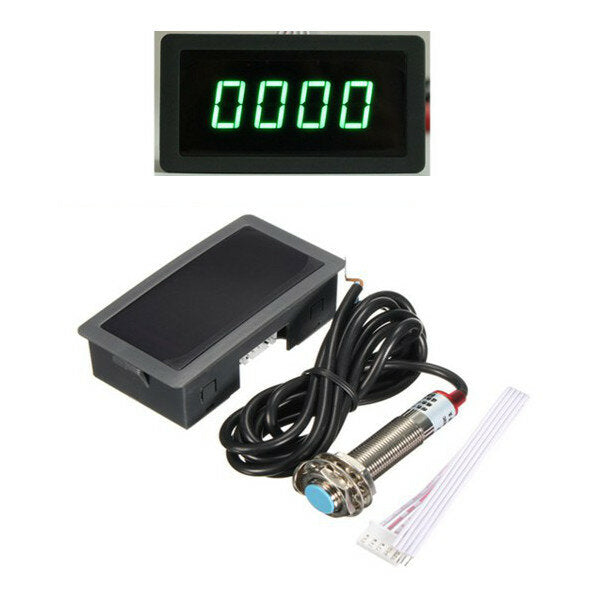

Package includes:
1 x Proximity switch
1 x Tachometer
