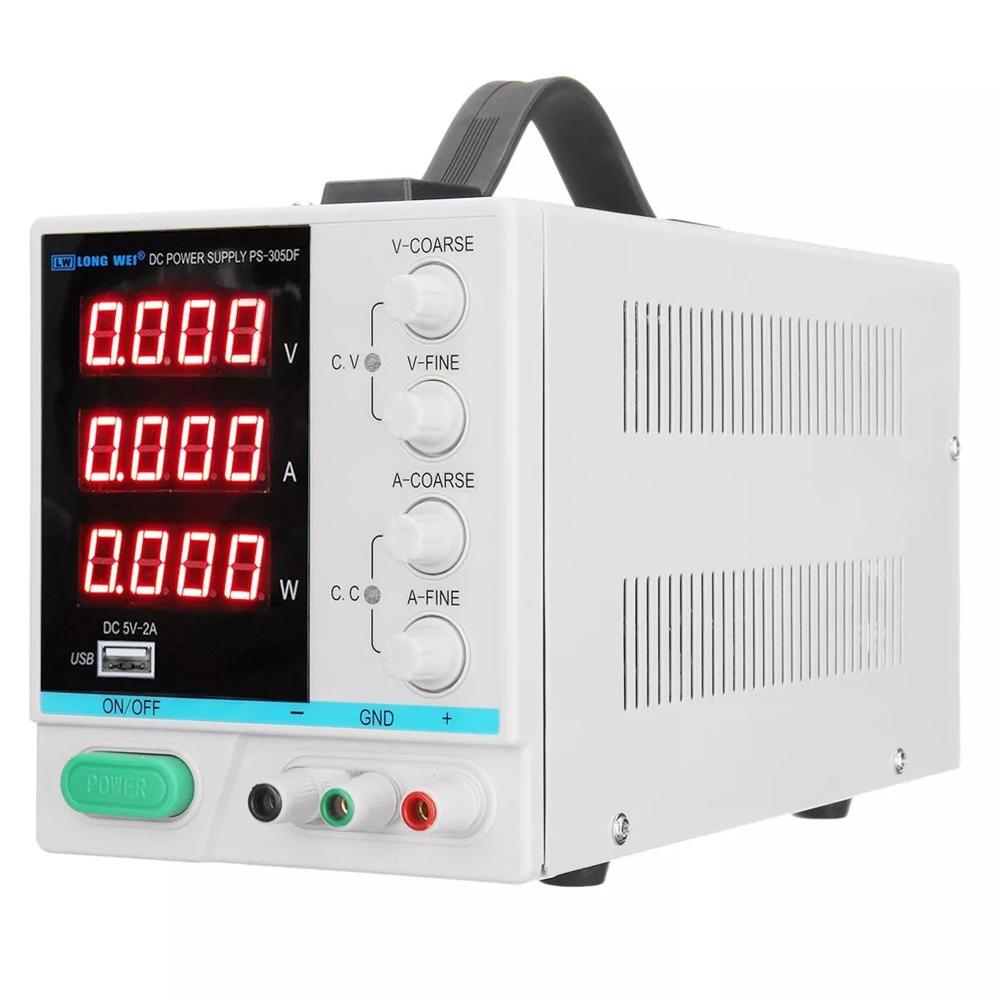

DESCRIPTION
Specifications:
Input voltage: 220V±10%@50Hz, or 110V±10%@60Hz, manual switching.
Output Voltage: 0-30V.
Current: 0-5A.
Working environment: Temperature: -10 ° C ~ 40 ° C Relative humidity: <80%.
Storage conditions: Temperature: -20 ° C ~ 80 ° C Relative humidity: <70%.
Power effect: CV ≤ 0.1% + 10mV , CC≤0.1%+10mA.
Load effect: CV≤0.1%+5mV , CC≤0.1%+10mV.
Ripple and noise: CV≤10mV r.m.s. , CC≤20mA r.m.s.
Display mode: 4-digit LED digital display.
Display accuracy: ±0.1% ± 1 word.
Size: 285*128*145mm.
Pressure test:
Input-output: 1.5KVAC/1 minute.
Input - Housing: 1.5KVAC / 1 minute.
Output - Housing: 500VAC / 1 minute.
Grounding resistance: <20mΩ.
Appearance size: length 285mm* width 128mm* height 145mm (excluding protruding parts).
Features:
-- Provide 5V2A USB interface.
-- 4-digit number shows current voltage and power.
-- Single output, high precision, high reliability, low ripple and noise.
-- There are many protection functions such as temperature, overload and current limiting.
-- With voltage / current coarse adjustment knob, can adjust the voltage / current value accurately.
Application range:
-- For teaching experiments, research.
-- For the repair of communication equipment.
-- Other areas that require DC regulated power supplies.
-- Testing and aging for electronic production line products.
Package Included:
1 x DC Power Supply.
1 x Power Cord
