Size: 26×10×1.2cm.
Power source: 5V 1A.
Power: 0.5W, current 100mA/5V.
Brightness: Using high-brightness LED tube, adjustable brightness.
Instructions for use:
1. Time adjustment method: the clock adopts a 24-hour system, first press the time adjustment button ۞ to enter the time adjustment mode, at this time "0---" is displayed, press 4 number keys in turn to input the time number, for example, the current time is 14 :25, press 1, 4, 2, 5 in turn. There is a dry battery in the lamp, and it can still run normally after power off.
2. Display direction setting: "C" is forward display (default), "B" is reverse display.
3. Brightness adjustment method: 5 levels of brightness can be adjusted, through the ▲/▼ button adjustment, the software defaults to automatically display the lowest brightness from 10 pm to 8 o'clock the next day. At this time, adjusting the brightness will not have an immediate effect.
4. Minute switching effect setting: When the minute value changes, there are 4 switching effects to choose from. Use the ▶/◀ button to select the desired effect.
5. The above settings are saved after power-off, and there is no need to reset the settings next time.
6. The USB socket can only be connected to a 5V USB power supply. If it is connected to a higher voltage, it will burn the overvoltage and protect the chip.
Package Included:

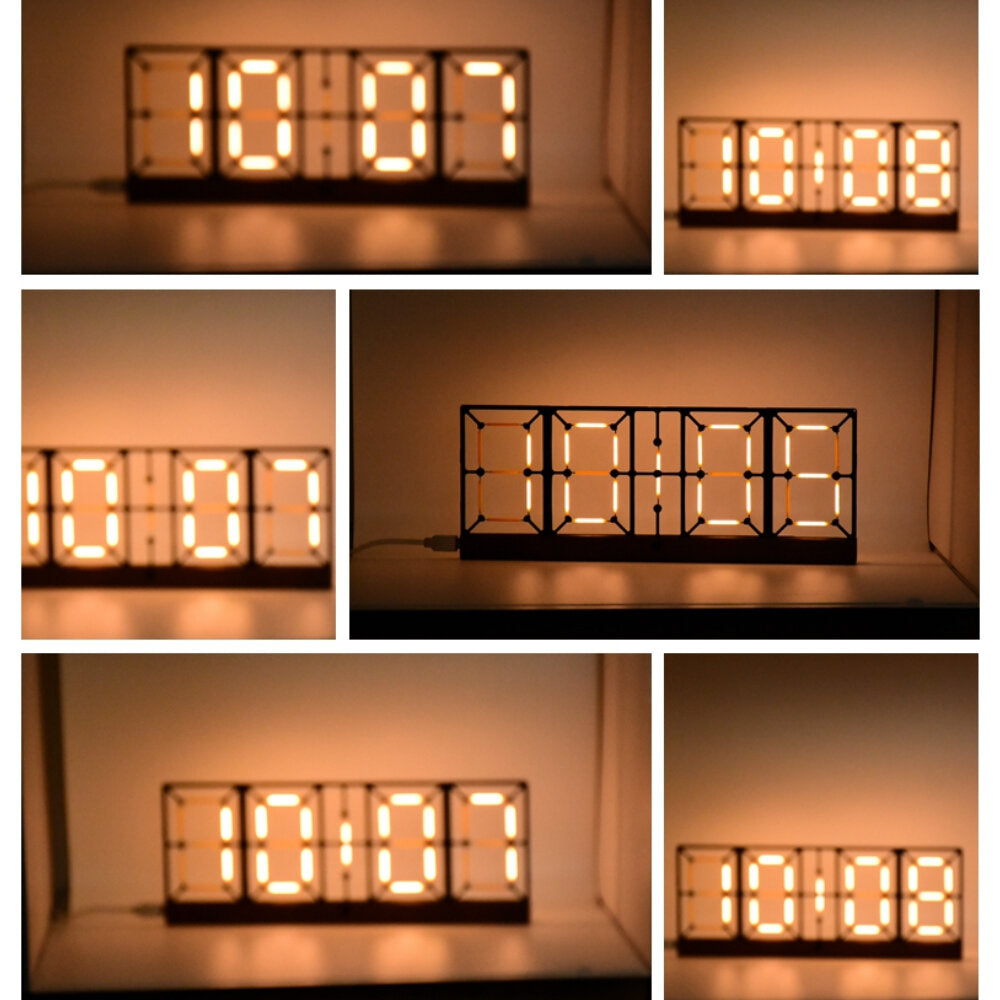

1 x LED Clock Creative Clock DIY Kit
