DESCRIPTION
Description:
Start DIY your solar system. Reduce your electricity bill.
The second-generation SG micro-inverter adds mobile phone communication function, Let you monitor the working status of your inverter anytime and anywhere.This Smart On Grid system improves safety; maximizes solar energy harvest; increases system reliability, and simplifies solar system design, installation, maintenance , and management.
Specification:
INVERTER PARAMETER:
Model: 1200W-WIFI / 600W-WIFI
MPPT Voltage Range: 28V-50V.
Operation Voltage Range: 20V-55V.
Maximum Input Voltage: 55V.
Startup Voltage: 28V.
Maximum Input Power:4*300W. / 2*300W.
Nominal Output Voltage: 120VAC / 230VAC.
Communication: WIFI With Cloud Monitoring.

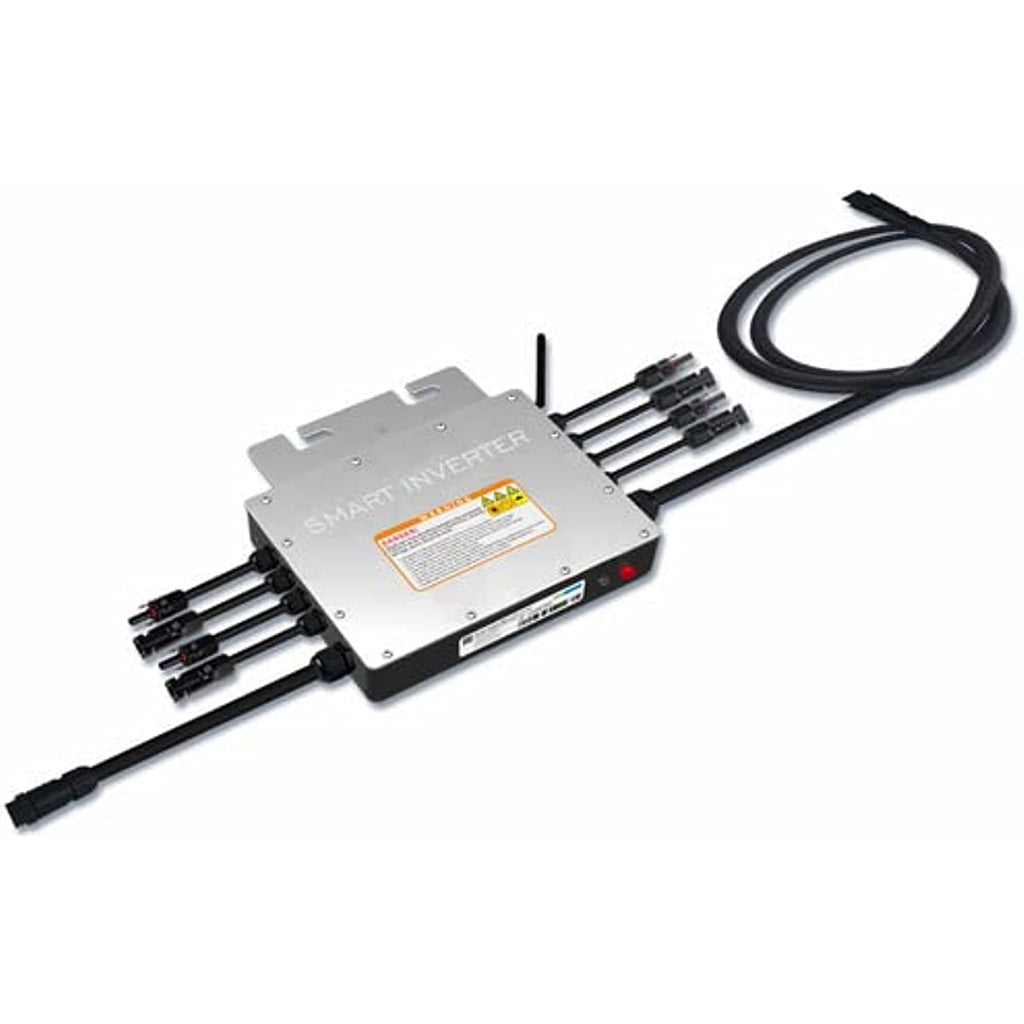

1200W / 600W Grid Tie Micro Inverter with WiFi Communication.
Feature:
Use solar panel ONLY connect to this equipment.
This equipment is ON-GRID Microinverter, The AC output must be connected to the home grid.
Solar panel open circuit voltage ≤55V (Voc).
Solar panel power cannot exceed 1200W(4X300W). /600W(2X300W).
The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be careful about this problem.
