DESCRIPTION
Feature:

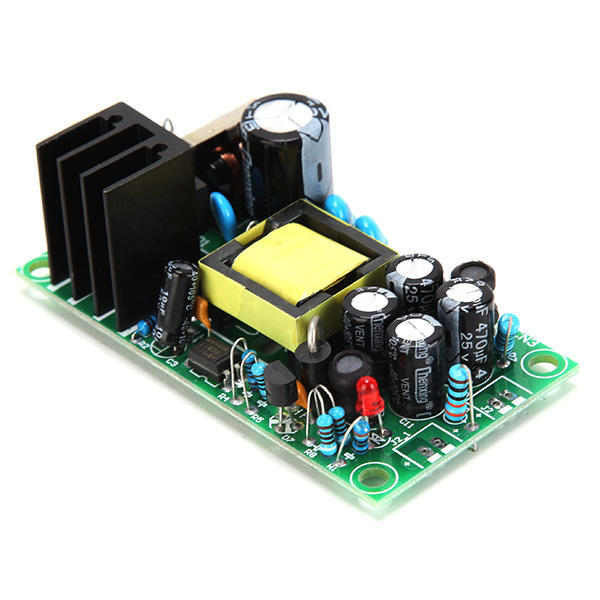

The power supply is fully isolated industrial grade built-in power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A 5V1A dual isolated output voltage, 431 regulated, output with EMI filter circuit, with light, with mounting holes, cost-effective.
Specification:
Working temperature: -20 °C to 60 °C.
Relative humidity: 40% RH - 90% RH.
Input voltage range: 85V - 265V (typical: 110/220) (under full load conditions).
Input Current: 0.027 (AC110V) 0.0136 (AC220V) (under full load conditions).
Input surge current: 20A (under full load conditions).
Size: 7.5 x 4.0 x 4.0 (cm).
Output regulation characteristic:
Output voltage: +12V, +5V.
Minimum current: 0A.
Maximum current: 1A.
Peak current: 1.2A.
Output voltage range: 11.80~12.5V, 4.90~5.1V.
Ripple: 150mV, 80mV.
Other output characteristics:
Output Power: ypical values: 17W, Max: 18.5W, Test Conditions: DC output power.
Output efficiency:
Typical values: 84%.
Test Conditions: Rated load.
Boot shutdown overshoot: Max: 10%.
The output rise time: Max: 100mS.
Package included:
3 x Fully Isolated Switching Power Supply
