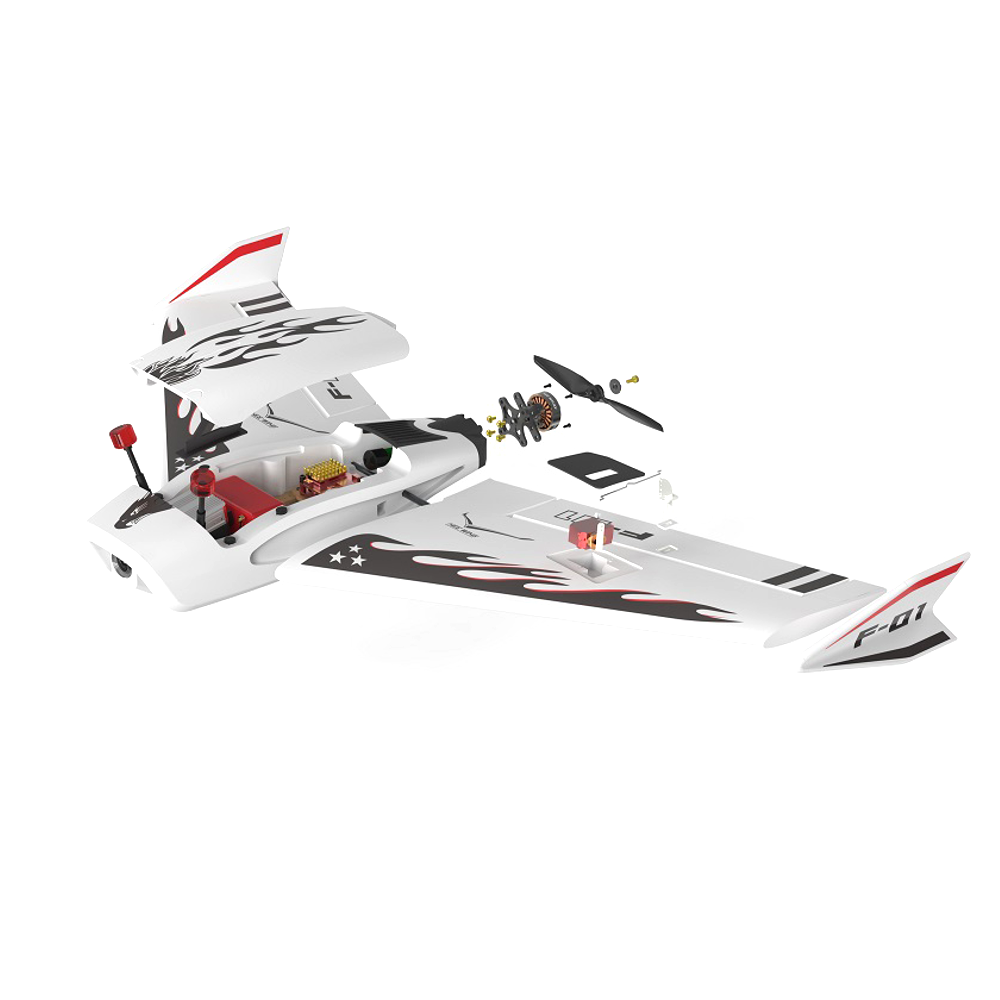

DESCRIPTION
Specifications:
Version: KIT, PNP, PNP Professional Version, PNP+Flight Controller (optional);
Material: EPP/ABS/Carbon Fiber;
Wingspan: 690mm;
Height: 88mm;
Length: 415mm;
Max Endurance: >70 minutes;
Max Mileage: >45km;
Min Flight speed: <27km/h;
Maximum Flight speed: ≥220+km/h;
KIT Weight: 150g(epp-30)/190g(epp-20);
Take Off Weight: 350g~850g;
Battery Compartment: 175mm*175mm*55mm (Max dimension);
ESC Compartment: 70mm*38mm*20mm (Max dimension);
Note: when speed is≥100km/h, should install lens cover to prevent excessive inflow air form blowing awa the hatch.
2205 Motor Specifications:
Dimention: 29mm*20mm;
Slot/pole: 12N14P;
Shaft Diameter: 5mm-Internal gear M3;
Weight: 30g (exclude wire);
Max Current: 30A;
Max Power: 450W;
Work Voltage: 2S (7.4V)~4S (14.8V);
Wire Specifications: 20# - 180mm;
Interphase Internal Resistance: 68mΩ;
Max. Thrust: 922g(6*4E 2-Blade Propeller).
FX35A ESC Specifications:
Rated Current: 35A ( lasts for 180 seconds);
Instantaneous Current: 50A ( lasts for 10 seconds);
Input Voltage: 7 4V~14.8V (2S~4S);
UBEC Output: NO;
Dimention: 48.5*14.5mm ( exclude wire);
Signal Wire: 120 mm;
Power Input Wire: 18#, length: 100mm;
Weight: 9.5g ( include wire).
GDW 12g Servo Specifications:
Item Name: DS031MG Metal Gear Digital Servo;
Voltage Range: 4.8V-6V;
Working Temperature: -20℃ ~+60℃;
Working Frequency: 1520μs/333Hz;
Speed: 5V = 0.13sec/60°， 6V = 0.11sec/60°;
Torque: 5V = 2.25kg/cm, 6V = 2.7kg/cm;
Wire Length: 260mm;
Weight: 12g.
UBEC Specifications:
Item Name: MAMBA UBEC 5V 2A;
Input Voltage: 7.4V-14.8V;
Output Voltage: 5V;
Output Current: 2A;
Dimension: 17x11mm;
Weight: 1g.
VTX Fixed Seat Specifications:
Item Name: VTX Fixed Seat;
Material: ABS;
Seat Install Size: 47mm x 17mm;
Flight Controller Install Size: 30.5mm x 30.5mm / 20mm x 20mm.
Features:
- Independent detachable lens plug for both FPV and visual observation flights.
- Wings have embedded carbon fiber rods with different angles.
- Small wingspan with large space for electronics electronics.
- Four magnets are applied to the hatch for better fastening.
- The new wingtip design supports vertical take-off mode.
- Supports horizontal and vertical battery mounting.
- Tailored lens ring for better protection.
- All new propeller locking method.
- Tailored for DJI Digital Air unit.
KIT Version Included:
1x Ultra Delta Wing EPP Body;
2x VTX Fixed Seat;
1x Hardware Kit;
1x Lipo Strap;
1x 6x4E Prop;
1x 5x5E Prop.
PNP Version (Unassembled) Included:
1x Ultra Delta Wing EPP Body;
2x VTX Fixed Seat;
1x Hardware Kit;
1x Lipo Strap;
1x 2204-2200KV Motor;
1x FTC 20A ESC;
2x 9g Plastic Gear Digital Servo;
1x Flight Controller;
2x 5045 Propeller.
PNP Version Professional Edition (Unassembled) Included:
1x Ultra Delta Wing EPP Body;
2x VTX Fixed Seat;
1x Hardware Kit;
1x Lipo Strap;
1x FX2205-2350KV Motor;
1x FX35A ESC;
2x GDW 12g Metal Gear Digital Servo;
1x Diatone 5V 2A UBEC;
1x XT60 + 3.5 Banana Plug.
PNP+Flight Controller Version (Unassembled) Included:
1x Ultra Delta Wing EPP Body;
1x SNL+ Flight Controller;
2x VTX Fixed Seat;
1x Hardware Kit;
1x Lipo Strap;
1x FX2205-2350KV Motor;
1x FX35A ESC;
2x GDW 12g Metal Gear Digital Servo;
1x Diatone 5V 2A UBEC;
1x XT60 + 3.5 Banana Plug.
