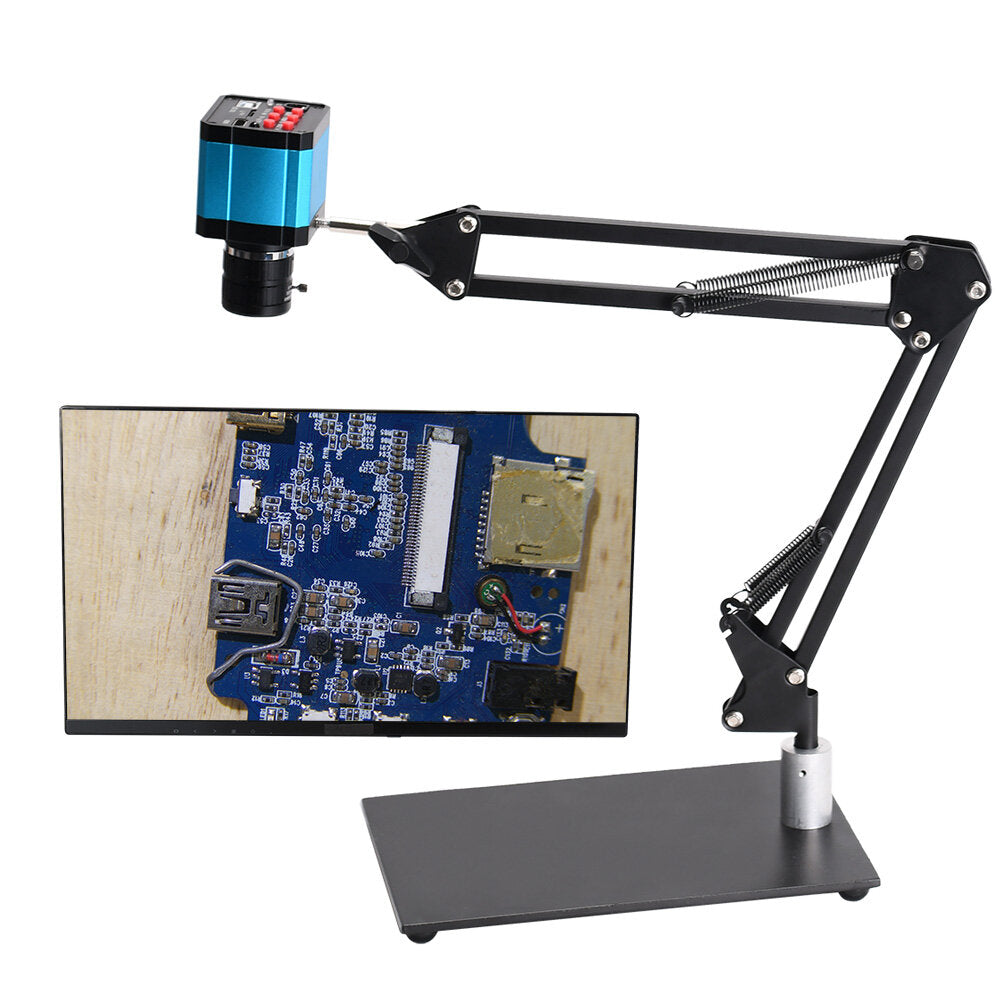

DESCRIPTION
Description:
1. The head can be adjusted 220 ° up and down, and 360 ° swivel. 33cm+33cm retractable long arms,180°/135° can be adjusted.
2. HDMI USB Camera 35mm F1.7 Lens Industry Live Digital Camera.
3. Full 1080p HDMI USB Digital Cameras, Industry Live Digital Camera, Equipped with 35mm 1/3' CS Mount CCTV Lens IR F1.7 Manual Zoom Manual Iris Camera Lens.
HDMI USB Camera Features:
High Quality, High Resolution, Clear Images.
1080P 1920*1080 Video Camera.
HDMI USB Video Model.
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
Specification:
Item Type: Microscope Camera;
Sensor: 14MP CMOS;
Optical Format: 1/2.3 inch;
Pixel Size: 1.335μmx1.335μm;
Interface: HDMI (Type A). USB (Type B). Small memory card;
HDMI Image Resolution: 14MP;
Video Resolution: 2K at 30FPS 1080p at 60FPS;
HDMI Resolution: 1920 x 1080p 60FPS;
HDMI Scale: Support 4: 3,16: 9,16: 10 screen;
USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPS;
Small Memory Card: Up to 128GB (not included);
AWB: AWB color correction/automatic/manual;
R.G.B value setting independent;
Exposure: Automatic/manual. AE value can be set;
Cross Line: 8 lines, color, width, position can be set;
Scale Line: 2 lines;
Dotted Line: 2 lines, color, width, position can be set;
Sharpness Contrast Color Gain: Support;
Mono Negative Film: Support;
Mirror: Horizontal and vertical mirror;
Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages;
Digital Zoom: Support;
Infrared Remote Control: Support;
Voltage Input: DC 12V;
Power Supply Voltage: Input: AC100-240V;
Output: DC12V;
Power Consumption: Maximum 0.15W 12V, 0.12A;
Lens Interface: C/CS port;
Remote Control Battery: 1 x 2302 button battery.
35mm F1.7 Lens Specification:
Focal-Length: 35mm;
Relative Aperture D/f': F1.7;
Mount: C;
Image Format: 1/1.8in;
Field of View: W14.8°xT10.8°;
Dimension: Approx. 35 x 22mm;
Resolution: 5MP;
Flange BFL: 17.53;
High resolution: 5 megapixel covering 5MP & 1080P;
Large format: 1/1.8' size covering 1/1.8', 1/2' camera;
Big aperture: F1.7 big aperture makes imaging far better;
Low distortion: <0.1% low distortion use machine vision FA automatic;
Application: Biochemical, surveillance, FA, face recognition etc.
Lens Features:
1.35mm F1.7 Len;
2. Varifocal length cctv lens, optical lens, CCTV camera lens, CS Mount Lens;
3. focal length Function Manual Iris Lens, security lens;
4. Low distortion Lens for box camera, Security Camera Lens, Surveillance Lens;
5. This high resolution CCTV lens can capture the all resolution of mega pixel camera, IP camera & High resolution camera;
6. Suitable for live stream cameras, surveillance camera, etc.
Package Includes:
1 x 1080P HDMI Camera;
1 x 35mm F1.7 Lens;
1 x Remote control;
1 x USB cable;
1 x HDMI cable;
1 x Stents.
