DESCRIPTION
Specifications:

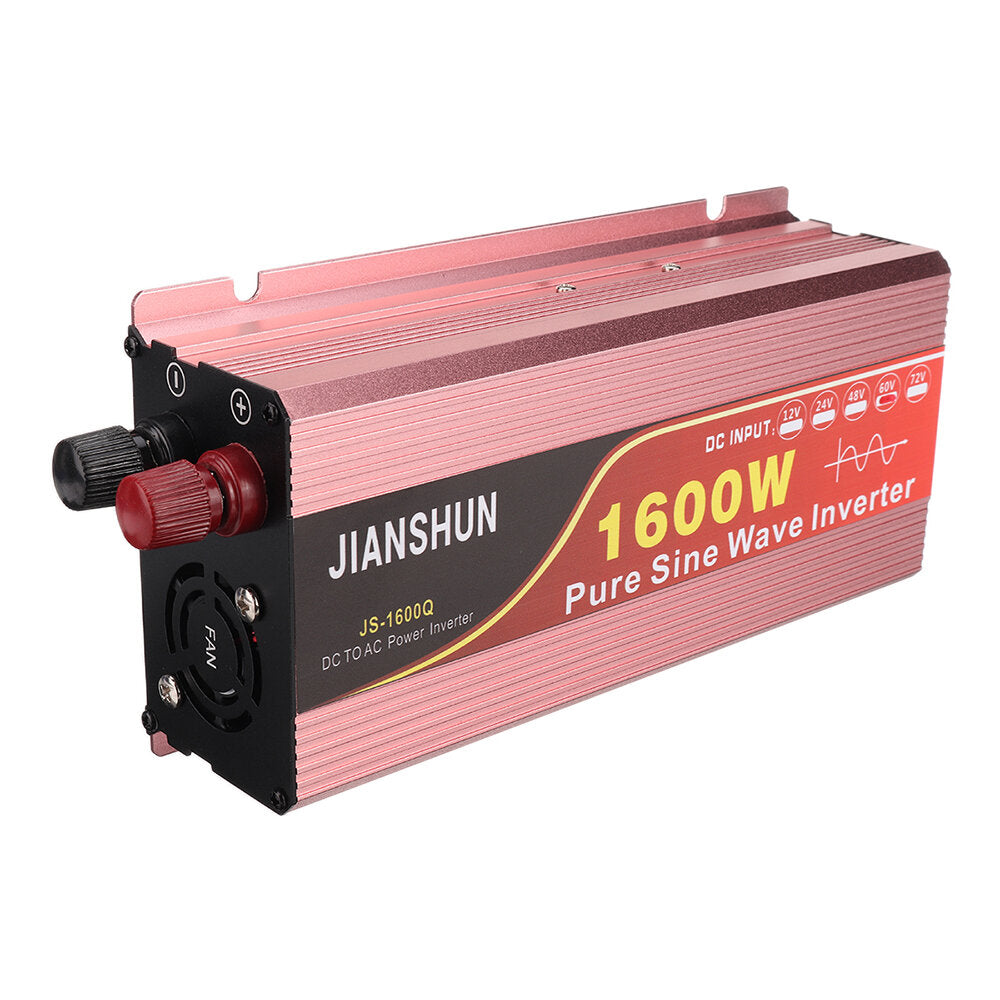

Type: Solar inverter.
Output voltage waveform: Pure sine wave.
Power(Rated power): 1600W(800W) / 2200W(1100W) / 3000W (1500W).
Output voltage: AC 220V 240V.
Input voltage: 12V/24V/48V/60V.
Output frequency: 60Hz.
Low-voltage protection: 9.5V/ 20V.
High-pressure protection: 16V/30V.
Conversion rate: 90% or more.
Display: Single Screen Display.
Features:
- LCD display screen.
- Buzzer reminder device. Once any protection of the inverter is triggered, the inverter immediately disconnects the power supply and the load enters a protection mode and reminds people through a buzzer reminder.
- Double socket.
- Up to 90% conversion rate.
- Five intelligent protection, overload protection, high voltage protection, low voltage protection, over temperature protection, short circuit protection.
- Intelligent temperature control fan, make the inverter more quiet. When the temperature ≤ 45 ℃, the fan stops working, when the temperature ≥ 45 ℃, the fan began to work.
- Aluminum magnesiums alloy shell, light weight, good thermal conductivity, can quickly reduce the temperature of components, work long hours are not affected.
New Featues:
- Full bridge technology, also known as full bridge inverter, is the most stable and reliable design at present.
- Dual control cooling mode of temperature control and power control.
- Full time short-circuit protection function, whether it is full load, high temperature, short-circuit boot, boot short-circuit are safe protection.
- Strong load capacity.
- The waveform is stable without burr.
- The machine is equipped with adjustable buttons: output voltage, output frequency, convenient switching.
- Highly integrated MCU control, more stable and reliable.
Packaged included:
1 x Inverter.
1 x User manual.
1 x Ultra-thick battery cable (48V1600W /60V1600W /12V3000W /24V3000W /12V4000W /24V4000W /12V5000W /24V5000W /6000W /8000W)
(2 x Ultra-thick battery cable (12V1600W /24V1600W /2200W /48V3000W /60V3000W /48V4000W /60V4000W /48V5000W /60V5000W )
