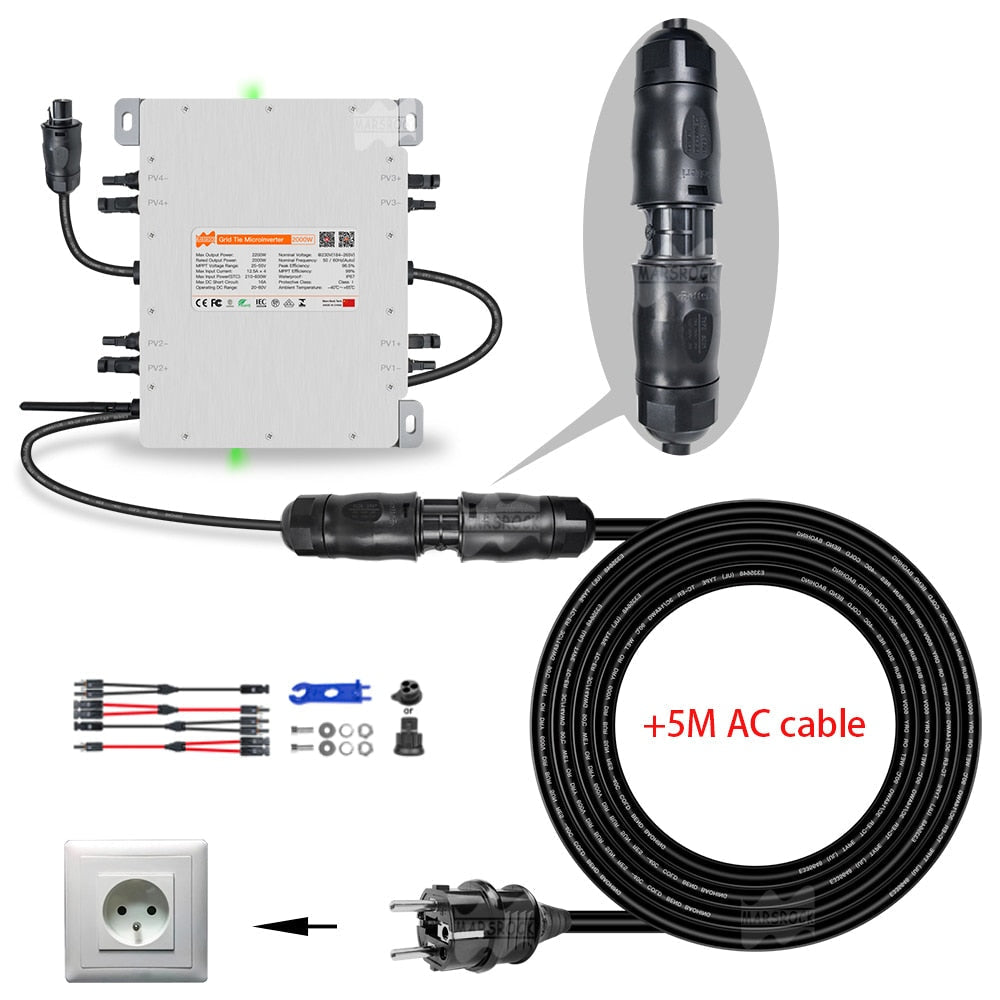

WiFi 2000W Solar Micro Inverter With Limiter 20-60V DC To 184-265VAC MPPT IP67 include 5m AC cable

Microinverter System Introduction
The Microinverter is used in utility-interactive grid-tied applications, comprised of two key elements:
* Microinverter
* Router

Note:If the wireless signal in the area where the microinverter is weak, it is necessary to add a wifi signal booster at a suitable place between the router and the microinverter.

This integrated system improves safety; maximizes solar energy harvest;increases system reliability, and simplifies solar system design, installation,maintenance, and management.

Microinverters Maximize PV Energy Production:
Each PV module has individual Maximum Peak Power Tracking (MPPT) controls, which ensures that the maximum power is exported to the utility grid regardless of the performance of the other PV modules in the array.When PV modules in the array are affected by shade, dust, orientation,or any situation in which one module underperforms compared with the other units, the Microinverter ensures top performance from the array by maximizing the performance of each module within the array.

More Reliable than Centralized or String Inverters:
The distributed Microinverter system ensures that no single point of system failure exists across the PV system.Microinverters are designed to operate at full power at ambient outdoor temperatures of up to 149℉ (65℃). The inverter housing is designed for outdoor installation and complies with the IP65 environmental enclosure rating.

Product Paramenters
Model:2000W
Input Data:
Max solar panel:4*600W (max):
Start-Stop voltage:20-60V
Reccommend PV Voc:33-60V
MPPT:25-55V
Max Input Current:12.5A*4
DC short current:16A*4

Output Data:
Rated Output Power:2000W
Max output Power:2112W
Rated output current:@230VAC 9.2A
Rated voltage:@230V(184-265VAC)
Max units per branch:@230V:4PCS
Rrequency:50/60Hz(45~65Hz)

Output Efficiency:
Static MPPT:99.00%
CEC Weighted Efficiency:95%
Max output:96.5%
Self consumption:50mW
THD:<3%

Exterior
Ambient temperature:- 40℃ to +80℃
Operating temperature:- 40℃to +65℃
Dimensions（L×W×H):267×300×42.5 mm (Without mounting bracket and cable)
Net Weight(KGS):5.3
Waterproof Rating:IP67
Cooling:Self-cooling

Feature:
Compatibility:Compatible with 60~72 cell PV modules
Communication:Power line / WIFI/Zigbee
Monitoring System:Lifetime free:
Electromagnetic compatibility:EN50081.part1EN50082.part1
Grid disturbance:EN61000-3-2 Safety EN62109
Grid detection:DIN VDE 1026 UL1741
