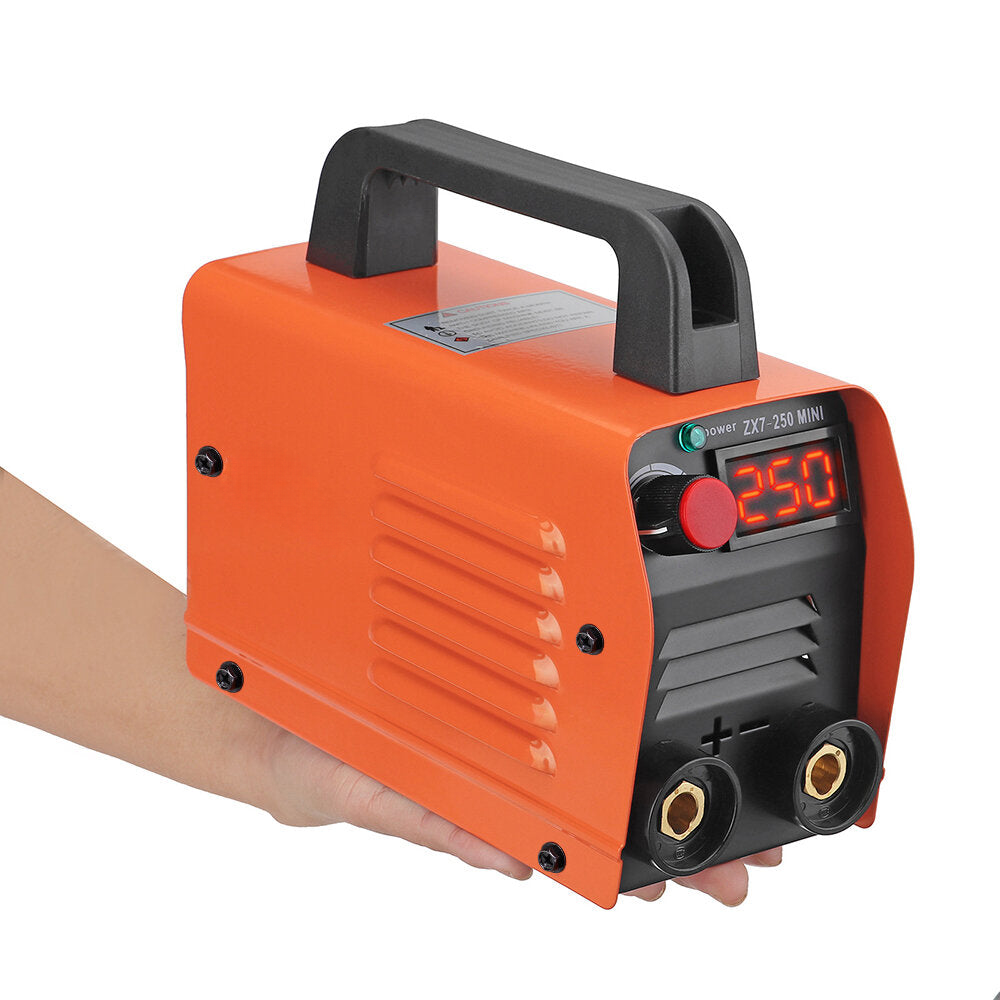

DESCRIPTION
Feature:
- Small and portable:
Adopting advanced single-tube IGBT inverter technology, it is compact and easy to carry;
- PWM control technology:
Full digital PWM control technology, high power output, built-in power compensation, high efficiency and energy saving;
- Digital display, easy to adjust:
Suitable for welding amperage of various materials, supporting the regulation of current from 20 to 250A;
- Built-in hot arc start:
Built-in hot arc start, with good thrust current effect, anti-stick, arc force overload protection;
- VRD function:
With VRD function, the output voltage is low at no load, preventing electric shock and safer use;
- Stable and durable:
Compact, heavy-duty stainless steel body and durable orange paint for long life.
Specification:
Input Power Voltage: AC220V±15%.
No-load Voltage (V): 60V.
Frequency (Hz): 50/60Hz.
Rated Input Power (KVA): 8.3KVA.
Display Screen Output Current Range (A): 20A-250A.
Output Current Range (A): 30-160.
Duty Cycle(%)(25℃): 60%.
Efficiency (%): 85%.
Power Factor (COSɸ): 0.73.
Insulation Class: F.
Net Weight (Kg): 1.6kg.
Dimensions (MM): 200*85*120mm.
Electrode Diameter (MM): 1.6-2.5mm.
Housing IP Grade: IP21.
Application: Electrode suitable for 2-8mm plates.
Package included:
1 x Welding Machine.
2 x Quick plug.
2 x Insulated electrode.
1 x T-wrench.
1 x Power Cord.
1 x English Manual.
1 x Warranty Card
