DESCRIPTION
Specification:
Image sensor: 4K SONiYi IMX sensor 1/2.33 inch;
Effective Pixels: SONiYi 12MP CMOS 1/2.33 IMX 4K SENSOR;
Resolution: 4K/2K/1080P 1080P (USB);
Sensor Size: 1/2.33inch;
Pixel Size: 1.55 × 1.55μm;
Image Resolution: 4032 × 3024 (12MP) (16:9);
Frame rate: 60@FPS (4K);
Image Format: JPEG;
WaveLength[nm]: 400nm~700nm;
Frame Rate: 3840×2160@60FPS(4K); 1080P 120@FPS; 720P 240@FPS;
Lens Fype: C / CS;
Timing Photo/Record: Support Timing Photo/Record;
Storage: TF Card, Max 256G;
PC Support: Windows / Miac / Linux System PC Software with Measuring Function;
Image Measurement: Support HAYEAR Measurement;
Language: EN /FR /ES /Portugues /Deutsch /Italiano /CN/Pyccknn/ JP;
Output Interface: HDMI/USB Standard usb2.0 interface (Type B);
Image Scaling: 7-Fold zoom;
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, movable;
Different color, 5 horizontal line, 5 vertical line,any positions;
Encode: H.264 /H.265 (High Profile);
Video format: MP4.
180X C-MOUNT Lens:
Working distance: 95mm;
Zoom c-mount Lens;
0.5X C-mount adapter;
Zoom ratios: 6.5:1;
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display);
Size: 180mm(L) * 50mm(DIA).
144 LED Ring Light:
Provides intense and focused shadow-free illumination;
144 bright white LED bulbs;
Lighting direction changeable;
Variable intensity control;
Intense and focused shadow-free illumination;
100,000 hours of life;
Power input: 100-240V, 50-60HZ, auto switching;
Inside diameter of the ring light: 1.0' (27mm);
Overall outside diameter: 1.77' (45mm);
Working Distance: 27mm-45mm.

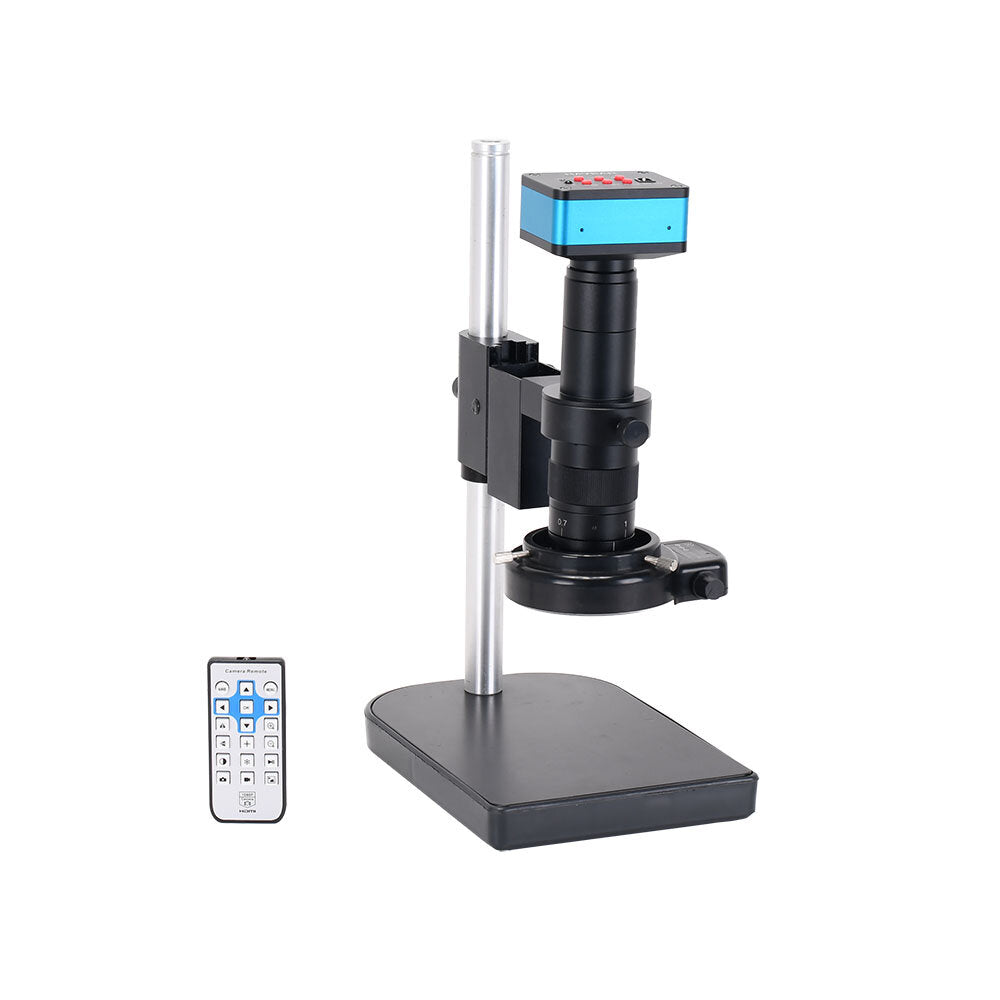

Package includes:
1 x 4K Microscope Camera;
1 x 180X C-mount Lens;
1 x 144 LED Light;
1 x Power Supply;
1 x USB Line;
1 x Remote Control;
1 x Stand;
1 x HDMI Line.
