DESCRIPTION
Description:

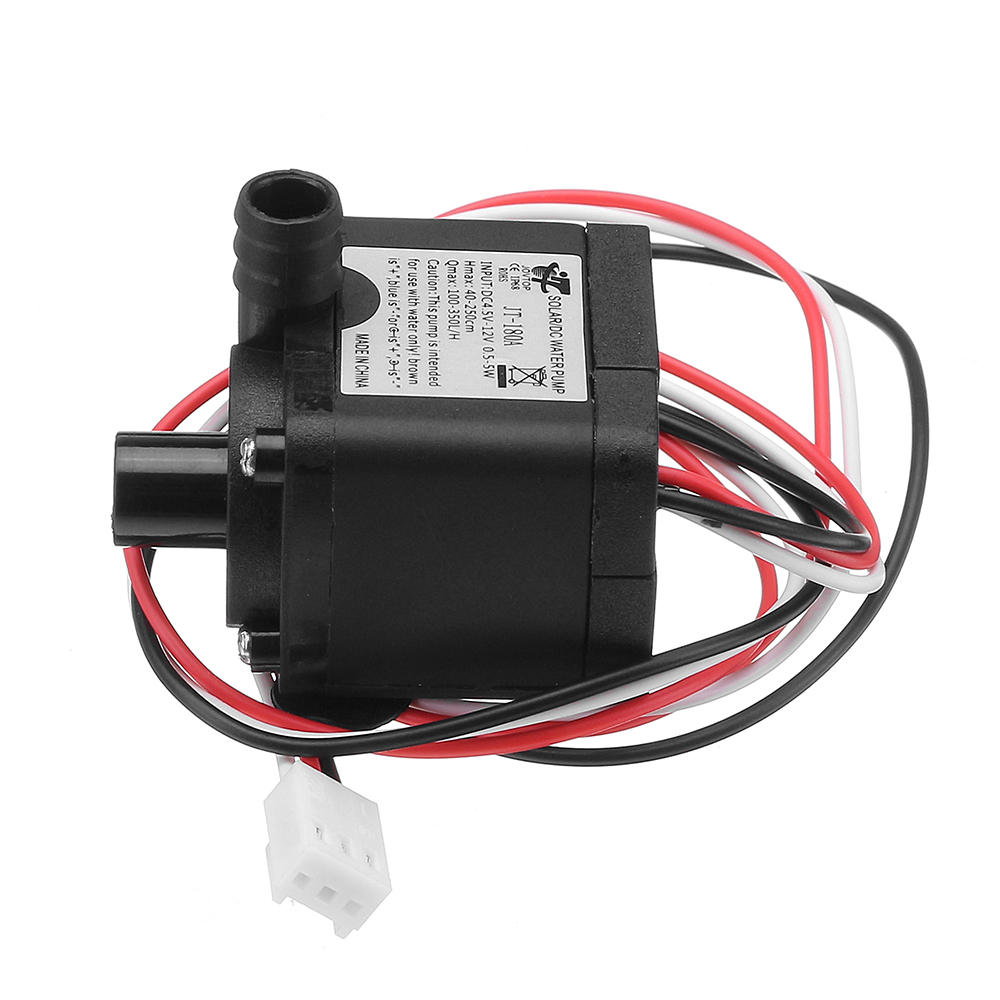

DC 12V ultra-quiet aquarium mini electric brushless submersible water pump.
Specification:
Material: engineering plastics.
Performance: wear resistance.
Purpose: booster pump.
Drive mode: electromagnetic.
Transmission medium: clean water pump.
Voltage: 4.5-12V.
Current: 65MA-500MA.
Hydraulic head: 40-250cm.
Pump body size: 3.75x3.71x3.3cm.
Inlet: outside diameter: 9.8mm.
inner diameter: 7.8mm.
Outlet: outside diameter: 9mm.
inner diameter: 7.6mm.
Maximum flow: 350L/H.
Noise index: Below 30dB is silent.
Continuous service life: over 20000 hours.
Wire length: 50cm (with speed measurement function).
Install method:
Red/blue wire: positive pole.
Black/blue wire: negative pole.
Features:
1. JT-180A is amphibious water pump, which can be measured in version and normal version (no speed measurement).
2. The pump has 2 soft suckers at the bottom.It can be submerged or placed outside the water, not a self-priming pump
(for land use, the water needs to be drawn and the suction range is less than 50CM).
3. There are two soft suckers at the bottom of the pump, which can be fixed at will.
4. The motor winding is fully closed and sealed with resin with unique formula, with good insulation and never leaking.
5. Corrosion resistance.
6. Convenient cleaning and efficient energy saving.
7. Mainly used for solar energy fountain, equipment cooling, medical treatment, aquarium, etc.The water pump is made of
environmental protection material.ROSH/IP68/CE/EMC certification!Product warranty 1 year!Our factory can design all kinds
of mini pump according to customer's requirement.
Package Included:
1 x water pump
