DESCRIPTION
Features:

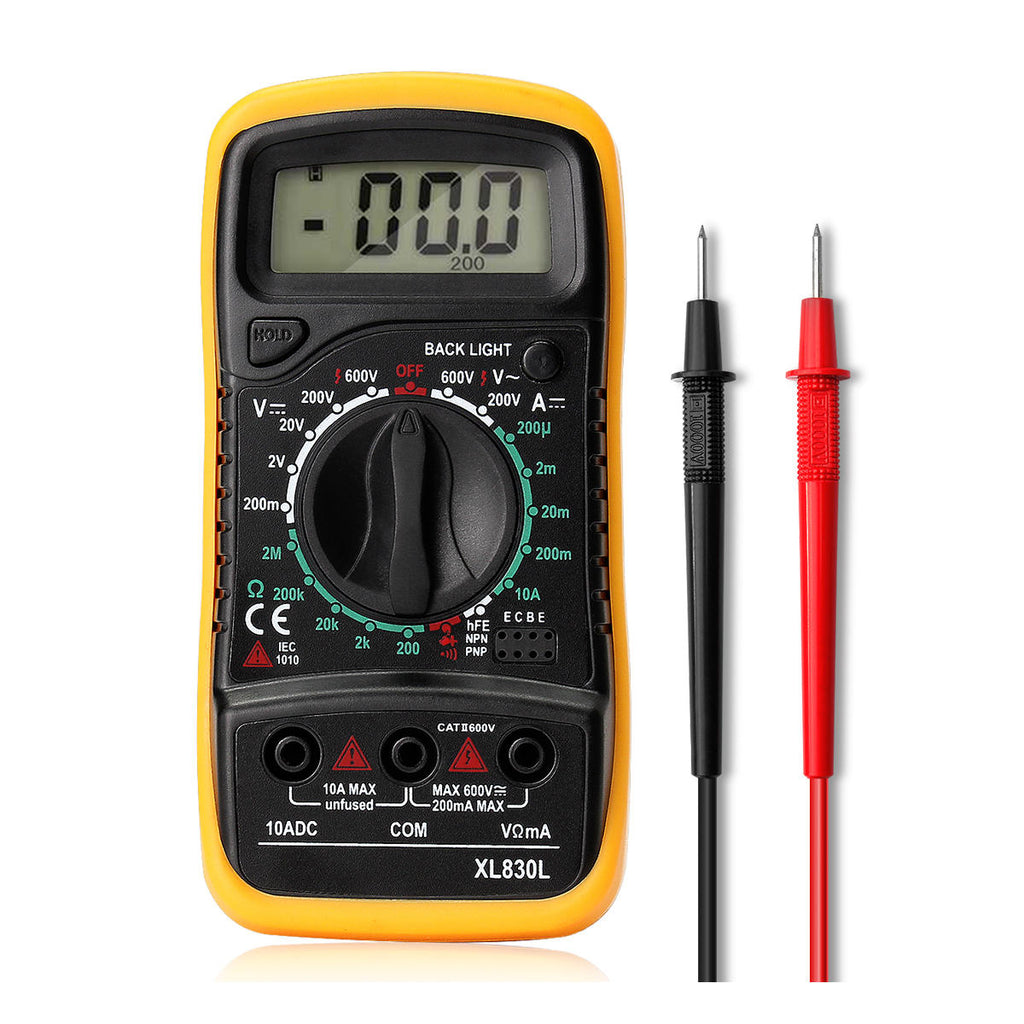

The meter is a held 31/2 digital multimeter for measuring DC and AC Voltage, DC and AC current, Resistance, Diode, Transistor, freguency, trmperature, capacitance and continuity Test.
Specifications:
Display: Blue Back-light LCD, 1999 counts, updates 2-3/sec;
Measuring method: Dual-slope integration A/D Converter;
Operating Environment: 0 to 40 °C;
Power: 9V Battery, NEDA 1604 or 6F22 Type(Not included);
Fuse Protection: 200mA/250V;
Size: 135mm x 67mm x 33mm;
Weight: Approx. 280g;
DC Voltage:
Measurement Range: 200VmV-600V ±0.5% of rdg ± 2 digits;
Overload Protection: 250V rms;
AV Voltage:
Measurement Range: 200V-600V ±1.2% ± 10 digits;
Overload Protection: 600VDC or rms;
DC Current:
Measurement Range: DC 2000-10A ±1% of rdg ± 2 digits;
Overload Protection: F 200mA/250V fuse (10A range unfused);
Resistance:
Measurement Range: 200 Ohms - 2M Ohms ±0.8% of rdg ± 3 digits;
Maximum Open Circuit Voltage: 3.2V;
Overload Protection: 250V DC or rms;
Transistor: Measurement Range hFE TEST (0-1000);
Package Included:
1* Digital Multimeter;
1* Set of Test Leads;
1* User Manual.
