DESCRIPTION
Description:

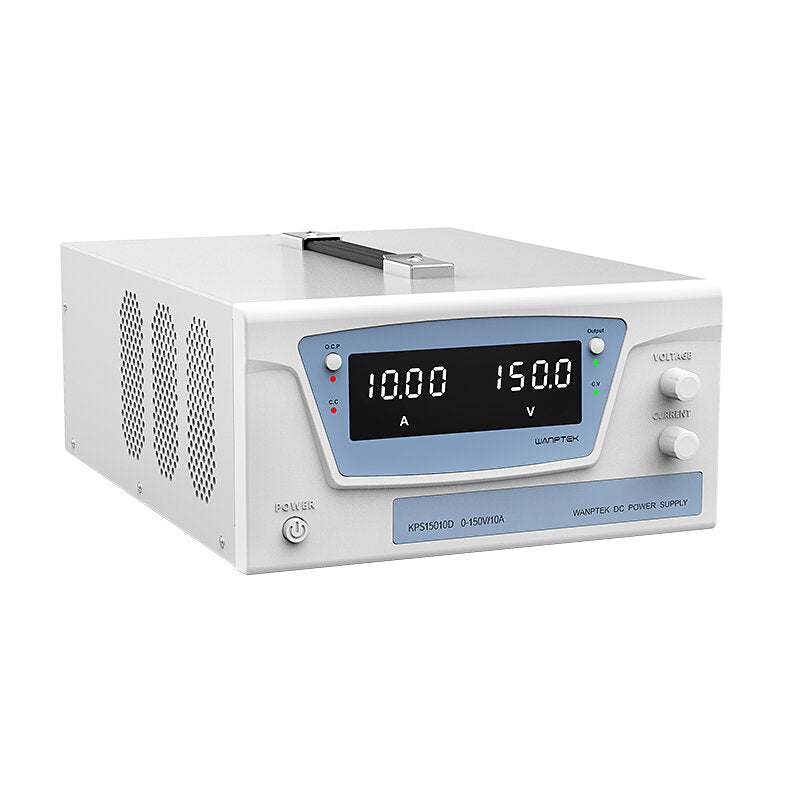

-- KPS series products are a newly developed and upgraded high-power digital display program-controlled switching DC regulated power supply.
--This product is a DC programmable power supply with exquisite appearance, small size, high performance, powerful functions and simple operation.
--It is suitable for testing in aerospace, consumer electronics, computers and peripherals, communications, semiconductors, solar energy and automotive electronics industries.
--The product can display voltage and current at the same time. Its output voltage and output current are adjusted by the encoder knob, which can be continuously adjusted between 0 and the nominal value. It has high power, large current, quik response, and fast load transient response. Low noise, easy to use and other significant advantages!
--The stability and ripple coefficient of the power supply are very good. It has various protection circuits such as short-circuit protection, over-voltage protection, over-current protection, and over-temperature protection. It can work at full load for a long time and is deeply loved by users.
Features:
Small size, light weight, suitable for work surface use and rack installation;
Exquisite appearance, flexible operation and convenient use;
High precision, internal use of original chips, stable and reliable performance;
Using high-gain amplifier circuit design, with good fast load transient response, to prevent unwanted voltage offset;
Using PWM modulation, high efficiency and more power saving;
Intelligent temperature control fan, low noise;
Built-in OVP over-voltage protection, OCP over-current protection, OPP over-load protection, OTP over-temperature protection, complete and reliable protection functions;
Voltage and current preset, OUT output function;
The product has a short-circuit protection alarm function;
Application field:
Electrolytic plating.
Product aging test.
Production line test.
Battery charging.
Electronic device testing.
Laboratory research and development test.
School teaching experiment.
Telecom Power.
Specification:
Input Voltage: AC 220V±10%; 50Hz.
Operating temperature: 0℃～40℃; Relative humidity:<80%RH.
Storage temperature: -10℃～70℃; Relative humidity:<70%RH.
Output Power: 0-Rated Power.
Output Voltage: 0-Rated Voltage.
Output Current: Rated.
Set value resolution: V:0.01V, C: 0.01A.
Resolution of readback value: V: 0.01V, C: 0.01A.
Header display: 0.56 inch white four-digit digital tube display.
Display accuracy: 0.5%±3 Charatrer.
Display resolution: voltage 0.01V, current 0.01A.
Regulated state CV:
Voltage stability: 0.5%±20mV.
Load stability: 0.5%±20mV.
Ripple voltage: ≤0.5% Vp-p.
Steady current state CC:
Current stability: 0.5%±20mA.
Load stability: 0.5%±20mA.
Ripple current: ≤0.5% Vp-p.
Temperature Coefficient: ≤100ppm/℃.
Rise Time: No load≤15ms, Fully loaded≤30ms.
Dynamic response time: ≤2ms.
Accessibility:
OUTPUT output switch, OCP short circuit protection switch.
Protective function:
OVP over voltage protection, OCP over current protection, OPP, overload protection, OTP over temperature protection.
Package included:
AC power cord X1.
Operation Manual X1
