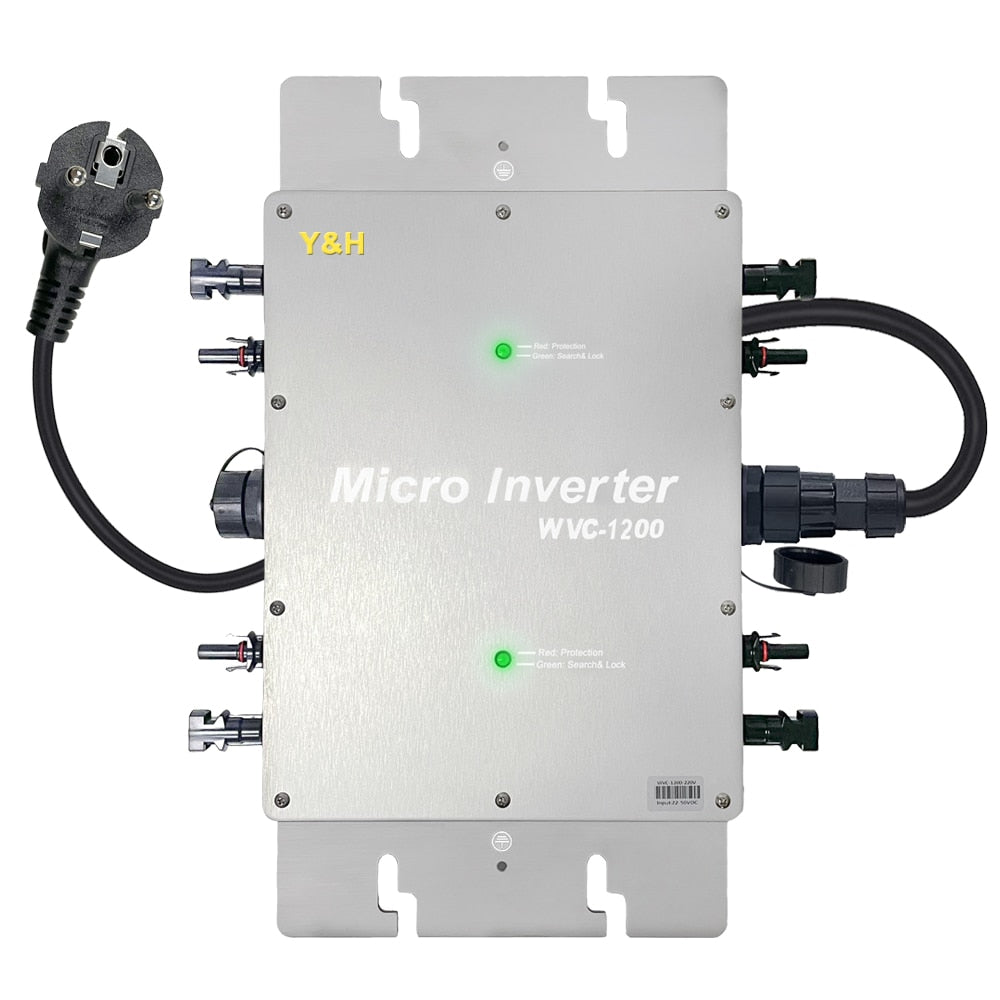

DESCRIPTION
Features:
1. Appearance waterproof IP65 design (installed at the bottom of the solar panel).
2. AC data monitoring display screen.
3. Built-in high performance Maximum Power Point Tracking (MPPT) function.
4. Suitable for 4 X 250W-300W solar panel 36V (Vmp30-39V; Voc36-50V).
5. Aluminum alloy material. Better heat dissipation.
6. Support single-phase or three-phase connection.
7. Simple wiring.
8. High precision phase detection; Over and under voltage protection; Over and under frequency protection; Islanding protection.
Specification:
Rated voltage: 220V.
Recommended PV: 4*250~300W.
Recommended PV (Voc): 34 ~ 50V DC.
MPPT Tracking Voltage: 28~40V DC.
Max input current: 52A.
Rated output current: 5A.
Maximum units per branch: 5 units.
Frequency: Automatic switch 50/60Hz.
Ambient temperature: -40℃ to +65℃.
Dimensions: 370mm × 300mm × 41.6mm.
Weight: 4kg.
Cooling: Self-cooling.
