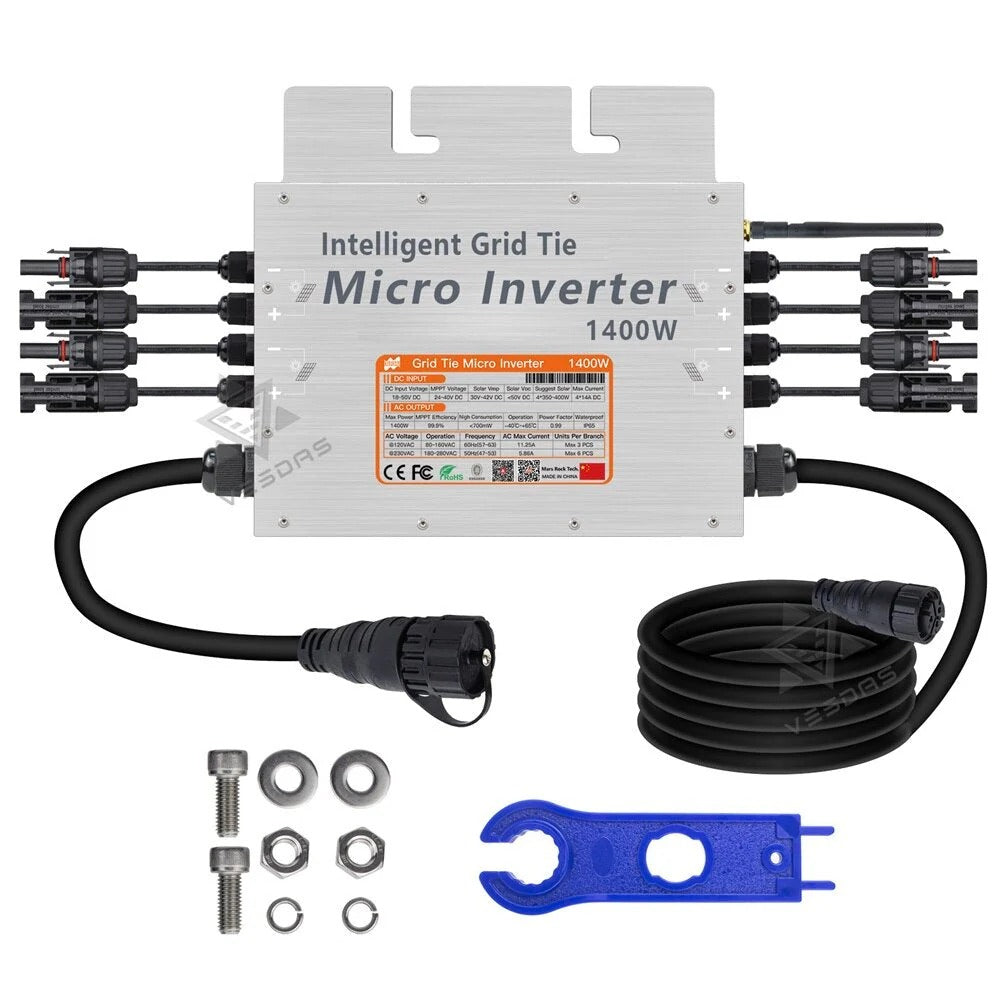

DESCRIPTION
Output Current: Max 4*14A
Output Frequency: 50HZ 60HZ
Output Power: >1000KW
Output Type: single
Weight: 2.5kg
Size: 250mm x 230mm x 38mm
Power Factor: >0.99
Total Harmonic Distortion: THD <5%
1.Single unit connects to one PV module
2.Maximum 1400W AC output power
3.Single-phase output, Flexible 3-phase PV systems
4. 2.4G wireless communication and monitoring
5.Up to 6 units (230V) per branch
6.Customizable various input (DC, PV) voltage range
7.Integrated AC bus cable, Ready-To-Use
8.Low cost, Easy installation
Input Data(DC,PV):
Number of Input MC4 Connector:4 set
MPPT Voltage Range:24V-40V
Operation Voltage Range:18V-50V
Maximum Input Voltage:50V
Startup Voltage:18V
Maximum Input Power:4*350W
Maximum Input Current:4*14A
Output Data(AC):
Single-Phase Grid Type:120V ; 230V
Rated Output Power:1350W
Maximum Output Power:1400W
Nominal Output Current:@120VAC: 11.25A / @230VAC: 5.86A
Nominal Output Voltage:120VAC / 230VAC
Default Output Voltage Range:@120VAC: 80V-160V / @230VAC: 180V-280V
Nominal Output Frequency:50Hz / 60Hz
Default Output Frequency Range:@50Hz: 47.5Hz-52.5Hz / @60Hz: 57.5Hz-62.5Hz
Power Factor:>0.99
Total Harmonic Distortion:THD <5%
Maximum Units per Branch:@120VAC: 3 units / @230VAC: 6 units
Efficiency:
Peak Efficiency:95%
CEC Weighted Efficiency:@120VAC: 92.5% / @230VAC: 93.5%
Nominal MPPT Efficiency:99.9%
Night Power Consumption:<700mW
Mechanical Data:Operating Ambient Temperature Range:-40°C to +65°C
Storage Temperature Range:-40°C to +85°C
Dimensions (W x H x D):250mm x 230mm x 38mm (not include connectors and cable)
Weight:2.5kg
Max Current of AC Bus Cable:40A
Waterproof Grade:IP65
Cooling Mode:Natural Convection - No Fans
Other Features:
Communication(Inverter to DataBox):2.4G Wireless( please buy it seperately)
Transformer Design:High Frequency Transformers, Galvanically Isolated
Integrated Ground:Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions:Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.
