Specification:

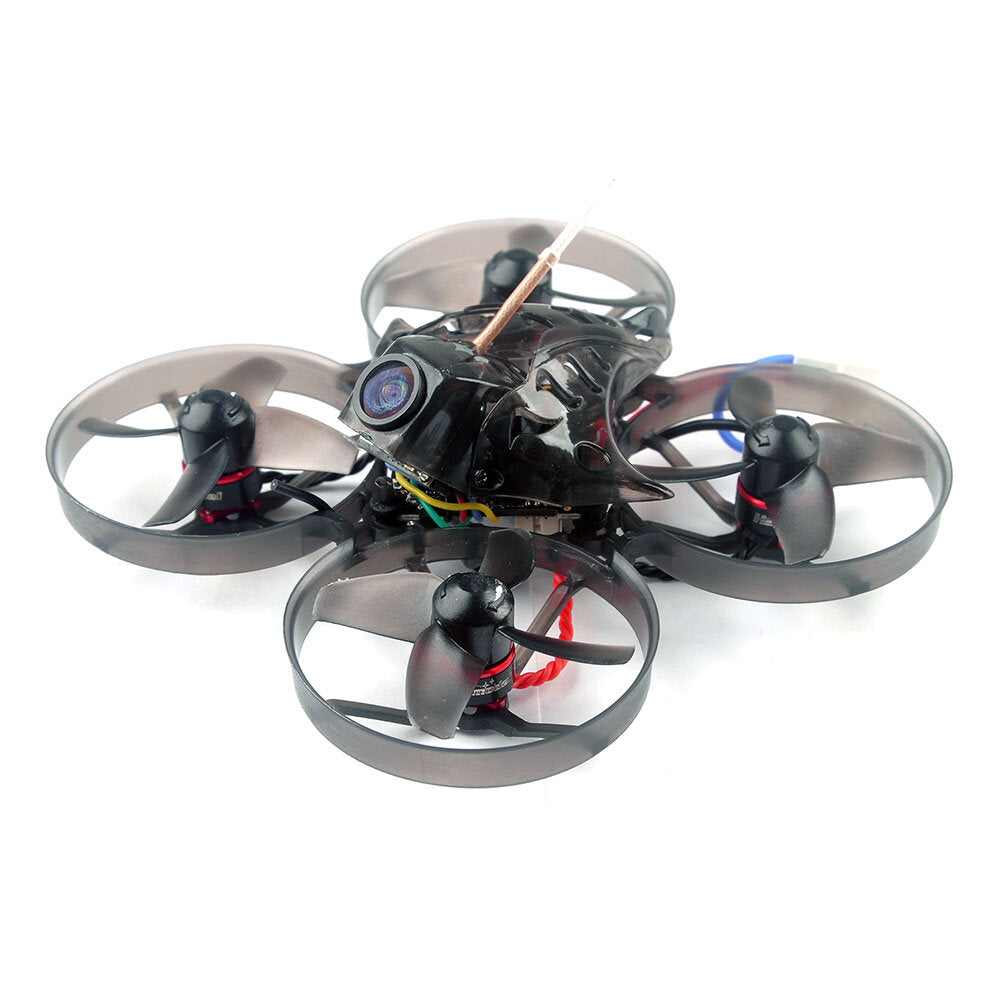

Item Name: 75mm Wheelbase 2S Brushless Whoop FPV Racing Drone;
Wheelbase: 75mm;
Version: Basic Version / Standard Version ( Optional);
- The diffirence of them are the package charger;
Basic Version: USB Charger;
Standard Version: 6-way Charger;
Size: 98mm*98mm*36mm;
Weight: 25.9g (without battery);
Flying weight: 40g (with Original 250mah lipo battery x2 );
Max Take Off Weight: about 44g.
Crazybee F3 Pro Flight Controller -
Item Name: Crazybee F3 Pro FC;
MCU: STM32F303CCT6 (72MHZ, 256K FLASH);
Sensor: MPU6000 or ICM20689 or BMI270 (SPI connection);
Board size: 28.5 * 28.5MM;
Power supply: 1-2S battery input (DC 3.5-8.7V);
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready;
Built-in Receiver ( Diffirent version having diffirent receiver);
Built-in Betaflight OSD(SPI Control);
Built-in Current meter Max 28A;
Current meter scale set to 1175;
Built-in 5V 1A BEC with LC filter;
Built-in voltage detection;
BLHELI_S pass-through Ready;
Heading LED Ready;
Firmware:
(Frsky version) CRAZYBEEF3 PRO FR Firmware target: CrazybeeF3FR;
(Flysky version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS;
(DSM2/DSMX version) CRAZYBEEF3 PRO Firmware target: CrazybeeF3DX;
(Frsky EU-LBT version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS.
Onboard 5A 4 In 1 ESC -
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v);
MCU upgraded to EFM8BB21;
Current: 5A continuous peak 6A (3 seconds);
Support BLHeliSuite programmable;
Factory firmware: S_H_50_REV16_7;
Default protocol: DSHOT600.
