DESCRIPTION
Features:
- It supports IEEE 802.3af/at standard, automatically detects and identifies power receiving equipment (PD) conforming to IEEE 802.3af standard and supplies power to it.
- The output power of the built-in power supply can reach 83w, and the power of single port Poe can reach 30W.
- It supports IEEE 802.3x full duplex flow control and backpressure half duplex flow control.

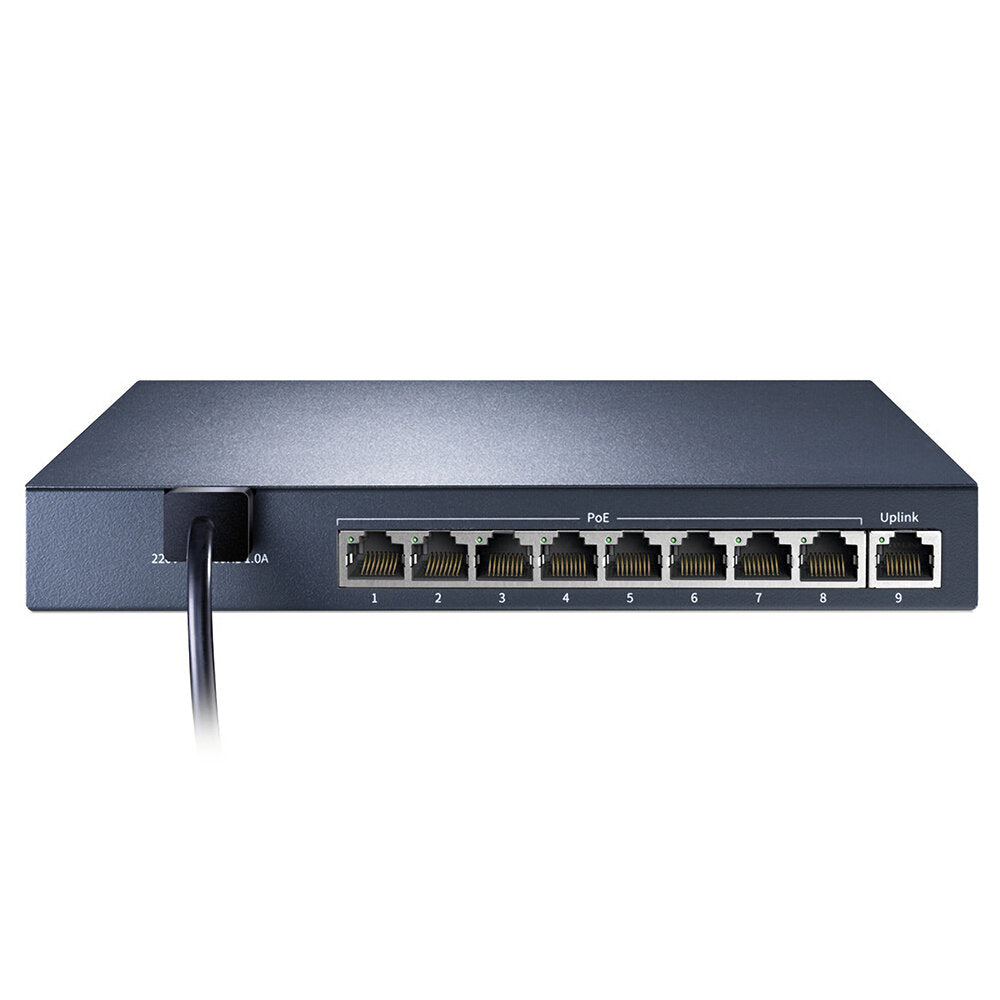

- Provide 9 * 10 / 100M adaptive RJ45 ports, including 8 * Poe ports and 1 * uplink port.
- Each port supports MDI / mdix automatic turnover and self negotiation.
- Plug and play, no configuration, simple and convenient.
Specifications:
Network standards:
IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE802.3at
Ports;
9 * 10 / 100Mbps RJ45 port, among which 1-8 ports support Poe function;
Indicator light:
Each device has a power indicator;
Each port has a Link / Act indicator;
Network media:
10Base-T: unshielded twisted pair of Category 3, 4 and 5 (≤ 100m);
100Base-tx: unshielded twisted pair of category 5 and above (≤ 100m);
Performance: Store and forward;
External dimension（L x W x H）: 216*131*30mm;
Input power supply: Built in power supply, maximum output power 83W;
Usage environment:
Working temperature: 0 ℃～ 40 ℃;
Storage temperature: - 40 ℃ ~ 70 ℃;
Working humidity: 10% ~ 90% RH, non condensing;
Storage humidity: 5% ~ 90% RH, non condensing;
Package Includes:
1 * Switch;
1 * Foot pad;
1 * Power adapter;
1 * Installation manual
