DESCRIPTION
Features :
Upgrade Functions for KG-UV9D Plus;
1. UHF/VHF or VHF/UHF Cross-Band Repeater .
2. Completely turn off display screen background light .
3. Completely trun off flickering indicator light .
Same Functions as KG-UV9D.
1. Duplex Work Mode.
2. Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously).
3. Dual Receiving.
4. RX on the same/different bands of A&B areas simultaneously.
5. Large Colorful Screen.
6. Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency (Frequency Mode, Self-definition Scanned Frequency Range), Channel Groups Scanning.
7. Memory Channels 999.
8. Output Power VHF H: 5W, M: 2W, L: 1W; UHF H: 4W, M: 2W, L: 1W.
9. QT/DQT Encoding/Decoding, QT/DQT Scan.
10. Non-Standard CTCSS can be set arbitrarily.
11. VOXs.
12. Multi Definition for Sidekeys.
13. Amplitude-frequency PTT settings.
14. Incoming Message Display Caller ID display.
15. DTMF Encoding&Decoding.
16. Channel groups scanning.
17. All Calls,Group Calls And Selective Calls.
18. SOS Function.
19. Priority Scan Function.
20. Remote Alarm.
21. Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz).
22. Voice Guide: Chinese/English.
23. Chinese/English Screen Display.
24. English Channel Name Edit.
25. Bright Flashlight illumination.
26. Single-Tone Pulse Frequency: 2100Hz/ 1750Hz/1000Hz/1450Hz (Signalling for activating repeater).
27. Reverse Frequency.
28. Stopwatch.
Specification :

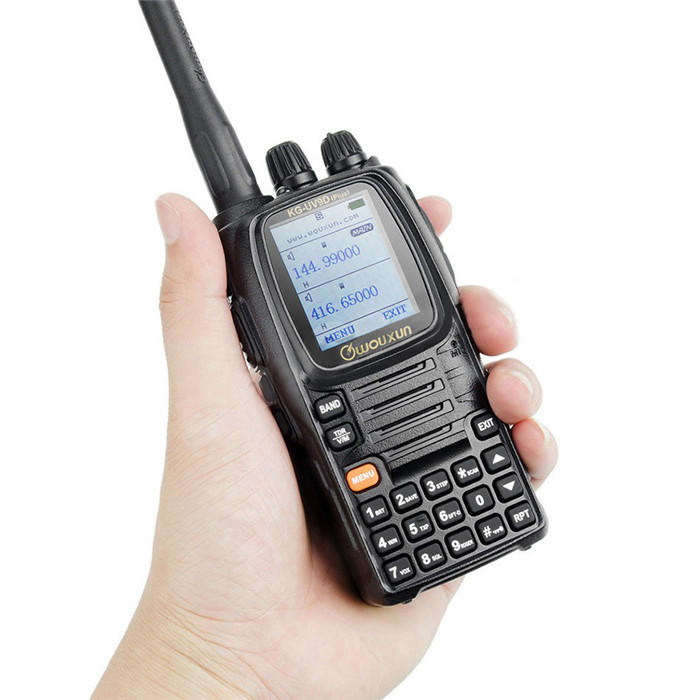

Model: KG-UV9D(Plus);
Colour: Black;
Li-ion Battery capacity: 2000mAh;
Mic/Speaker/Programming port: 2 pin Kenwoods plug type;
Antenna type: SMA-F;
Frequency Range: Suitable for different countries or areas;
1 TX: 136-174MHZ(FM) ;
400-512MHZ(FM) ;
2 RX: 76-108MHZ(FM) ;
108-136MHZ(Air ground) ;
136-180MHZ(FM) ;
230-250MHZ(FM) ;
350-400MHZ(FM) ;
400-512MHZ(FM) ;
700-985MHZ(FM) ;
Step: 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz;
Channel Number: 999;
Work Mode: F2D/F3E;
Operating Temperature: -20°C-40°C;
Antenna Resistance: 50ohm;
Voltage: 7.4VDC;
Weight of two way radio (Include battery and antenna): 9.23oz(261g);
Size of two way radio (Not include antenna): 4.9 x 2.4 x 1.33inch (12.45x6.1x3.39cm);
Receiving Wide bandwidth Narrow bandwith;
Adjacent Channel: ≤70dB ≤60dB;
Inter Modulation: ≤65dB ≤60dB;
Spurious Response: ≤70dB ≤70dB;
Audio Response: +1-3dB;
(0.3-3KHz) +1-0.3dB;
(0.3-2.55KHz);
Signal Noise Ratio: ≥45dB ≥40dB;
Audio Distortion: ≤5%;
Audio power: Transceiver≤500mW;
Sensitivity 108-136MHz(AM)-106dbM SINAD 13dB;
136-180MHz(AM)-119dbM SINAD 13dB;
230-250MHz(AM)-116dbM SINAD 13dB;
350-400MHz(AM)-119dbM SINAD 13dB;
400-512MHz(AM)-119dbM SINAD 13dB;
700-985MHz(AM)-96dbM SINAD 13dB;
Transmitter: Wide bandwidth Narrow bandwidth;
Type of Modulation: 16K F3E 11K F3E;
Adjacent Channel Power: ≥70dB ≥60dB;
Spurious: ≥60dB ≥60dB;
Audio Response:+1-3dB;
(0.3-3KHz) +1-3dB;
0.3-2.55KHz);
Max Frequency Deviation: ±5KHz ±2.5KHz;
Frequency Stability: ±2.5ppm;
Audio Distortion: ≤5%;
Output Power:
UHF H: 4W, M: 2W, L: 1W;
VHF H: 5W, M: 2W, L: 1W;
PC software programmable:Yes;
Package includeds :
1 x KG-UV9D Plus Two-way Radio;
1 x 2000mAh Li-ion Battery Pack;
1 x High Gain Antanna for All Band;
1 x Dual Band Stubby Antenna;
1 x AC Adapter (EU / US Plug for Optional~) (Also come with an adapter according to your country~);
1 x Car Charger Cable;
1 x Belt Clip;
1 x Wrist Strap;
1 x English User Manual;
