DESCRIPTION
Key features:

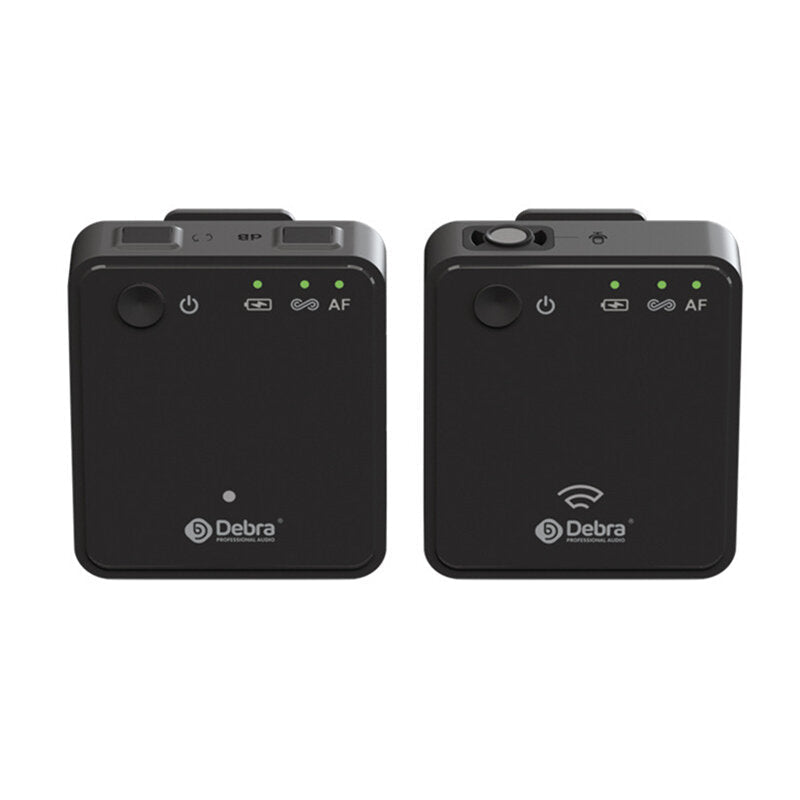

-Transmitter operates as a clip-on microphone or beltpack for a lavalier/headset microphone.
-Ultra-compact form-factor – transmitter and receiver weigh a minuscule 31g each.
-Series D 2.4GHz digital wireless transmission with encryption delivers crystal-clear audio under any conditions and excels in dense Wi-Fi and Bluetooth environments (shopping malls, conventions, hotels etc).
-Up to 100m range (line-of-sight), optimised for short-range operation in congested RF environments.
-In-built rechargeable batteries that last up to 7 hours, charged via USB-C.
-Super easy to use – transmitter and receiver auto-pair in under three seconds.
-3-stage output pad (0dB, -12dB and -24dB) and battery saver mode.
-Use up to eight systems in one location.
System Specifications:
Transmission frequency band:2400MHz~2483.5MHz;
Audio frequency response:100Hz~16KHz+3dB;
Dynamic range:93dB(Circuit performance);
Signal to noise rayio:93dB(Circuit performance);
Maximum input voltage:97dB SPL(Built-in microphone);
Pairing type:Automatic;
Effective Working Distance:50~60m(there is block);
100m(in open space);
Working temperature:-5℃ to + 50 ℃;
Receiver Specifications:
Transmission frequency band:2400MHz~2483.5MHz;
Transmission type:frequency hopping/digital FSK;
Receiving sensitivity:-86dBm;
Antenna method:Built-in F type antenna;
Display mode:multi-function LED display mode;
Power requirements:built-in lithium battery,standard USB 5V charging;
via TYPE-C interface;
Battery life>7 hours;
Output connector:3.5mm TRS;
Working temperature:-5℃ to + 50 ℃;
Dimensions:50mm*44.5mm*15mm;
Weight:35g;
Transmitter Specifications:
Transmission frequency band:2400MHz~2483.5MHz;
Modulation type：frequency hopping/digital FSK;
Transmit power:10dBm;
Antenna method:Built-in F type antenna;
Microphone pickup method：omnidirectional （built-in microphone and
External lavalier）;
Display mode:multi-function LED display mode;
Power requirements:built-in lithium battery,standard USB 5V charging via TYPE-C interface;
Battery life>7 hours;
Output connector:3.5mm TRS;
Working temperature:-5℃ to + 50 ℃;
Dimensions:50mm*44.5mm*15mm;
Weight:35g;
Package Contents:
1 * Receiver;
1 * Transmitter;
1 * 3.5mm TRS-TRRS Audio Cable;
1 * 3.5mm TRS-TRS Audio Cable;
1 * Charging Cable;
1 * Wind Muff;
1 * User Manual
