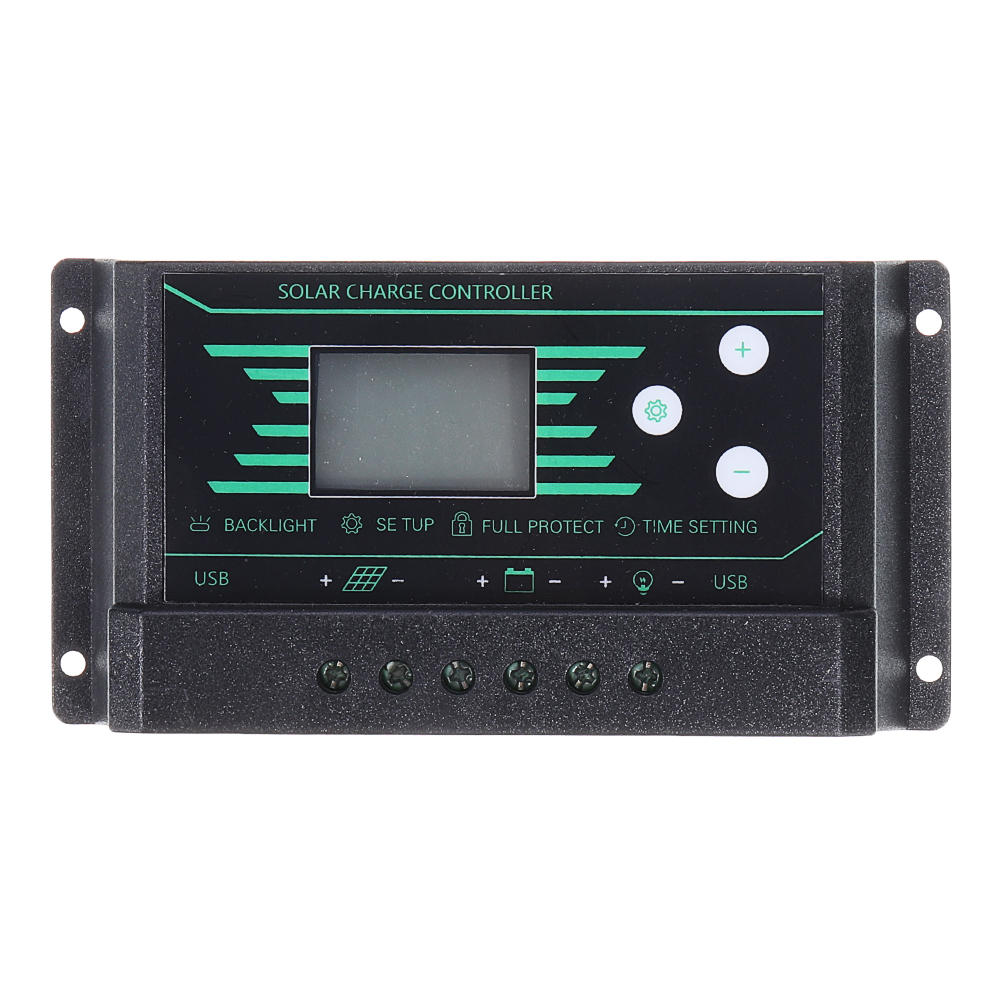

DESCRIPTION
Feature:
Build-in industrial micro controller.
Fully 3-stage PWM charge management.
Build-in short-circuit protection,open-circuit.
can be adjusted, with power off memory function.
Screen with backlight, even more high-grade.
Large screen LCD display, charge and discharge parameter.
Dual USB output, the maximum current of 2.5A, to support mobile phone charging protection,reverse protection, over-load protection Reverse current protection, low heat production.
Battery;Working mode:
USB output: Dual USB output 5V/2.5A(Max).
battery type: Lead Acid Batteries, AGM/Open/GEL battery;
Load mode: Three working mode.
(24H)----Load turn ON 24hours(except for battery under voltage).
(1-23H)---- In nightfall, light on when solar panel voltage drop to 6V, it allows to set the running time from 1h to 23 hour according to your requirements; In daytime, light off when solar panel voltage rise to 8V. e.g set 4H, when dusk, light on, and light will turn off after 4 hours.
(0H) ----Dusk to dawn, light ON when solar panel voltage drops to 3V; In daytime, light OFF when solar panel voltage rise to 8V. Automatically turn on in dusk, turn off in dawn without manual operation.
Package included:
1XSolar controller
